NABCO MCB-1302-01 Marine Automation PCB Module

Description

Product Introduction

The NABCO MCB-1302-01 (Part Number 881 73755903) is a specialized marine-grade control circuit board engineered by Nabtesco/NABCO for shipboard main engine maneuvering systems and remote control consoles. Designed for sub-rack installation inside engine control room (ECR) cabinets, this card facilitates communication and feedback isolation between the bridge order telegraph, speed governor, and engine-side position actuators.

Built to withstand continuous vibration, ambient heat, and salty air conditions typical of machinery spaces, the MCB-1302-01 conditions command signals and conditions analog telemetry lines. By filtering out line noise and voltage transients, it protects downstream digital processing units and maintains precise engine response across all maneuvering modes.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It is 03:00 AM on a container vessel navigating a narrow pilot channel. A sudden signal fluctuation occurs between the bridge telegraph and the main engine governor rack, triggering an intermittent “Engine Control System Fault” alarm. The main engine drops out of automated remote control into local manual override. The chief engineer isolates the sub-rack card cage and identifies an unstable analog conditioning channel on the original MCB-1302-01 board. Swapping in a pre-tested surplus MCB-1302-01 card from onboard emergency spares restores full remote maneuvering control in under 15 minutes, allowing the vessel to maintain speed and pass safely through the channel.

Application Scenarios

• Marine Main Engine Control Consoles – Conditions analog handle commands and feedback signals between the bridge and ECR.
• Governor Sub-Rack Systems – Stabilizes speed setpoint signals sent to pneumatic or electro-hydraulic governor actuators.
• Engine Safety Interlock Systems – Routes critical trip and limit switch feedback into main processing logic cards.
• Auxiliary Engine Automation – Suppresses electrical noise on sensor feedback loops in heavy marine generator control panels.

Field Case Study

A marine service technician was called out to resolve chronic engine speed hunting during harbor maneuvers. Diagnostic checks revealed degraded passive components and solder joint fatigue on the original MCB-1302-01 signal card, caused by years of thermal cycling. We bench-tested a surplus PCB on a simulated rack setup, verified signal linearity and edge-connector pin continuity, and delivered the replacement to the vessel berth. The technician replaced the board, slid it into the card cage slot, and verified stable engine response immediately during sea trials.

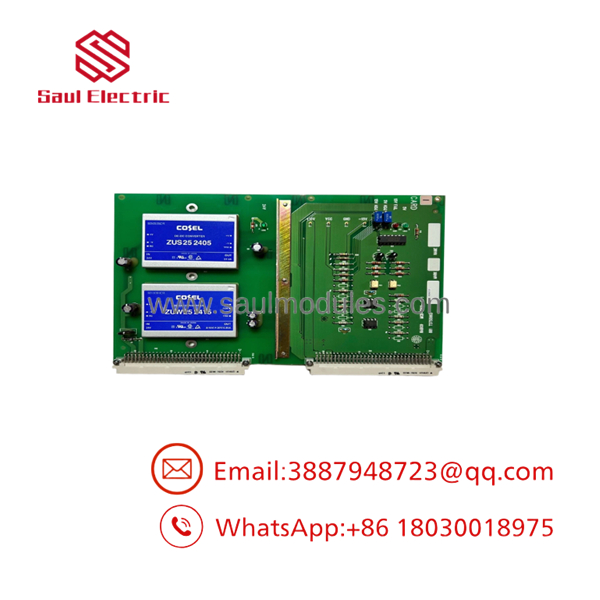

MCB-1302-01

Transparency SOP: Quality Assurance & Testing

1. Inbound Visual & Component Inspection: We inspect board traces, IC packages, and solder joints under optical magnification for heat stress or physical damage, verifying genuine NABCO silk-screen markings and part number 881 73755903.
2. Connector & Edge Pin Verification: The multi-pin DIN backplane connector is thoroughly cleaned and inspected to ensure pins are free of oxidation, bending, or mechanical wear.
3. Bench Rig Power-On Test: The card is installed in an active test rack to verify onboard power rail stability, bias voltages, and circuit logic integrity under simulated operational loads.
4. Analog Signal Linearity Check: We feed variable DC reference signals through input channels to confirm linear output scaling and proper signal conditioning without drift.
5. ESD Cleaning & Protective Packaging: Approved boards undergo non-conductive terminal cleaning before being sealed in static-shielding bags with custom foam impact protection for transport.

The Veteran’s Tech Trap Guide

• ⚠️ Confirm Full Part Number Compatibility: ❗ Always verify both the model name and the 881 73755903 part number printed on the board edge. Slight revision letters or part number variations in the 881 series can have different pinouts or internal voltage scaling.
• ❗ Never Pull Cards Under Power: Always isolate power to the sub-rack cabinet before inserting or removing the board. Hot-swapping edge-card connectors can arc high-voltage pins to sensitive signal channels, causing instant microprocessor damage on adjacent cards.
• ⚠️ Inspect Sub-Rack Guide Rails and Sockets: Salt air and humidity in marine machinery spaces cause invisible oxidation inside female backplane sockets. Clean the receiving slot with electrical contact cleaner before seating the replacement card.
• ❗ Handle with ESD Protection: When handling replacement boards on board, always wear a grounded anti-static wrist strap to protect sensitive ICs from ESD damage during installation.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary function of the NABCO PCB?

A: It functions as a signal conditioning and processing module within NABCO marine engine remote control racks, filtering and stabilizing signals between control levers, governors, and logic units.

Q: Is the board hot-swappable in an active control rack?

A: No. Power to the control rack must be completely switched off before removing or seating the board to prevent electrical shorting across backplane pins.

Q: Are replacement boards available brand new from the factory?

A: Original factory production for legacy NABCO MCB-1302 series components has been discontinued. Replacement units are available as certified New Surplus or fully bench-tested Refurbished stock.

Q: What should I check if the engine control fault persists after installing the card?

A: Verify that the card is fully seated in the sub-rack guide rails, inspect the female backplane socket for bent pins or corrosion, and confirm that upstream DC power supply boards are delivering clean, rated voltages.

Q: What warranty coverage applies to this surplus module?

A: Every unit comes backed by a full 12-month industrial replacement warranty. If any hardware defect or operational failure occurs within 365 days of purchase, an immediate unit exchange or refund is provided.

Q: Why choose a replacement board over a full control system retrofit?

A: Replacing the individual PCB takes less than 15 minutes and avoids the massive capital expense, rewiring, and extended vessel downtime required for a complete maneuvering system upgrade.
