Description
Product Introduction
The NABCO MC-507-01A is a heavy-duty microcomputer control unit engineered for NABCO automatic sliding door operator systems. Built to serve as the main processing brain inside the header panel, this module evaluates incoming triggers from motion sensors, safety photocells, key switches, and emergency egress systems to dynamically control motor torque and dynamic braking.
Designed as an upgraded platform within the MC-500 series, the MC-507-01A incorporates enhanced microprocessing capability to deliver precise low-speed creep zoning, smooth acceleration profiles, and sensitive obstruction detection. This hardware-level protection prevents motor burnout during physical blockages, keeping high-traffic commercial entryways running reliably without continuous manual recalibration.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | NABCO (Nabtesco Corporation) |
| Part Number | MC-507-01A |
| Primary Voltage | 100V AC (±10%), 50/60 Hz |
| Control Logic | 8-Bit Microcomputer Processor Circuitry |
| Drive Output | PWM Motor Drive Signal / Braking Relay Control |
| Supported Inputs | Motion Radar, Safety Photocell, Key Switch, Fire Alarm Trip |
| Safety Features | Instant Auto-Reverse on Resistance, Overcurrent Thermal Protection |
| Adjustable Trimmers | Open/Close Speed, Creep Range, Hold-Open Delay, Brake Sensitivity |
| Connector Interface | Multi-Pin Quick-Disconnect Terminal Block / Wiring Harness |
| Operating Temp Range | -10°C to +50°C (14°F to 122°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 5:15 PM on a rainy Friday at a busy regional transit station. The main entrance sliding door locks up mid-travel after a localized utility power spike, leaving the door completely unpowered in an open state. Wind and rain are blowing into the concourse, and security wants to lock down the area. Service contractors claim parts are obsolete and quote an $8,500 complete header retrofit with a 3-week lead time. Swapping in a drop-in MC-507-01A surplus unit gets the automated entryway re-commissioned in under 25 minutes, avoiding thousands in emergency security and heating costs.
Application Scenarios
- High-Traffic Transit Terminals – Concourse & Platform Access – Manages continuous high-frequency opening cycles while maintaining consistent dynamic braking points.
- Healthcare & Hospital Entrances – Emergency Room & Main Lobbies – Delivers smooth, whisper-quiet motion profiles that prevent draft surges in climate-controlled spaces.
- Commercial Retail Complexes – Main Storefront Doors – Handles heavy daily pedestrian traffic without calibration drift on close-speed deceleration zones.
- Corporate Office Facilities – Badge-Access Pedestrian Entrances – Processes dry-contact relay pulses from card readers for controlled 3-second cycle windows.
Field Case Study
A facility engineer at an office complex reported an MC-507-01A board failure caused by line noise from a heavy HVAC compressor start on the same power circuit. The board locked up, holding the sliding doors open indefinitely. We pulled a clean, bench-tested MC-507-01A board from surplus inventory, verified terminal continuity, and shipped it overnight. The field technician isolated line power, plugged in the existing wiring harness, copied the original trimmer pot positions, and restored 100% operation within 20 minutes of arriving on site.

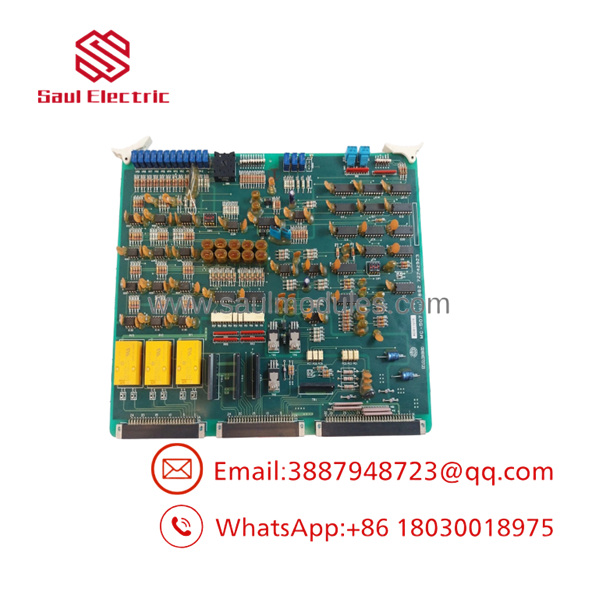

MC-507-01A

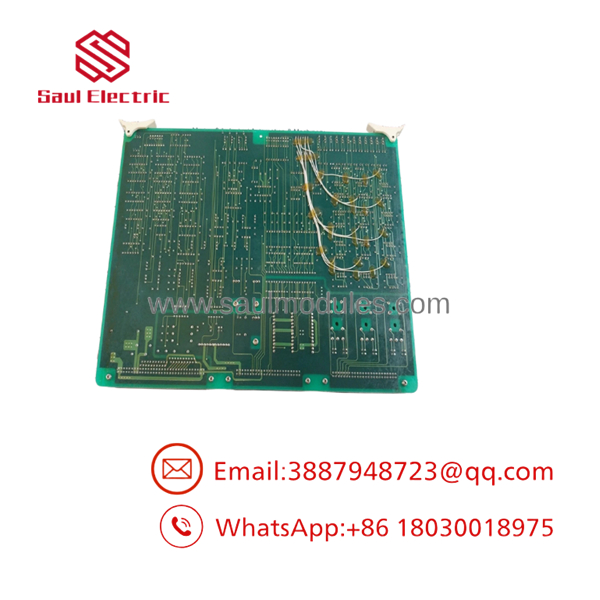

MC-507-01A
Transparency SOP: Quality Assurance & Testing
- Inbound Visual & Integrity Inspection: We inspect casing plastic for cracks, examine board solder joints for thermal stress, check edge connectors for oxidation, and verify clean OEM labeling.
- Dedicated Test Rig Mounting: The board is mounted onto an active NABCO operator test bench connected to an OEM drive motor, optical encoder, and safety photocell array.
- Full Functional Cycle Testing: We run the module through 50+ complete cycle routines, measuring open/close speed ramps, creep distances, hold-open delay timers, and dynamic brake response.
- Safety & Current Load Verification: We physically block the door stroke to verify that the auto-reversing current threshold trips instantly without overcurrent damage to output driver transistors.
- ESD Cleaning & Final Packaging: After clearing QC logs, the board receives a non-conductive terminal cleaning, is sealed inside an ESD anti-static shield bag, and is packed with custom foam inserts.
The Veteran’s Tech Trap Guide
- ⚠️ Check Supply Voltage First: ❗ Never hook up a replacement MC-507-01A without taking a multimeter reading across your line transformer secondary terminals. A failing step-down transformer delivering voltage over 115V AC will instantly fry the primary power rectification stage on your replacement board.
- ❗ Document Potentiometer Dial Positions: Take a clear photo of all adjustment trimmers (speed, braking zone, hold time, creep range) on your old module before unmounting it. Dialing those baseline settings into the replacement board saves massive ladder time during initial startup.
- ⚠️ Mind the DIP Switch and Jumper Configurations: The MC-507-01A board uses onboard jumpers/switches to configure sensor logic (Normally Open vs. Normally Closed). Setting these incorrectly will cause the door to lock permanently open or behave in reverse.
- ❗ Inspect Harness Terminal Tightness: Vibration over years of door motion can loosen terminal screws or stretch connector pins. Clean harness sockets with electrical contact cleaner and ensure secure terminal engagement to prevent intermittent “ghosting” faults.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I replace the NABCO MC-507-01A while the system power is active?
A: No. Always isolate line power before disconnecting or seating terminal connectors. Hot-plugging live harnesses can cross high-voltage pins and destroy the onboard microprocessor.
Q: Is the MC-507-01A a drop-in replacement for older MC-504 or MC-208 modules?
A: While they share similar operational concepts, pin assignments and harness header layouts can vary across board generations. Always cross-check your header wiring schematic before applying power to an updated board model.
Q: Why does the door stay wide open after installing the replacement MC-507-01A?
A: This usually points to an active safety circuit trigger or incorrect jumper logic. Verify that safety photoelectric beams are aligned and that the card’s NC/NO safety input jumper matches your sensor’s output contact state.
Q: Are these MC-507-01A replacement modules factory-new or surplus?
A: Because factory production for the legacy MC-507 series has been phased out, our inventory consists of certified New Surplus (unused original stock) or thoroughly bench-tested Refurbished boards sourced from controlled system retrofits.
Q: What warranty coverage comes with this controller unit?
A: Every unit comes backed by our comprehensive 12-month industrial replacement warranty. Should any hardware defect or operational failure occur within 365 days, we provide an immediate unit exchange or refund.
Q: Why is buying a replacement controller far cheaper than buying a whole new operator header?
A: Replacing the controller module takes under 30 minutes and retains existing tracks, belts, motors, and glass framing. A full operator header replacement requires structural construction, expensive hardware packages, and days of operational downtime.
