Product Introduction
The NABCO TB-202-01 is a specialized industrial terminal and relay interface module designed for heavy-duty commercial automatic door systems. Engineered by Nabtesco, this board serves as the central wiring junction point inside the header profile. It isolates raw external field inputs—like safety mats, beam sensors, and key switches—from the primary microcomputer control processor.
By integrating an array of onboard electromechanical relays and discrete ribbon cable connectors, the TB-202-01 protects sensitive microprocessor logic from field-wiring voltage spikes. Its layout simplifies multi-door interlocking schemes, complex access control integrations, and emergency breakaway monitoring. Instead of replacing an entire master drive assembly when a field loop shorts out, this sacrificial interface board handles the electrical stress.
Key Technical Specifications
| Parameter | Specification |
| Model Code | TB-202-01 (PCB Markings: 727396A1 or equivalent) |
| Operating Voltage | 24V DC Logic Power |
| Relay Configuration | Multi-channel miniature electromechanical relays |
| Contact Load Rating | 24V DC, 1A / 125V AC, 0.5A resistive |
| Connector Types | Multi-pin IDC header ribbon sockets & screw terminal blocks |
| Mounting Format | Track-mount / Standoff mounting inside header box |
| Signal Isolation | Physical relay contact isolation between field and main CPU |
| Operating Temperature | 14°F to 131°F (-10°C to +55°C) |
Application Scenarios & The “Trench” Experience
The “Trench” Reality
Imagine getting called out to a high-security office complex at 4:30 PM on a Friday. An external badge reader installer accidentally landed a live 120V feed onto a 24V dry-contact trigger terminal on the entrance slider. The main door controller went dark. Instead of frying the expensive master microcomputer module, the high-voltage spike was arrested right at the TB-202-01 interface board. Swapping this sacrificial relay terminal card gets the building secured in twenty minutes flat, saving thousands in main controller replacements.
Target Applications
- Commercial Access Control Integration – Interfacing card readers, electric strikes, and fire alarm override signals directly into automatic sliding door headers.
- Multi-Door Interlock Systems (Air Locks) – Cleanroom and hospital vestibules requiring sequenced relay logic between inner and outer entrance doors.
- High-Traffic Overhead Sliding Operators – Anchoring multi-beam safety arrays and side-screen presence sensors without cluttering the main driver board.
Field Replacement Case
A transit terminal experienced intermittent door lock failures on their primary platform access gates during peak commuting hours. Diagnostic traces pinpointed a pitted, worn-out relay contact on an aging junction card. Pulling the degraded board and dropping in a fully tested TB-202-01 restored clean contact closure signals across all eight safety zones, preventing unintended gate shutdowns.

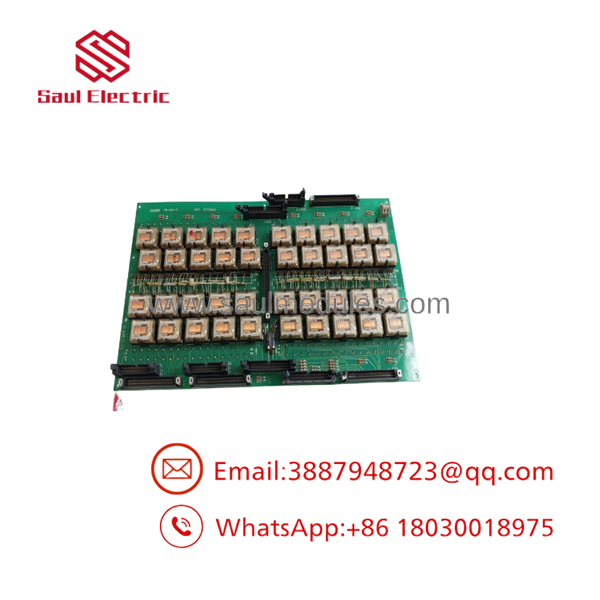

TB-202-01

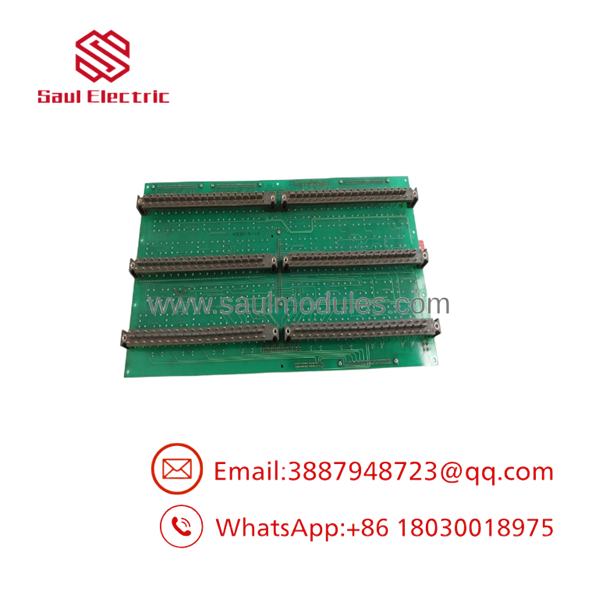

TB-202-01
Transparency SOP: Quality Assurance & Testing
We don’t just ship pulls out of old headers; we thoroughly test them on live test benches:
- Inbound Visual Inspection: Trace check for copper lifting, burn marks, blown trace diodes, and mechanical cracks across all multi-pin IDC headers.
- Relay Coil Resistance Check: Ohmic testing of every individual relay coil on the board to identify shorted or open windings before applying power.
- Powered Handshake Test: 24V DC power application on test jigs to cycle every relay on the card and verify LED status indicators (where equipped).
- Contact Resistance Diagnostic: Measuring contact resistance across open/closed pins under load to ensure low-impedance signal paths (below 100 mΩ).
- Anti-Static Handling: Final cleaning using zero-residue solvent followed by vacuum sealing in static-shielding ESD packaging.
The Veteran’s Tech Trap Guide
⚠️ Trap 1: Ribbon Cable Pin Alignment
When snapping multi-pin IDC ribbon cables back into the TB-202-01 headers, verify keyway orientation carefully. Forcing a ribbon connector upside down or off by one row of pins can apply 24V bus power straight to ground, destroying the board immediately.
❗ Trap 2: Over-fusing and Field Relay Chattering
If an external strike or magnetic lock draws excessive current through these onboard miniature relays, the contacts will weld shut. Always use external interposing relays or freewheeling flyback diodes when switching inductive loads like heavy solenoid locks off this card.
⚠️ Trap 3: Ground Loops & Shielding
Make sure the mounting standoffs form a solid earth ground connection to the aluminum header chassis. A floating ground on this card causes induced noise on safety beam inputs, leading to doors randomly reversing mid-stroke.
Frequently Asked Questions
Q: Can I install a TB-202-01 board in place of a different TB-series model?
No. Always match suffix codes. While boards like the TB-202-01 share similar physical footprints with other Nabtesco cards, pinouts and internal trace routings differ between operator generations.
Q: Is this card hot-swappable?
To be honest, pulling this card live will damage the driver outputs on the connected master CPU. Always kill main AC power to the door operator header before unplugging ribbon cables or screw terminal blocks.
Q: What usually fails on these interface boards?
Because there are no microprocessors on the card itself, failures are almost entirely mechanical: burnt relay contacts caused by voltage surges, cracked solder joints at heavy terminal blocks, or bent ribbon header pins from rough handling during maintenance.
Q: Do I need special software or programmers after replacing this board?
No software setup is required. The TB-202-01 is a hardware interface card. Once the wiring connectors are seated properly and power is restored, signal routing occurs instantly.
Q: What warranty comes with this replacement module?
We back every tested new-surplus and refurbished TB-202-01 board with a full 12-month direct replacement warranty from our stock.
