The Parker SSD 8903-AI-00 is a high-resolution analog input option for AC890 drives where the standard I/O arrangement does not provide enough precision or feedback functionality. It adds a differential ±10 V analog channel with 15-bit-plus-sign resolution and also incorporates incremental encoder input and synthesized encoder output.
This is particularly useful when an AC890 drive must accept a precision speed reference from a CNC or motion controller while maintaining encoder-based coordination. The card is specified for AC890SD and AC890CD drives, with firmware compatibility requiring careful verification before commissioning.
Technical Specifications
| Specification | 8903-AI-00 |
|---|---|
| Option Type | High-resolution analog input and encoder option |
| Analog Resolution | 15 bits + sign |
| Analog Input Range | ±10 V |
| Analog Input Format | Differential |
| Analog Input Impedance | 100 kΩ |
| Analog Low-Pass Filter | 3 kHz |
| Encoder Input | Incremental A, B and Z |
| Maximum Encoder Pulse Rate | 250 kHz |
| Encoder Compatibility | RS422 / RS485 and specified higher-voltage encoder signals |
| Synthesized Encoder Output | Three differential digital outputs |
| Encoder Output Frequency | Up to 250 kHz per output |
| Maximum Output Current | ±100 mA per output |
| Compatible Drive Families | AC890SD and AC890CD |
| Firmware Compatibility | Version 2.5 onward / Version 3.5 onward; not compatible with Version 20.X |
Field Application & The Trench Experience
A common replacement scenario is a machine where the AC890 drive itself is still serviceable, but the original option card has developed an intermittent analog-reference or encoder-feedback problem. Replacing the entire drive can introduce unnecessary parameter migration, motor tuning, wiring changes, and production downtime.
For example, consider a CNC-controlled material handling axis using an AC890 drive. The controller sends a precision analog speed reference while the drive receives encoder feedback and passes a synthesized encoder signal onward to the control architecture. A failed 8903-AI option can interrupt that signal chain even though the main drive electronics remain functional. Installing the correct option card can restore the intended I/O architecture without changing the drive’s basic power section.
Niche applications include:
- CNC axis speed-reference control — precision ±10 V speed commands combined with incremental encoder feedback.
- Electronic line-shaft applications — encoder reference and synthesized encoder output for coordinated drive operation.
- High-resolution analog speed control — applications where the standard AC890 analog interface does not provide sufficient resolution.
- AC890 common-bus machinery — replacement of an existing I/O option while retaining the installed drive platform.

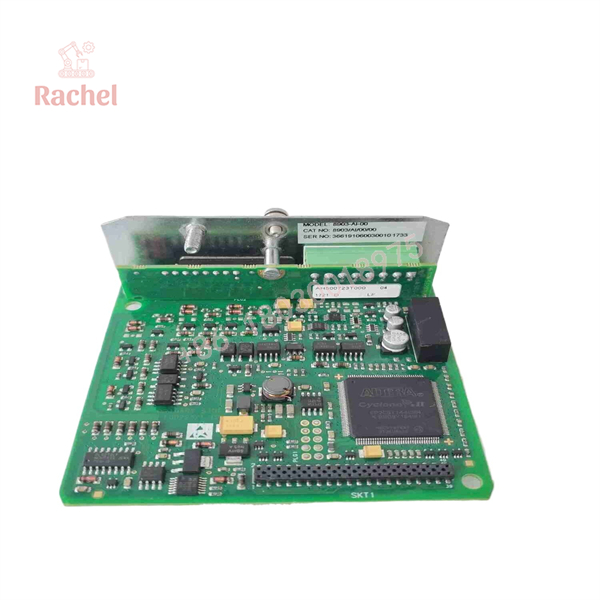

8903-AI-00

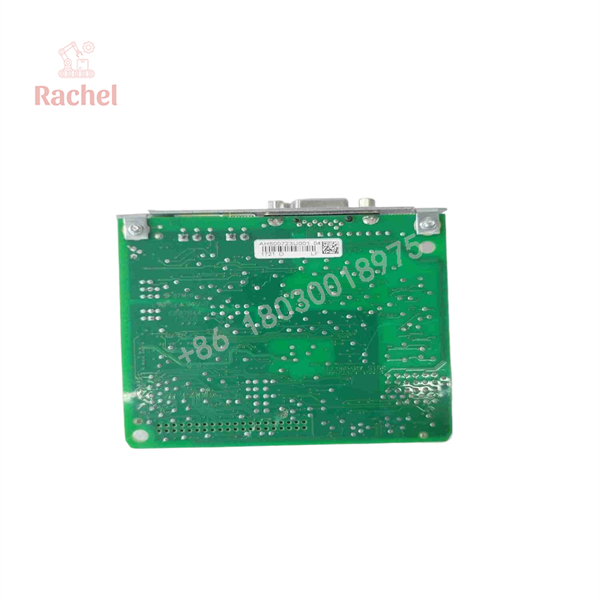

8903-AI-00
Transparency SOP: QA & Testing
For new-surplus or refurbished 8903-AI-00 inventory, a sensible receiving and QA sequence is:
1. Visual inspection
Check the PCB, connector interfaces, terminal areas, labels, mounting hardware, and visible components for corrosion, contamination, cracked solder joints, or physical damage.
2. Part-number verification
Confirm that the card is marked 8903-AI-00 and that the option corresponds to the required AC890 configuration. Do not treat visually similar AC890 option cards as interchangeable.
3. Electrical and interface testing
Where test equipment and a compatible AC890 test platform are available, verify the analog input behavior and encoder interface rather than relying solely on a visual inspection.
4. Configuration verification
Confirm the target AC890 drive family and firmware revision before installation. Parker’s documentation specifically identifies firmware compatibility requirements for the 8903/AI option.
5. Final inspection
Record the tested part number and serial information, inspect the connector condition again, and package the card with ESD protection suitable for electronic drive-control hardware.
The Veteran’s Tech Trap Guide
⚠️ Firmware is not a footnote.
Parker specifies compatibility with Version 2.5 onward and Version 3.5 onward, while the option is explicitly listed as incompatible with Version 20.X. Check the actual drive firmware before assuming a replacement card will commission normally.
⚠️ Do not confuse the AI option with the EP option.
The 8903/EP provides encoder functionality, while the 8903/AI adds the high-resolution analog input. If the application requires the additional ±10 V input, an encoder-only option is not an equivalent substitute.
⚠️ Encoder wiring deserves attention.
The encoder interface supports differential signaling and specified RS422/RS485-compatible encoders. Verify A/B/Z wiring, signal polarity, voltage levels, shielding, and termination before blaming the replacement card for a feedback fault.
PRO TIP: Record the original drive configuration before removing the old option card. A replacement operation is much easier when the existing parameter set, firmware revision, wiring arrangement, and option-card location have already been documented.
Dynamic FAQ
What is Parker 8903-AI-00?
The 8903-AI-00 is a high-resolution analog input option for Parker SSD AC890 drives. It adds a precision analog input and also provides incremental encoder input and synthesized encoder output.
What analog signal does the 8903-AI-00 accept?
The documented analog input is differential ±10 V with 15-bit-plus-sign resolution. The specified input impedance is 100 kΩ, with a 3 kHz low-pass filter.
Does the 8903-AI-00 provide encoder feedback?
Yes. The option incorporates an incremental encoder input with A, B and Z channels and supports the specified differential encoder interfaces. It also provides synthesized encoder outputs.
Which drives use the 8903-AI-00?
The option is documented for Parker SSD AC890SD Standalone Drives and AC890CD Common Bus Drives. Verify the exact drive model and installed firmware before ordering.
Is 8903-AI-00 the same as 8903/AI?
Yes. 8903-AI-00 is the not-fitted order code associated with the 8903/AI high-resolution analog input option. Factory-fitted versions use a different ordering format, so the exact part-number suffix should be checked against the drive’s original configuration.
How should New Surplus 8903-AI-00 stock be verified?
A genuine new-surplus unit should have identifiable Parker/SSD part markings and should be inspected for storage damage, corrosion, connector condition, and evidence of prior installation. For critical applications, functional testing on compatible AC890 equipment is preferable to visual inspection alone.
What warranty should I expect?
Warranty terms depend on the supplier and the specific stock condition. Before purchase, confirm whether the unit is new surplus, unused surplus, refurbished, or previously installed, and obtain the supplier’s written warranty period and return conditions.
