3. Product Introduction & Engineering Value
Finding a working drive for an older Aries-based machine often means hunting surplus stock or paying for a full retrofit. The Parker AR-04AE (also marked CP*AR-04AE-13574) is the 400 W member of the Aries series that still appears in packaging, labeling, and light assembly equipment.
It accepts standard ±10 V analog torque or velocity commands and supports incremental encoder or Heidenhain EnDat absolute feedback. The drive is compact, runs on single-phase 120/240 VAC, and was designed for straightforward OEM integration. Although discontinued by the manufacturer, tested units remain a practical drop-in solution when the original motor and mechanical system are still serviceable.
4. Technical Specifications
Maximum Shaft Power: 400 W
Continuous Current: Approximately 3 A RMS (model-dependent)
Input Power: Single-phase 120/240 VAC
Command Interface: Analog ±10 V (pulse/direction and Ethernet Powerlink options on related variants)
Motor Feedback: Incremental encoder, smart encoder, Heidenhain EnDat absolute
Series: Aries digital servo drive family
Certifications: CE (EMC & LVD), UL
Status: Discontinued by manufacturer; available as new-surplus or refurbished
Typical Weight: ~2.5 lb (1.1 kg)
5. Field Application & The “Trench” Experience
A high-speed labeling line in a Midwest packaging plant lost motion on one axis after the original Aries drive failed. The mechanical setup and motor were still good. A tested AR-04AE was installed, the ±10 V command and encoder cables were reconnected, and the axis was re-tuned in under an hour. The line returned to production the same shift with no mechanical changes and no new programming beyond restoring the original velocity loop gains.
Typical uses:
- Single-axis feeders and indexers on packaging machinery
- Light assembly and pick-and-place stations
- Labeling and coding equipment that still run original Compumotor motors

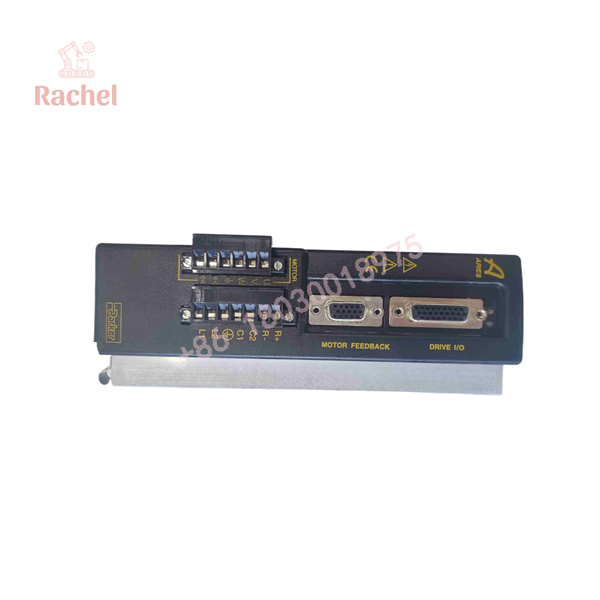

AR-04AE

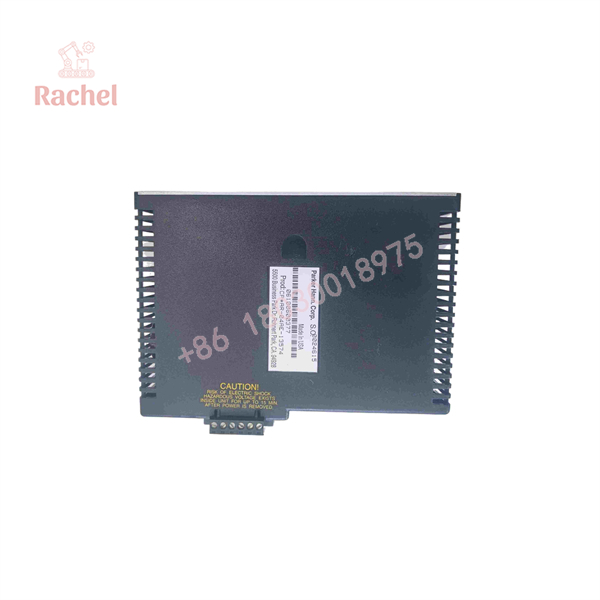

AR-04AE
6. Transparency SOP: QA & Testing
- Visual inspection of connectors, cooling path, and labeling
- Power-up on single-phase 120/240 VAC with current and voltage monitoring
- Command interface verification (±10 V analog response)
- Feedback loop test with encoder or EnDat simulator
- Full power ramp under controlled load to confirm regulation and thermal behavior
- Final configuration reset and functional sign-off before packaging
7. The Veteran’s Tech Trap Guide
⚠️ Feedback type must match. The AR-04AE supports incremental, smart encoder, and EnDat. Installing a drive configured for the wrong feedback type produces immediate following-error faults that look like a bad motor.
PRO TIP: Confirm the exact command interface before ordering. Most AR-04AE units are analog ±10 V; some related Aries models add pulse/direction or Ethernet Powerlink. Mismatched command signals will not produce motion.
⚠️ Bus voltage and single-phase supply. These drives expect clean single-phase 120/240 VAC. Brown-outs or incorrect voltage selection can trigger undervoltage trips that are easily mistaken for drive failure.
8. Dynamic FAQ
Q: Is the AR-04AE still in production?
A: No. Parker has discontinued the Aries series. Units on the market are new-surplus or refurbished.
Q: What motors does it drive?
A: Brushless servo motors compatible with the Aries series, typically those with incremental encoder or Heidenhain EnDat feedback.
Q: What is the command interface?
A: Primary interface is analog ±10 V. Related models in the series support pulse/direction or Ethernet Powerlink.
Q: What warranty applies to refurbished stock?
A: Functional testing is standard. Confirm the exact coverage period with the supplier; many offer 90-day to two-year terms on verified drives.
Q: Can it replace a higher-power Aries model?
A: Only if the continuous and peak current requirements stay within the 400 W rating. Oversizing the load will cause thermal trips or reduced performance.
Q: Does it require external braking resistors?
A: Depending on the deceleration profile and load inertia, an external regeneration resistor may be needed. Check the original machine documentation.
