PRO-FACE GP577R-TC11 HMI 10.4 Inch TFT Touch Panel

Product Introduction & Engineering Value

The GP577R-TC11 represents a generation of industrial HMIs built around dedicated operator control hardware, long before many plants moved toward modern Ethernet-based visualization platforms. It remains relevant today because many machines installed in the late 1990s and early 2000s still rely on these panels for daily production operation.

This 10.4-inch TFT touchscreen terminal belongs to the GP77R family and provides a 640 × 480 VGA display with serial communication capability. For replacement projects, the key challenge is not only finding the hardware—it is preserving the original application project, PLC communication settings, and machine interface behavior.

Technical Specifications

The official GP577R-TC11 specifications identify a 10.4-inch TFT color display, 640 × 480 resolution, AC100V input, RS-232C/RS-422 communication support, and GP77R series architecture.

Field Application & the “Trench” Experience

A production line running for more than 20 years begins showing intermittent touchscreen response issues. Operators can still view screens, but alarm acknowledgment becomes unreliable during peak operation.

The maintenance team identifies the failed terminal as a PRO-FACE GP577R-TC11. Instead of immediately replacing the entire machine control system, they verify:

• Existing GP-PRO/PB application backup
• PLC communication protocol
• Panel cutout dimensions
• AC power wiring
• Serial communication parameters

The spare HMI is installed during scheduled downtime. The PLC remains unchanged. Production resumes.

This is a common approach for legacy automation equipment where the mechanical system remains productive but the original operator interface has reached its service limit.

Typical applications include:

• Packaging machine operator stations
• CNC machine control panels
• Assembly-line visualization terminals
• Marine and transportation automation consoles
• Legacy PLC monitoring interfaces

Transparency SOP: QA & Testing

A discontinued HMI requires careful evaluation because cosmetic condition does not indicate operational health.

Inspection Procedure

1. Hardware Identification

• Confirm model label: GP577R-TC11
• Verify PRO-FACE branding
• Record serial number and manufacturing information
• Compare physical dimensions with the existing panel

2. Display Evaluation

• Power on the HMI
• Check LCD brightness
• Inspect for dead pixels
• Verify touchscreen accuracy
• Check backlight condition

3. Interface Testing

• Test RS-232C communication
• Test RS-422 communication where applicable
• Verify programming connection
• Confirm external device communication

4. Application Verification

• Load the original project if available
• Confirm screen navigation
• Test alarms and data display
• Verify PLC communication

PRO-FACE lists GP577R-TC11 as discontinued and provides replacement paths including GP4000 and SP5000 series alternatives. Replacement selection depends on power supply, panel cutout, and touch-function requirements.

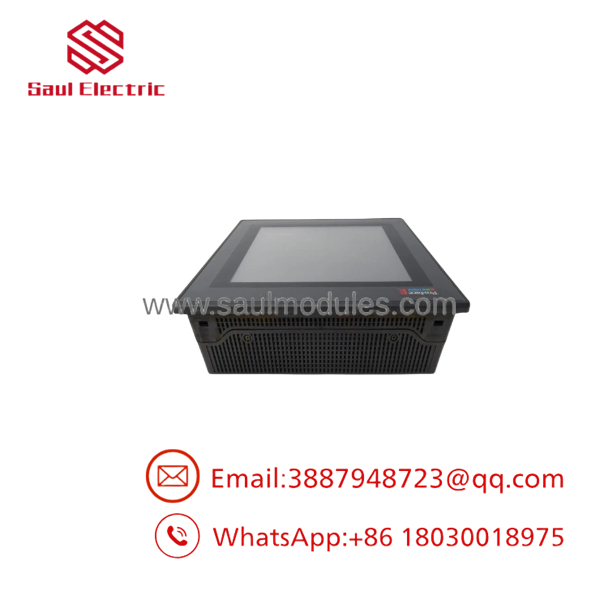

GP577R-TC11

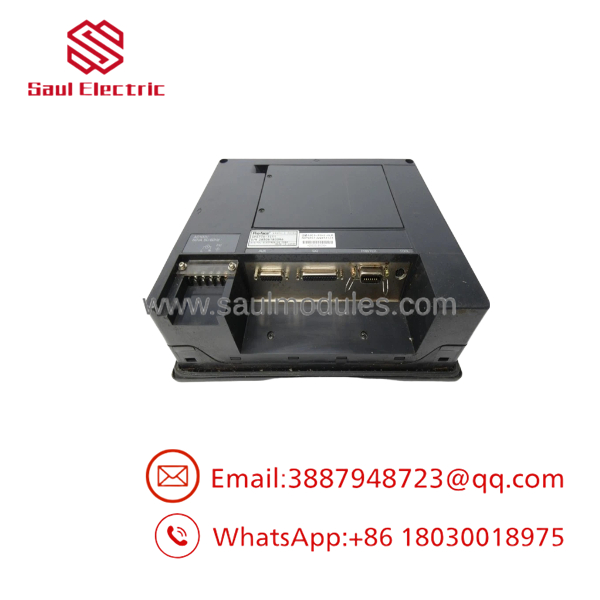

GP577R-TC11

The Veteran’s Tech Trap Guide

⚠️ Do not assume a newer PRO-FACE HMI is a drop-in replacement.

The uses an older hardware architecture. Modern replacement models may require:

• Project conversion
• Different software versions
• Power supply changes
• Panel adapter plates

⚠️ Watch the power supply difference.

The is an AC-powered model. Some replacement options require conversion to DC power. Verify the electrical design before installation.

⚠️ PRO TIP: Recover the project file before removing the old HMI.

Without the original screen project, a hardware replacement may become a complete HMI redesign task.

⚠️ Do not ignore touch technology differences.

Some replacement models may not support the same touch functions, including two-point touch behavior.

⚠️ A working display does not mean the HMI is healthy.

Check:

• Touch accuracy
• Communication ports
• Memory retention
• Backlight condition
• Internal storage

Dynamic FAQ

Q1. What is the PRO-FACE ?

The PRO-FACE is a 10.4-inch GP77R Series programmable HMI with TFT color LCD display and touchscreen operation.

Q2. Is the still manufactured?

No. PRO-FACE lists the as discontinued, with end of sales on December 25, 2003 and end of repair support on March 30, 2009.

Q3. What is the display resolution?

The display resolution is:

640 × 480 pixels (VGA)

with a 10.4-inch TFT color LCD.

Q4. What power supply does require?

The uses:

AC100V 50/60Hz

with an allowable range of approximately AC85V to AC132V.

Q5. Can be replaced by a newer PRO-FACE HMI?

Yes, but it is not always a direct swap. PRO-FACE provides replacement options including GP4000 and SP5000 series models. Panel dimensions, power supply, and touch functions must be reviewed before migration.

Q6. What software was used to program ?

The GP77R generation was designed around PRO-FACE GP-PRO/PB development software. Existing project files should be preserved before replacement.

Q7. Is New Surplus available?

Because the model has been discontinued for many years, availability depends on industrial spare-part inventory. New old stock, used tested units, and refurbished units may appear through automation spare suppliers.

Q8. How should buyers verify a replacement ?

Request:

• Actual HMI photographs
• Model label image
• Power-on test results
• Touchscreen test confirmation
• Communication test record
• Warranty terms

For discontinued HMIs, verification of actual hardware condition is more important than catalog description alone.
