Core Product Summary
The Bosch Rexroth Indramat DKC10.3-018-3-MGP-01VRS is a digital servo drive controller from the DKC series, belonging to the EcoDrive Cs platform. It provides controlled three-phase power to compatible servo motors in single-axis or multi-axis configurations.
The unit is rated for 18 A continuous current with a DC-bus nominal voltage of 300 V. It carries multi-interface general-purpose firmware version 01 (MGP-01VRS). The controller is designed for compact cabinet installation and supports optional add-on cards for expanded functionality.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Digital servo drive controller (EcoDrive Cs) |
| Manufacturer | Bosch Rexroth Indramat |
| Model | DKC10.3-018-3-MGP-01VRS |
| Material Number | R911295612 |
| Series / Line | DKC 10 |
| Design Version | 3 |
| Rated Current | 18 A |
| DC-Bus Nominal Voltage | 300 V |
| Firmware | MGP-01VRS (Multi-interface, General Purpose, Version 01) |
| Approx. Dimensions | 70 × 182 × 170 mm |
| Approx. Weight | 1.8–2.1 kg |
| Typical Motor Class | Up to approx. 750 W |
| Ambient Temperature (optimal) | Below 45 °C |
| Installation Height (optimal) | Below 1000 m (max. 2000 m) |
Engineering Selection Highlights
- Compact EcoDrive Cs drive controller for single- or multi-axis servo applications.
- 18 A continuous current rating with 300 V DC bus.
- Multi-interface general-purpose firmware (MGP-01VRS) preloaded.
- Supports analog, RS232/485 and option-card interfaces.
- Designed for cabinet mounting in industrial automation systems.
- Compatible with the EcoDrive Cs family of motors and accessories.
- Legacy product typically supplied as repaired, refurbished or surplus units.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Platform | EcoDrive Cs | Part of the compact Indramat EcoDrive Cs system |
| Firmware | MGP-01VRS (included in type code) | Multi-interface, general-purpose functionality |
| Interfaces | Analog, RS232/485, option cards | Expandable via compatible add-on cards |
| Motors | Compatible EcoDrive Cs / Indramat servo motors | Typically matched to motors in the ~750 W class |
| Supply | Appropriate AC supply for 300 V DC bus | Confirm mains voltage and connection type |
| Cooling & Installation | Cabinet mounting, IP20 environment | Observe temperature and height limits |
| Higher-Level Control | Via multi-interface or option cards | Parameterisation required for correct operation |
Dimensions, Mounting & Connection Notes
The DKC10.3-018-3-MGP-01VRS is a compact drive controller with approximate dimensions of 70 mm width × 182 mm height × 170 mm depth and a weight of approximately 1.8–2.1 kg. It is intended for vertical cabinet mounting. Power, motor, control and interface connections follow the standard EcoDrive Cs layout. Adequate ventilation and clearance must be provided. Optimal ambient temperature is below 45 °C; installation height should preferably remain below 1000 m (maximum 2000 m).
Detailed Product Overview
The Bosch Rexroth Indramat DKC10.3-018-3-MGP-01VRS is a digital AC servo drive controller from the DKC series within the EcoDrive Cs platform. The type designation is structured as follows:
- DKC = Drive controller family
- 10 = Series / line number
- .3 = Design version 3
- 018 = 18 A rated current
- 3 = 300 V DC-bus class
- MGP = Multi-interface, General Purpose firmware
- 01 = Firmware version 01
- VRS = Standard release status
The controller generates a regulated three-phase output for permanent-magnet synchronous servo motors. Continuous current rating is 18 A and the internal DC bus is rated at a nominal 300 V. The unit is supplied with multi-interface general-purpose firmware (MGP-01VRS), which supports analog and serial interfaces as well as optional add-on cards for additional communication or function modules.
The drive is designed for single-axis or multi-axis configurations and is commonly applied with motors in the approximate 750 W power class. Mechanical dimensions are compact (approximately 70 × 182 × 170 mm), making the unit suitable for dense control-cabinet layouts. Weight is in the region of 1.8–2.1 kg.
Operating conditions recommend ambient temperatures below 45 °C for full performance (operating range approximately 5–55 °C) and installation altitudes preferably below 1000 m (maximum 2000 m). The controller is intended for IP20 cabinet environments.
As a legacy EcoDrive Cs product, the DKC10.3-018-3-MGP-01VRS is no longer manufactured as a current-series device. Units available on the market are generally repaired, refurbished or surplus. Correct parameterisation and matching of firmware, motor data and interface configuration are required for reliable operation.

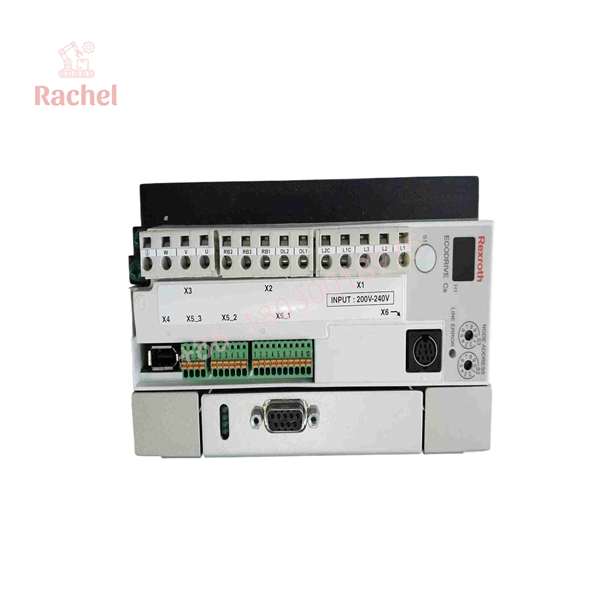

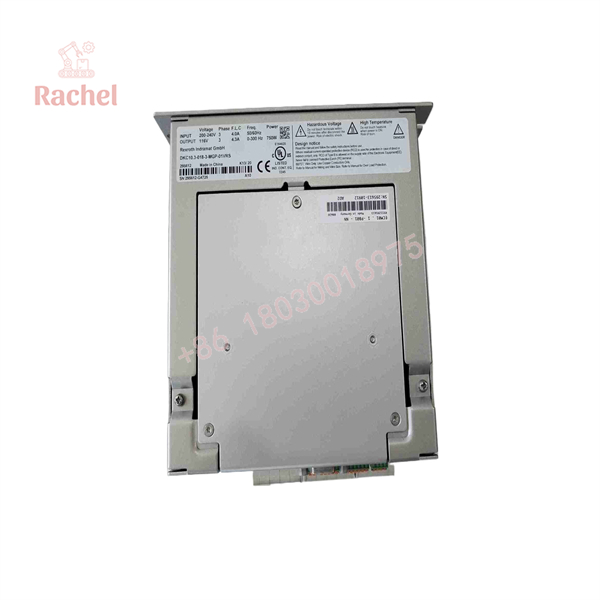

DKC10.3-018-3-MGP-01VRS
DKC10.3-018-3-MGP-01VRS
Applications & System Role
The DKC10.3-018-3-MGP-01VRS serves as the power and control stage for one servo axis (or coordinated multi-axis systems) within an EcoDrive Cs installation. It converts the incoming supply into a regulated three-phase output for the connected servo motor and executes speed, torque or position commands received from a higher-level controller. Typical applications include packaging machinery, assembly systems, material handling and general industrial automation requiring compact servo drives.
FAQ
What is the Rexroth DKC10.3-018-3-MGP-01VRS?
It is a Bosch Rexroth Indramat EcoDrive Cs digital servo drive controller rated 18 A with 300 V DC bus and multi-interface general-purpose firmware.
What is the rated current and DC-bus voltage?
18 A continuous current and 300 V nominal DC-bus voltage.
What does MGP-01VRS mean?
Multi-interface, General Purpose firmware, version 01, standard release.
Is this drive suitable for multi-axis systems?
Yes. It supports both single-axis and multi-axis applications within the EcoDrive Cs platform.
What are the approximate dimensions?
Approximately 70 mm width × 182 mm height × 170 mm depth.
Is the DKC10.3-018-3-MGP-01VRS still in production?
No. It is a legacy product; available units are typically repaired, refurbished or surplus.
