Description
Core Product Summary
The Sigmatek DCP 161 (Article Number: 05-004-161) is a processor control module designed for use within Sigmatek DIAS industrial automation systems. Serving as a central processing unit, the module executes control programs and manages communication across the automation architecture.
Powered by an Intel 386EX processor core, the DCP 161 features onboard program and data storage memory along with a real-time clock and battery data preservation. The unit integrates standard communication interfaces—including CAN bus and serial ports—and includes a 2-digit 7-segment status display with diagnostic LEDs for runtime monitoring and configuration. Because it lacks an internal power supply, the processor module requires an external Sigmatek DPS power supply module.
Key Technical Specifications
| Specification Parameter | Verified Value / Rating |
| Product Series | Sigmatek DIAS Automation System |
| Product Type | Processor / Central Processing Unit (CPU) Module |
| Article Number | 05-004-161 |
| Processor Type | Intel 386EX |
| Instruction Execution Time | Typically 0.3 µs (minimum 0.094 µs) |
| Internal Program Storage (Flash-PROM) | 40 kByte |
| Internal Program Storage (SRAM) | 112 kByte |
| Internal Data Storage (SRAM) | 124 kByte |
| Addressable I/O / P Modules | Up to 16 modules |
| Communication Interfaces | 1x CAN bus, 1x RS-232, 1x configurable RS-232 / RS-422 / RS-485 |
| Processor Supply Voltage | +5 V DC (typically 600 mA current consumption) |
| Data Preservation | Integrated lithium battery back-up |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -20 °C to +85 °C |
| Protection Class | IP20 (EN 60529) |
Detailed Product Overview
The Sigmatek DCP 161 processor module acts as the computational core for legacy Sigmatek DIAS modular control setups. It executes user application logic, coordinates data exchange between connected input/output modules, and interfaces with external supervisory systems or engineering terminals via built-in serial and CAN communication ports.
The module features a robust architecture intended for industrial switchboard cabinets. System status, configuration parameters, and error codes are directly reported via an integrated 2-digit decimal 7-segment display and diagnostic LED layout. Maintenance of volatile application data during power cycles is supported by an onboard lithium battery backup.

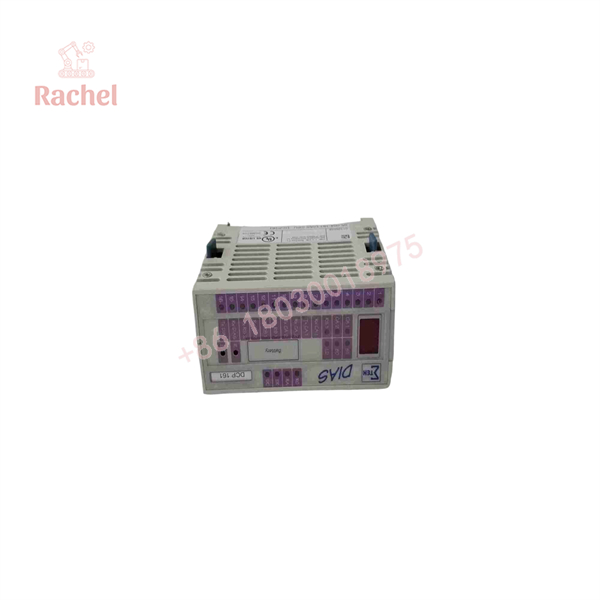

DCP 161

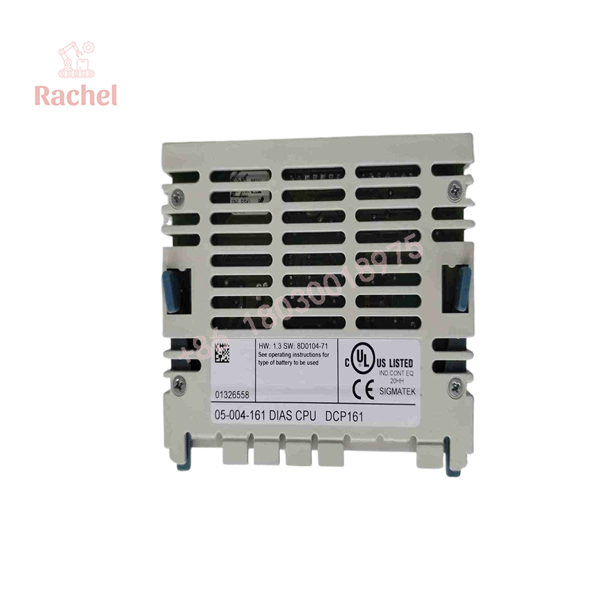

DCP 161
Dimensions, Mounting & Connection Notes
- Mounting Method: Mounts onto the required DKL 002 terminal module configured for standard backplate or enclosure installation.
- Connection Technique: 21-pole 3-row spring terminal strips and D-Sub plug interfaces located on the associated terminal module.
- Environmental Protection: Rated IP20; intended for installation within a controlled industrial control cabinet (EN 60529).
- Shock and EMC Resistance: Built to meet industrial EN 50082-2 electromagnetic compatibility standards and EN 60068-2-27 shock resistance specifications (150 m/s²).
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| System Architecture | Sigmatek DIAS modular automation platform | Designed to manage up to 16 addressable I/O or peripheral modules. |
| Power Supply Requirement | Sigmatek DPS series power module (e.g., DPS001, DPS211, DPS221) | The CPU module has no internal power supply and must be powered via a compatible DIAS power module. |
| Required Terminal Module | Sigmatek DKL 002 (Article Number: 05-024-002) | Provides the mechanical base and 21-pole spring terminal/D-Sub connection interface. |
| Network Protocols | CAN bus, RS-232, RS-422, RS-485 | Utilized for programming, system diagnostics, and field-bus communication. |
FAQ
What is the Sigmatek DCP 161?
It is a processor control module (CPU) designed to run control programs within Sigmatek DIAS industrial automation systems.
What processor powers the DCP 161?
The unit utilizes an Intel 386EX processor core.
Does the DCP 161 include an internal power supply?
No. The processor module does not have an internal power supply and must be powered externally via a compatible Sigmatek DPS power supply module.
What communication ports are available on the module?
It is equipped with one CAN bus interface, one dedicated RS-232 port, and one versatile port configurable as RS-232, RS-422, or RS-485.
How many I/O modules can a DCP 161 address?
It supports up to 16 addressable I/O or peripheral modules within the DIAS framework.
What terminal module is required to connect the DCP 161?
It requires the Sigmatek DKL 002 terminal module (Article Number: 05-024-002) for proper mechanical mounting and electrical wiring.
