Description
Core Product Summary
The STEIN SOHN F404002A is identified as a VBI6 VISTA Bus Interface module associated with the Stein Sohn VISTA Automation system. It serves as a system-specific interface component within the automation platform, rather than a conventional standalone analog or digital I/O module.
For maintenance and spare-parts procurement, the complete model designation is the starting point for identification. The VBI6 designation, PCB markings, hardware revision, connector arrangement, and installed system configuration should also be compared before selecting a replacement. These checks help establish whether the candidate module matches the requirements of the existing VISTA installation.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | H.M. Stein Sohn |
| Brand | STEIN SOHN |
| Model | F404002A |
| Module designation | VBI6 |
| Product type | VISTA Bus Interface module |
| System family | VISTA Automation |
| Primary function | System bus interfacing |
| Hardware identification | F404002A / VBI6 |
| Additional marking | E710.1 appears on documented assemblies |
| Revision identification | Rev. A and Rev. C markings appear in equipment records |
Engineering Selection Highlights
- Correct module identity: The F404002A designation identifies the VBI6 bus interface. Match the full model number before evaluating a replacement.
- System-specific integration: The module belongs to the VISTA Automation platform. Physical similarity to another interface board does not establish compatibility.
- Revision control: Compare the installed board’s revision markings with those on the proposed replacement.
- PCB identification: Record additional markings such as E710.1 where present to help distinguish hardware assemblies.
- Connector arrangement: Compare connector positions and board layout with the installed module before installation.
- Electrical requirements: Confirm the required supply and connection details from the documentation applicable to the exact assembly before applying power.
System Compatibility & Integration Requirements
| Item / dependency | Selection requirement | Practical note |
|---|---|---|
| Host automation platform | Stein Sohn VISTA Automation | Confirm the specific installed system configuration. |
| Module designation | VBI6 | Match the designation on the existing module. |
| Hardware revision | Compare the installed and replacement revisions | Do not assume different revisions are interchangeable. |
| PCB identification | Record additional board markings, including E710.1 where present | Use these markings as supplementary identification details. |
| Electrical connection | Match the supply and connection requirements of the installed system | Confirm requirements before connecting power. |
| Bus connection | Must match the intended VISTA system arrangement | Confirm the applicable system documentation and wiring. |
F404002A

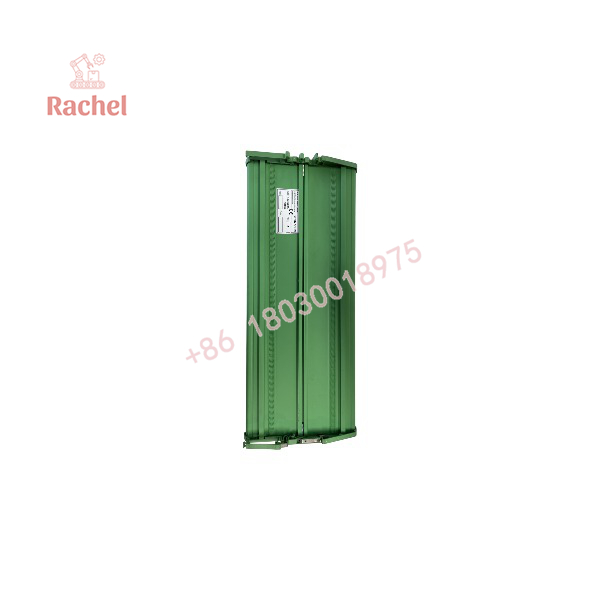

F404002A
Dimensions, Mounting & Connection Notes
The F404002A is an electronic bus interface assembly intended for use within the VISTA Automation system.
Before installation:
- Compare the replacement board’s model and revision markings with the existing assembly.
- Inspect the connectors for bent contacts, oxidation, or mechanical damage.
- Examine the PCB for corrosion or contamination, particularly if the equipment has been stored or operated in a marine environment.
- Confirm the correct power connection and bus wiring from the applicable system documentation.
- Follow appropriate electrostatic-discharge precautions when handling the board.
Exact dimensions, weight, mounting clearances, connector pin assignments, and terminal torque values are not included here because they have not been established for every F404002A revision.
Detailed Product Overview
VBI6 bus-interface function
The F404002A is identified as a VBI6 VISTA Bus Interface module. Its purpose is associated with the bus infrastructure of the Stein Sohn VISTA Automation platform.
In an automation system, a bus interface forms part of the connection architecture that allows compatible components to exchange information. The interface’s suitability depends on the electrical and logical requirements of the host system, including the applicable hardware arrangement and connections.
The F404002A should not be confused with a conventional field I/O module. Its identification as a bus interface does not establish that it directly accepts analog signals, reads digital contacts, or drives field outputs.
Hardware revision and identification
When maintaining an existing installation, the full model number is only one part of the identification process. The VBI6 designation and additional PCB markings can help distinguish the installed assembly from other VISTA components.
Revision markings such as Rev. A or Rev. C should be recorded during procurement. Their presence does not, by itself, establish whether two revisions are interchangeable. That decision requires confirmation against the intended system configuration and applicable technical documentation.
Replacement and maintenance considerations
Selecting a replacement for the F404002A requires attention to more than the board’s appearance. The host system, connector arrangement, electrical requirements, and hardware revision all affect whether the candidate assembly is suitable.
Before returning a repaired or replacement module to service, inspect the board and connectors, confirm the required electrical connections, and perform the appropriate functional checks in a compatible VISTA system. A successful power-up alone is insufficient to demonstrate correct bus communication or system compatibility.
For purchasing records, retain photographs of the module label, PCB markings, connectors, and revision information. These details make subsequent identification and maintenance easier.
Applications & System Role
The STEIN SOHN F404002A VBI6 provides a bus-interface function within the VISTA Automation architecture. Its role is associated with the interconnection of system components through the platform’s bus arrangement.
The module is relevant to several maintenance activities:
- Legacy system maintenance: Identifying the correct interface assembly during troubleshooting or repair.
- Spare-parts procurement: Matching a replacement to the existing VBI6 designation and hardware revision.
- System restoration: Re-establishing the intended bus interface after a module failure or board-level repair.
- Marine automation maintenance: Supporting identification of VISTA equipment installed in marine automation systems, where applicable to the vessel’s configuration.
The exact connected devices and communication behavior depend on the host installation. The module should therefore be assessed within the existing system architecture rather than treated as a generic communication interface.
Frequently Asked Questions
What is the STEIN SOHN F404002A?
The STEIN SOHN F404002A is identified as a VBI6 VISTA Bus Interface module associated with the VISTA Automation platform.
What does VBI6 mean in the F404002A designation?
VBI6 is the module designation associated with the VISTA Bus Interface function.
Is the F404002A a digital or analog I/O module?
It is identified as a bus interface module, not a conventional digital or analog field I/O module.
Which automation system is the F404002A associated with?
It is associated with Stein Sohn VISTA Automation. Compatibility with a particular installation depends on the installed hardware configuration.
What should be checked before ordering a replacement?
Compare the complete F404002A model designation, VBI6 marking, hardware revision, PCB identification, connector arrangement, and electrical requirements with the existing installation.
Can different F404002A hardware revisions be interchanged?
Interchangeability should not be assumed solely from the model number. Confirm the applicable revision and system requirements before substituting one assembly for another.
What should be inspected when receiving a used F404002A?
Inspect the identification label, PCB markings, connectors, board condition, and signs of corrosion or repair. Functional testing should be conducted in a compatible system before the module is returned to service.
