SUPCON TB366-DU Digital Input Terminal Board

Description

Product Introduction & Engineering Value

A failed terminal board rarely creates a clear diagnostic alarm. More often, engineers see unstable field signals, missing status feedback, or intermittent digital input failures that appear to come from the controller itself. The SUPCON TB366-DU addresses the field connection layer by providing structured termination between plant devices and DCS input modules.

In long-running ECS-series installations, keeping matching terminal boards in spare inventory can reduce troubleshooting time significantly. The TB366-DU is designed for 24VDC digital input applications and supports connection of field switches, proximity devices, and other discrete signals through compatible SUPCON I/O hardware.

Technical Specifications

Field Application & The “Trench” Experience

A chemical plant operating a SUPCON ECS-100 DCS began receiving random digital input dropouts from a group of field limit switches. Operators reported that some equipment status signals disappeared briefly and returned without controller restart.

The maintenance team initially checked the DCS processor and input card health. Signal tracing later identified loose termination points and degraded connections around the TB366-DU interface layer. The engineers documented every field wire position, replaced the terminal board, and verified all 32 input channels before returning the system to normal operation.

Typical application scenarios include:

• Chemical Reactor Interlock Monitoring — valve position switches, pump running feedback, and equipment permissive signals
• Power Plant Auxiliary System Control — breaker status, motor feedback, and alarm contacts
• Process Skid Automation — package equipment digital status collection through SUPCON DCS cabinets

Transparency SOP: QA & Testing

For SUPCON TB366-DU new surplus and refurbished inventory, the inspection process should include:

Quality Control Procedure

• Verify SUPCON manufacturer marking and TB366-DU identification.
• Confirm board revision and PCB labeling.
• Inspect terminal blocks, connectors, and solder joints.
• Check for oxidation, contamination, or mechanical stress.
• Perform continuity testing between field terminals and module interface points.
• Verify channel mapping against available documentation.
• Package with ESD protection after inspection.

For refurbished units, functional verification should be completed whenever compatible SUPCON test equipment is available.

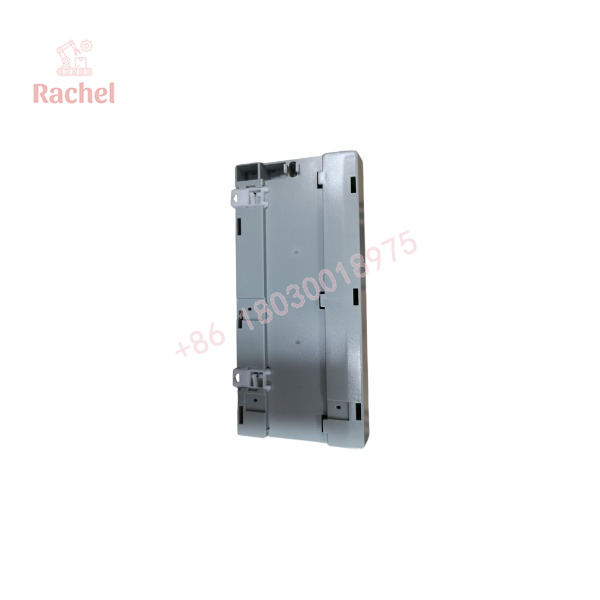

TB366-DU

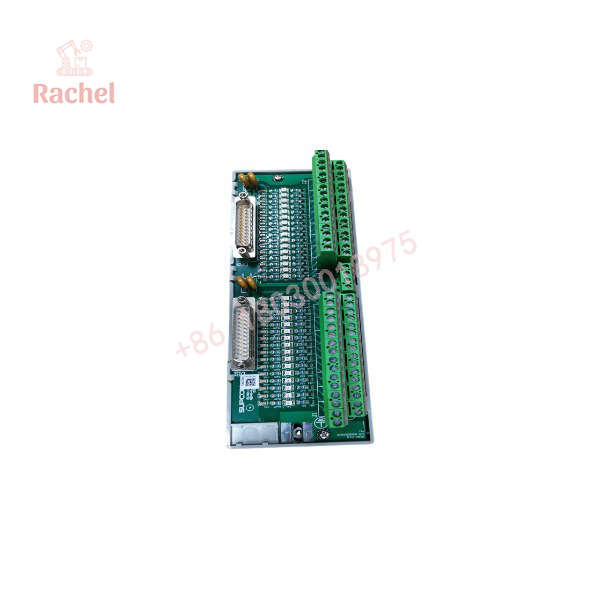

TB366-DU

The Veteran’s Tech Trap Guide

⚠️ Do not confuse TB366-DU with other TB366 variants.

SUPCON provides multiple TB366-family terminal boards. The DU version is intended for 24VDC digital input applications. Other variants may support different voltage levels, redundancy configurations, or signal types.

⚠️ Check the connected I/O card before replacement.

The TB366-DU works together with specific SUPCON digital input modules. Installing a similar-looking terminal board with the wrong card family can create channel mismatch problems.

PRO TIP: Before removing the terminal board, record every wire label and take cabinet photos. Many DCS cabinets contain field modifications that are not reflected in original drawings.

⚠️ Inspect terminal quality, not only electronics.

A terminal board can look clean while having poor contact resistance caused by aging terminal hardware. Always include connection integrity checks during troubleshooting.

Dynamic FAQ

Q1: What is the SUPCON TB366-DU used for?
The TB366-DU is a SUPCON digital input terminal board used to connect 24VDC field signals to compatible DCS digital input modules.

Q2: How many channels does the TB366-DU support?
The TB366-DU supports 32 channels of 24VDC digital input signals.

Q3: Which SUPCON modules are compatible with TB366-DU?
The board is designed for compatible SUPCON digital input modules, including XP366/FW366(B)-type applications depending on system configuration.

Q4: Can TB366-DU replace TB366-DRU or TB366-48VU?
No. These terminal boards have different signal configurations. Confirm voltage level, channel arrangement, and module compatibility before replacement.

Q5: How should a refurbished TB366-DU be tested before installation?
Testing should include visual inspection, terminal continuity checks, connector verification, and functional validation where compatible DCS equipment is available.

Q6: Is new surplus SUPCON TB366-DU available?
Availability depends on remaining automation inventory. Buyers should verify the exact model suffix, revision, storage condition, and warranty coverage before purchasing.
