Description
Product Introduction
To be honest, the TMEIC ARND-3620 is an integral brain-board deployed across heavy industrial TMdrive architectures. This printed wiring board (PWB) processes real-time control feedback, gate firing sequences, and system diagnostic routines required to operate large-scale multi-megawatt drive systems reliably under severe thermal and mechanical stresses.
Designed with high-density surface-mount components and conformal coating, it withstands the harsh ambient environments typical of heavy manufacturing plants. In our field experience, replacing an ARND-3620 board during an unannounced drive outage requires careful static control and exact hardware revision validation to avoid backplane fault trips.
Key Technical Specifications
| Parameter | Value |
| Board Type | Controller Board / Printed Wiring Board (PWB) |
| System Compatibility | TMEIC TMdrive Large Industrial Inverter / Converter Racks |
| Processing Architecture | Proprietary TMEIC ASIC / Signal Processor Core |
| Mounting Style | Rack-mounted slide-in PWB assembly |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +75°C |
| Enclosure Protection | Open PWB (Conformal coated for industrial environments) |
| Weight | Approx. 1.0 kg to 1.5 kg |
| Condition | New Surplus / Fully Tested Refurbished |
Application Scenarios & The “Trench” Experience
Picture this: It’s 2:30 AM in a paper mill or steel processing facility. A main drive section trips unexpectedly on a regulator watchdog error due to a failed component on the main control board. Production comes to an abrupt halt, costing thousands of dollars per hour. Having a verified, tested TMEIC ARND-3620 replacement board ready in your critical spares locker allows engineers to swap the PWB, clear drive fault codes, and resume rolling operations before the morning shift change.
- Metals Industry – Hot Strip & Cold Rolling Mills: Executing real-time torque and speed control loops for high-power mill stands.
- Paper & Pulp – Main Sectional Drives: Synchronizing multi-motor drive systems with precise speed regulation.
- Mining & Materials – Heavy Conveyor Systems: Processing feedback loops for high-torque start/stop cycles.

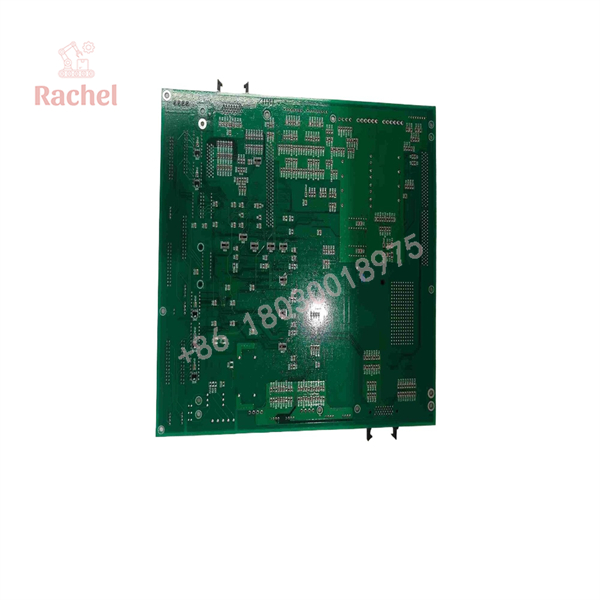

ARND-3620

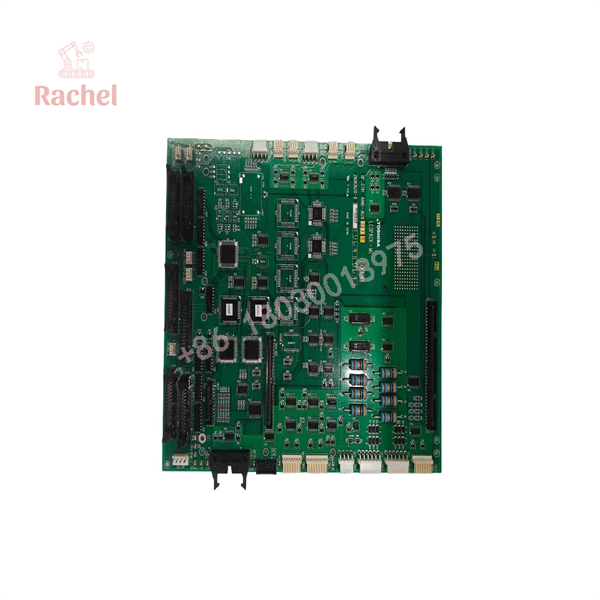

ARND-3620
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual TMEIC drive test rigs. Every unit goes through a strict verification protocol:
- Inbound Inspection: Visual check for edge-connector condition, component integrity, surface-mount trace health, and authentic TMEIC labels.
- Live Rig Testing: Insertion into an active TMdrive test chassis to verify power-on self-tests (POST), boot sequences, and status LED health.
- Communication Handshake: Testing internal bus communications and memory registers to confirm zero signal corruption.
- Thermal Stability Check: Operating the board under controlled thermal load to confirm component stability.
- Final QC & Anti-static Packaging: Clearing diagnostic logs, sealing the board in a heavy-duty ESD shielding bag, and crating in protective high-density foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Strict ESD Precautions Required: Never handle or insert the ARND-3620 without a grounded wrist strap and proper ESD protection. High-density processor boards are exceptionally sensitive to static damage.
❗ Parametric & Memory Transfer: Check whether your drive parameters or calibration data are stored on removable EEPROM modules or downloaded from a master system unit. Swapping the board without verifying memory configuration can cause control loop instability.
⚠️ Proper Rack Insertion: Ensure the board slides smoothly along card guides without forcing it into the backplane connectors. Bending backplane pins during insertion causes persistent, difficult-to-trace fault codes.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the TMEIC ARND-3620 hot-swappable?
A: No. High-power drive racks must be fully powered down and DC bus capacitors safely discharged before removing or installing regulator boards to prevent fatal electrical shock or board destruction.
Q: Does this board require software re-flashing upon installation?
A: Depending on system architecture, you may need to verify or restore parameter files using TMEIC’s drive engineering tool.
Q: Does this unit come with a warranty?
A: Yes. All surplus and fully tested units include a standard 12-month replacement warranty.
Q: Why purchase surplus over OEM lead times?
A: High-power drive PWBs often suffer extended factory lead times. Sourcing verified surplus or refurbished units allows maintenance teams to recover from critical drive failures immediately.
