Description
Product Introduction & Engineering Value

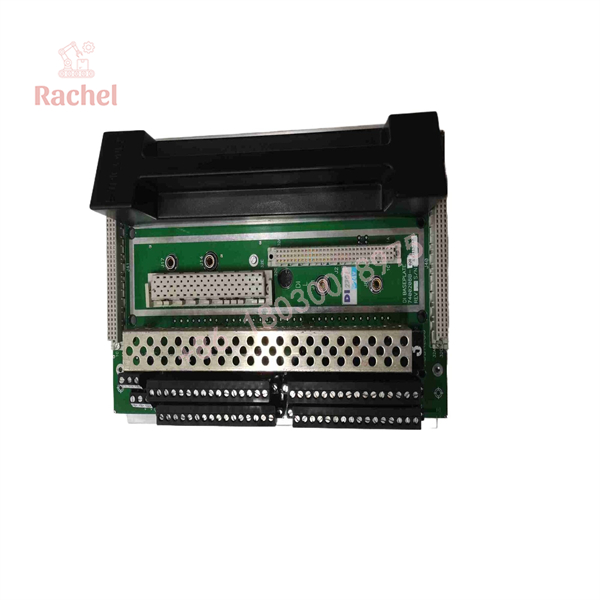

The Triconex 2301 is a field-interface/baseplate component used with the Trident safety system’s 32-point digital input architecture. Its job is physical and electrical rather than computational: it provides the termination and field-power interface required by the associated 3301 DI module.
That distinction matters during procurement. Several third-party listings incorrectly describe the 2301 as a complete digital input module or controller. Triconex documentation identifies it specifically as the Model 2301 Digital Input Baseplate. The current Triconex lifecycle material also identifies 2301 as an “ASSY KIT BSPT DI 24VDC 32PT.”
Technical Specifications
| Specification | Triconex 2301 |
|---|---|
| System | Trident |
| Component Type | Digital Input Baseplate |
| Associated Module | 3301 Digital Input Module |
| Point Capacity | 32 digital inputs |
| Field Signal | 24 VDC digital input |
| Architecture | Trident safety I/O |
| Termination | Direct field termination |
| Baseplate Function | DI module field interface |
| Field Power | Dual field-power arrangement |
| Fault Current | 130 mA typical |
| Maximum Fault Current | 200 mA |
| Mechanical Role | Mounting and electrical interface for DI module |
The Trident manual specifies 130 mA typical and 200 mA maximum for the field short-to-ground fault current on the 2301 baseplate. It also shows separate field-power paths in the baseplate wiring arrangement.
Field Application & the “Trench” Experience
Picture a Trident safety cabinet supporting a process shutdown system. One of the 32-point digital-input positions has developed a termination problem. The 3301 DI module itself passes its bench checks, but several field signals are unstable after maintenance work.
An experienced technician does not immediately condemn the I/O module. The 2301 baseplate and field termination wiring are checked first, because the baseplate is the physical interface between the field circuits and the 3301 electronics. Replacing the correct baseplate can restore the intended termination arrangement without changing the safety application logic.
Typical applications include:
- Emergency shutdown input termination for discrete trip contacts.
- Burner-management permissive and trip circuits using 24 VDC field contacts.
- Compressor package shutdown signals, including pressure, vibration, and permissive contacts routed into a Trident SIS.
The Trident documentation specifically identifies the 2301 as the Digital Input Baseplate used with the 3301 32-point DI module.
2301
Transparency SOP: QA & Testing
For New Surplus or Refurbished 2301 inventory, QA should focus on the baseplate and its field-interface integrity rather than claiming that it has the same functionality as an electronic I/O module.
Inspection checklist:
- Verify the nameplate/part marking as 2301.
- Inspect terminal blocks and field connectors for damaged or bent contacts.
- Check mounting hardware and mechanical locking features.
- Inspect PCB/interconnect areas for corrosion, contamination, or cracked solder joints.
- Verify continuity of relevant field-power and termination paths.
- Confirm compatibility with the Trident 3301 digital input module.
- Document the unit’s condition as New Surplus, Used/Tested, or Refurbished.
The manufacturer’s Trident documentation provides the electrical reference for the 2301 baseplate, including its field short-circuit characteristics and 32-point connection arrangement.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Ordering a 2301 when you actually need a 3301.
This is the most important distinction. 2301 = Digital Input Baseplate. 3301 = Digital Input Module. They are complementary components, not interchangeable part numbers.
⚠️ Trap #2 — Confusing a baseplate with an electronic I/O card.
A 2301 does not perform the signal-processing function of the 3301. If the diagnostic fault follows the electronic module, replacing only the baseplate will not solve the problem.
PRO TIP: When requesting a quotation, send the supplier a photo of the installed assembly and the complete part-number markings. “Triconex 2301” is enough to identify the baseplate family, but the complete cabinet BOM is much better evidence for a safety-system replacement.
⚠️ Trap #3 — Ignoring field-power redundancy.
The Trident documentation shows separate field-power paths associated with the DI baseplate. Do not casually modify jumpers or field-power wiring while replacing the baseplate. Preserve the original installation configuration and validate it against the approved site drawings.
Dynamic FAQ
Q: What is the Triconex 2301?
The 2301 is a Trident Digital Input Baseplate designed to interface with the 32-point Model 3301 digital input module.
Q: Is the 2301 itself a digital input module?
No. The electronic DI module is 3301. The 2301 is the associated baseplate providing the physical and field-interface functions.
Q: How many digital input points does the 2301 support?
The documented configuration is 32 points when used with the 3301 digital input module.
Q: What field voltage is associated with the 2301?
The Triconex lifecycle documentation identifies the assembly as a 24 VDC, 32-point digital-input baseplate kit.
Q: Is the 2301 still relevant for legacy Trident systems?
Yes. It remains a relevant spare for installed Trident systems, although lifecycle status should be checked against the specific procurement date and site requirements. Schneider/Triconex lifecycle material identifies 2301 as an established Trident hardware item.
Q: What should I verify when purchasing New Surplus 2301?
Confirm the exact 2301 identification, physical condition, terminal/interface condition, compatibility with the installed 3301 DI module, and the supplier’s warranty. “New Surplus” should mean unused inventory; ask separately whether the unit has ever been installed, repaired, or electrically tested.
