Waukesha A740512E ESM Engine System Manager Module

Description

Product Introduction

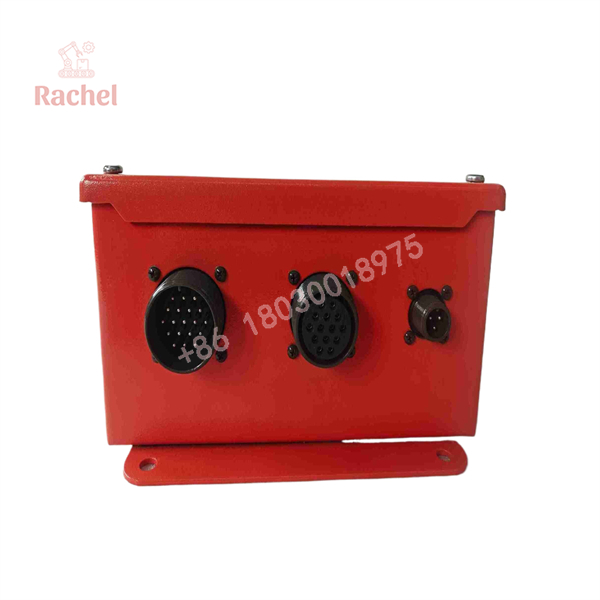

The Waukesha A740512E is a primary Engine System Manager (ESM) electronic control module designed for heavy-duty Waukesha rich-burn and lean-burn industrial gas engines (including VHP and 275GL series). Serving as the central brain of the engine control system, the A740512E integrates governor control, ignition timing advance/retard, knock monitoring, and air-fuel mixture optimization into a single enclosure.

Engineered to withstand the extreme thermal loads and high vibration levels present in gas compression and power generation installations, the A740512E ensures strict compliance with site emissions standards while guarding the engine block against catastrophic detonation.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a remote natural gas compressor station running a Waukesha VHP 7042GSI engine in remote field operations. An internal power rail failure in an aging ESM controller drops ignition across all cylinders, immediately tripping the pipeline compressor station and venting field gas. Every hour the unit stays offline costs operators thousands in lost throughput and pipeline penalties. Swapping in a pre-tested Waukesha A740512E ESM module, verifying sensor calibrations, and restoring CAN communication gets the compressor back online quickly without risking engine detonation.

Primary Field Applications:

• Gas Compression & Transmission: Continuous-duty natural gas pipeline compressor drives.
• Oilfield Power Generation: Prime power gensets running on field gas, landfill gas, or digester gas.
• Cogeneration (CHP): Industrial combined heat and power plants requiring strict NOx emission limits.

A740512E

A740512E

Transparency SOP: Quality Assurance & Testing

Industrial engine control units must perform reliably under severe electrical and mechanical strain. Every Waukesha A740512E module undergoes a rigorous 5-step test protocol prior to dispatch:

1. Inbound Visual & Mechanical Inspection: Inspection of housing seals, heavy-duty harness pin connectors, grounding surfaces, and internal conformal coating.
2. Power-On & Internal Diagnostic Audit: Bench-testing with 24V DC power to verify internal DC-DC converters, boot-loader firmware, and status LED sequences.
3. Sensor Signal Simulation: Simulating hall-effect speed inputs, magnetic pick-ups, manifold absolute pressure (MAP) sensors, and thermocouple arrays to confirm reading accuracy.
4. Ignition & Actuator Output Drive Test: Verifying high-energy ignition trigger outputs, stepper motor fuel valve control signals, and relay driver circuits under simulated engine load profiles.
5. ESD Cleaning & Protective Packaging: Moisture barrier sealing, anti-static wrapping, and reinforced foam packaging for safe transport.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Engine Calibration Parameters Before Startup: The A740512E ESM module stores specific engine map data (fuel type, compression ratio, emissions rating). Installing a replacement module without uploading the correct engine parameter file using Waukesha Service Program (WSP) software can cause severe engine knock, misfires, or turbocharger overspeed!
• ❗ Inspect Harness Connectors for Pin Corrosion: Gas compression sites frequently expose wiring to moisture and airborne chemicals. Always inspect the wiring harness plug for bent pins, moisture intrusion, or oil contamination before seating the multi-pin connector on the A740512E.
• ⚠️ Check Grounding Continuity: Bad chassis grounds are the #1 cause of intermittent ESM reset faults and false detonation alarms. Ensure the module mounting plate and main engine block ground strap are clean, corrosion-free, and torqued to specification.
• ❗ Protect Against Voltage Spikes During Jump Starts: Never disconnect battery leads while the engine is running or use unconditioned high-amp boosters. Voltage transients can instantly destroy internal clamping diodes on the A740512E power input rail.

Frequently Asked Questions (FAQ for Conversion)

Q: Does the Waukesha A740512E require programming before installation?

A: Yes. While the module contains base operating firmware, engine-specific parameters (such as engine model, fuel LHV, and speed range) must be verified or flashed using Waukesha Service Program (WSP) software during commissioning.

Q: Can I replace an older revision ESM card with the A740512E?

A: In most cases, the A740512E serves as a direct form, fit, and function replacement for previous Waukesha ESM part number iterations. However, always verify system software revision compatibility prior to replacement.

Q: What is the warranty on this Waukesha controller?

A: Every Waukesha A740512E module supplied from our inventory carries a full 12-month replacement warranty.

Q: Why buy new surplus or refurbished A740512E modules?

A: Factory lead times for OEM engine control hardware can extend for months. Sourcing pre-tested surplus or refurbished stock resolves emergency outages immediately while maintaining full operational safety and OEM performance.
