Description
Product Introduction
The ICS Triplex T9100 (frequently designated under the ICS 9100 series) is a core system component designed for the Rockwell Automation ICS Triplex Trusted Triple Modular Redundant (TMR) safety system architecture. Built specifically for Emergency Shutdown (ESD), Fire & Gas (F&G), and Turbomachinery Control applications, it provides fault-tolerant power distribution and system interface routing across the chassis backplane.
Unlike standard PLC power hardware, the T9100 operates inside a 2-out-of-3 (2OO3) voting infrastructure. It converts external bulk power feeds into isolated, noise-filtered internal system rails while maintaining strict physical and electrical channel separation. This guarantees that a single power fault or component failure cannot compromise SIL3 safety instrumented functions.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Rockwell Automation / ICS Triplex |
| Part / Series Number | T9100 / ICS 9100 Series |
| System Compatibility | ICS Triplex Trusted TMR Safety System |
| Safety Integrity Level | IEC 61508 SIL 3 Capable |
| Architecture | Triple Modular Redundant (2OO3 Voting Support) |
| Input Voltage Range | 20 to 32 VDC (24 VDC Nominal) |
| Power Fault Tolerance | Dual Redundant Power Feeds with Internal Diode-ORing |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Format | Dedicated Trusted Controller / Expander Chassis Slot |
| Diagnostics | Onboard LED status monitoring and bus fault telemetry |
Application Scenarios & The “Trench” Experience
During an offshore platform shutdown testing sequence, a primary 24V supply bus suffered a massive voltage spike when an auxiliary generator tripped under load. Standard PLC racks on adjacent skids dropped offline, triggering false trips. The ICS Triplex system—backed by dual-redundant T9100 power units—absorbed the voltage transient, isolated the failed feed, and maintained uninterrupted SIL3 monitoring on the production separators. Having a tested spare T9100 on site enabled the instrument team to swap out the damaged power rail on the secondary feed without taking the main control node down.
Target Applications:
- Emergency Shutdown Systems (ESD): Maintains continuous SIL3 power rails for critical safety trip loops in oil refineries and LNG terminals.
- Turbomachinery Control (TMC): Delivers clean, fault-tolerant power for high-speed turbine overspeed protection and fuel gas metering.
- Fire & Gas Detection (F&G): Ensures uninterrupted loop power for distributed flame and gas detector arrays across hazardous offshore installations.

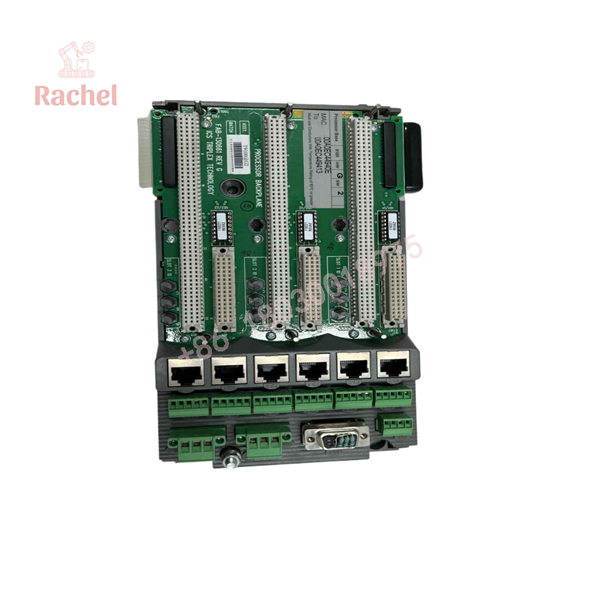

9100
Transparency SOP: Quality Assurance & Testing
Safety systems leave zero room for error. Every ICS Triplex T9100 module goes through our rigorous QA bench protocol before shipping:
- Visual & Structural Inspection: Check terminal connections, chassis guide rails, backplane pin connectors, and internal board conformal coating for signs of heat stress or mechanical wear.
- High-Voltage Insulation Test: Verify galvanic isolation between incoming power terminals, chassis ground, and internal bus lines.
- Live Chassis Bench Run: Insertion into an active ICS Triplex Trusted chassis rack under simulated load conditions.
- Redundancy & Failover Check: Pulling primary power sources under full load to confirm instant, bump-free switchover to secondary power feeds without resetting the system bus.
- Anti-Static & Protective Packaging: Sealed in anti-static ESD shielding bags and shipped in custom-cut, heavy-density foam packaging.
The Veteran’s Tech Trap Guide
- ⚠️ Do not bypass dual power feeds during installation. Connecting only a single 24VDC source to the module disables the internal power redundancy. If that single feed dips below threshold, the entire chassis rack will initiate a safety trip.
- ❗ Verify chassis grounding before seating the module. ICS Triplex Trusted systems rely heavily on low-impedance ground bonding for noise suppression and safety isolation. Ensure cabinet bus bars are grounded to plant Earth before sliding the module into the backplane.
- ⚠️ Mind the connector pin engagement. Forcefully seating the module into a misaligned slot can bend the high-density backplane pins. Always align the card guides carefully and tighten top and bottom thumb screws evenly.
- ❗ Check system firmware compatibility. If replacing a unit in a running node, verify that the module hardware revision matches the existing chassis configuration in the Trusted Toolset software to prevent system configuration alarms.
Frequently Asked Questions
Q: Is the T9100 module hot-swappable in a live system?
A: Yes. In a fully redundant Trusted TMR configuration with dual power modules installed, you can replace a faulty T9100 unit online without shutting down the controller or interrupting process operations.
Q: Can I use standard industrial 24VDC power supplies to feed the T9100?
A: Yes, but the power supplies should be regulated, industrial-grade units (preferably with OVP and foldback current limiting) to ensure clean input power to the safety system.
Q: What safety certifications apply to the ICS Triplex T9100?
A: The Trusted TMR system, including the T9100 power hardware, is certified by TÜV for use in Safety Integrity Level 3 (SIL3) applications according to IEC 61508.
Q: How do I know if a fault is internal to the T9100 or on the incoming field power line?
A: Check the front panel status LEDs. A green Power OK light indicates healthy input voltage, while red or amber LEDs flag internal chassis rail faults or input power dropouts.
Q: What is the warranty coverage on surplus or reconditioned T9100 modules?
A: All inspected, tested, and reconditioned ICS Triplex T9100 modules supplied come with a full 12-month replacement warranty.
