Description
Product Introduction & Engineering Value
The Yaskawa SJDE-04ANA is a Junma series servo amplifier designed for 400 W class servo motor applications requiring compact motion control and network-based operation. It combines PWM current control with closed-loop encoder feedback to maintain accurate speed and positioning performance in automated equipment.
For legacy machine maintenance, the SJDE-04ANA remains useful when the existing Junma motion architecture is still serviceable. Replacement projects usually depend on correct motor matching, MECHATROLINK-II communication settings, and recovery of original servo parameters.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yaskawa Electric |
| Model | SJDE-04ANA |
| Series | Junma |
| Product Type | AC Servo Drive / SERVOPACK |
| Applicable Motor Capacity | 400 W |
| Rated Input Voltage | Single-phase 200–230 VAC |
| Input Frequency | 50/60 Hz |
| Continuous Output Current | 2.0 Arms |
| Maximum Output Current | 6.0 Arms |
| Control Method | PWM control, sine-wave current drive |
| Communication Interface | MECHATROLINK-II |
| Feedback Type | Incremental encoder feedback |
| Compatible Motor Series | SJME-04A series servo motors |
| Load Inertia Allowance | Approximately 5.0 × 10⁻⁴ kg·m² |
Field Application & The “Trench” Experience
A factory producing precision optical components experienced repeated downtime on a small indexing machine after the original servo amplifier began generating communication faults. The machine builder had discontinued support for the original controller configuration, but the mechanical system and PLC remained operational.
The maintenance team replaced the failed amplifier with a tested Yaskawa SJDE-04ANA unit. After restoring the MECHATROLINK-II node settings, checking the SJME motor compatibility, and verifying servo parameters, the indexing station returned to production without a complete control-system migration.
Typical applications include:
- Precision indexing tables in electronics assembly equipment
- Automated feeder and positioning mechanisms
- Small CNC auxiliary axes and inspection machines

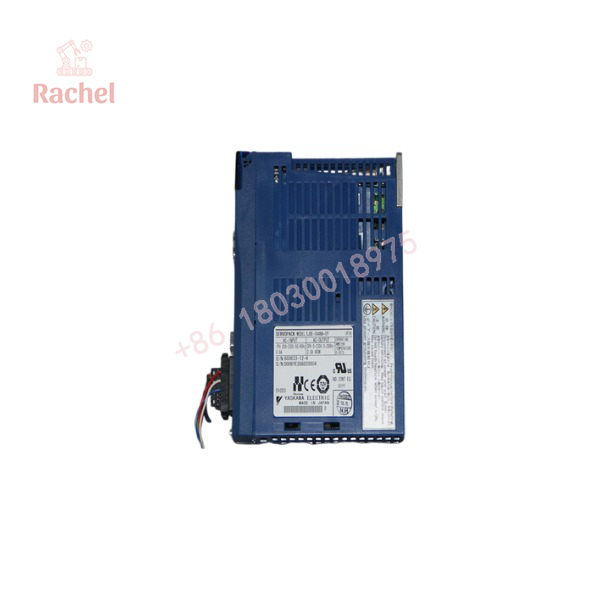

SJDE-04ANA

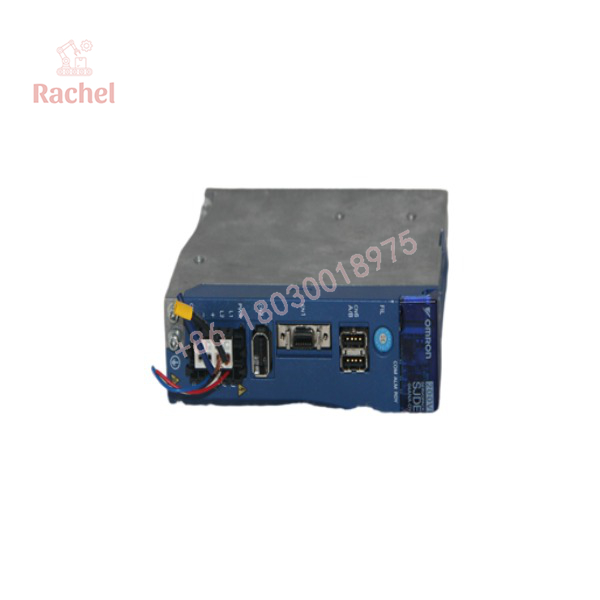

SJDE-04ANA
Transparency SOP: QA & Testing
New Surplus and Refurbished SJDE-04ANA units are evaluated through a controlled inspection workflow:
1. Hardware Verification
- Confirm model marking: SJDE-04ANA.
- Inspect terminal blocks, connectors, heat sink, and enclosure.
- Check for storage damage or environmental contamination.
2. Electrical Testing
- Verify input power section condition.
- Check output stage integrity.
- Inspect communication and feedback connectors.
3. Functional Testing
- Power-up verification using suitable servo test equipment.
- Confirm display and alarm functions.
- Validate communication response where applicable.
4. Final Inspection
- Record test results.
- Package with protection against static discharge and mechanical impact.
The Veteran’s Tech Trap Guide
⚠️ MECHATROLINK-II Configuration Must Match
The SJDE-04ANA is not simply a standalone amplifier replacement. The communication address, controller settings, and network parameters must match the existing machine configuration.
PRO TIP:
Save the original controller and servo network parameters before removing the old unit.
⚠️ Motor Matching Is Critical
The SJDE-04ANA is designed for 400 W Junma motor applications. Installing it with an incorrect motor capacity can create overcurrent alarms, poor tuning, or unstable operation.
⚠️ Do Not Skip Encoder Checks
A servo drive can appear healthy while failing because of feedback wiring problems. Always verify encoder connections before replacing mechanical components.
Dynamic FAQ
Q1: What is the Yaskawa SJDE-04ANA used for?
The SJDE-04ANA is a Junma series AC servo drive used to control compatible Yaskawa servo motors in industrial automation systems.
Q2: What motor can be paired with the SJDE-04ANA?
The drive is matched with 400 W class SJME-04A Junma servo motors.
Q3: Does the SJDE-04ANA support MECHATROLINK-II?
Yes. The ANA version uses the MECHATROLINK-II communication interface for motion commands and monitoring.
Q4: Can a refurbished SJDE-04ANA be used for production equipment?
Yes, provided the unit has passed inspection, electrical checks, and functional verification before installation.
Q5: What should be checked before replacing an SJDE-04ANA?
Confirm motor model, power supply voltage, communication settings, encoder wiring, and stored servo parameters.
Q6: Is the SJDE-04ANA still suitable for legacy systems?
Yes. Many facilities continue using Junma servo systems because replacing the entire motion architecture may require unnecessary engineering effort and machine downtime.
