Description
Engineering Value
For legacy ZMI installations, the 7714 should be treated as a metrology-system component, not as a generic He-Ne replacement. Laser frequency stability, optical output, cooling, beam configuration, and compatibility with the installed measurement electronics all affect the measurement chain.
ZYGO’s current documentation still identifies the ZMI 7714 Laser Head as a supported product/documentation item, and ZYGO’s store lists the ZMI 7714 as an orderable product.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ZYGO Corporation |
| Model | ZMI 7714 |
| Product Type | Laser head |
| Laser Technology | Helium-Neon, dual-frequency |
| Nominal Wavelength | 632.8 nm |
| Frequency Split | 20 MHz nominal |
| Frequency Stability | Approximately 0.5 ppb, 3σ over 1 hour, according to published ZMI-series data |
| Beam Diameter | 6 mm or 8 mm, depending on configuration |
| Cooling | Water |
| Optical Isolation | Yes |
| Compatible Measurement Boards | ZMI 240X and 4X04 series |
| Typical Heat Dissipation | Approximately 39 W |
| Laser Classification | Class IIIa |
The 20 MHz frequency separation is also documented in independent technical literature discussing the ZYGO 7714, which describes the source as producing two frequency components separated by approximately 20 MHz through an acousto-optic-modulator arrangement.
Published ZMI-series data identifies the 7714 with a 0.5 ppb frequency-stability figure, 6 or 8 mm beam options, approximately 39 W heat dissipation, water cooling, and optical isolation.
Important specification note: Output-power figures found in secondary listings vary considerably by configuration and revision. For procurement or calibration work, the exact laser-head revision and factory specification sheet should take precedence over generic reseller specifications.

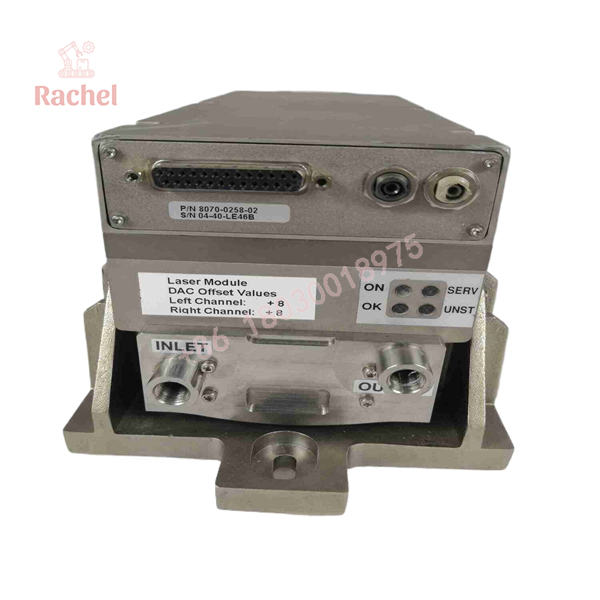

ZMI 7714

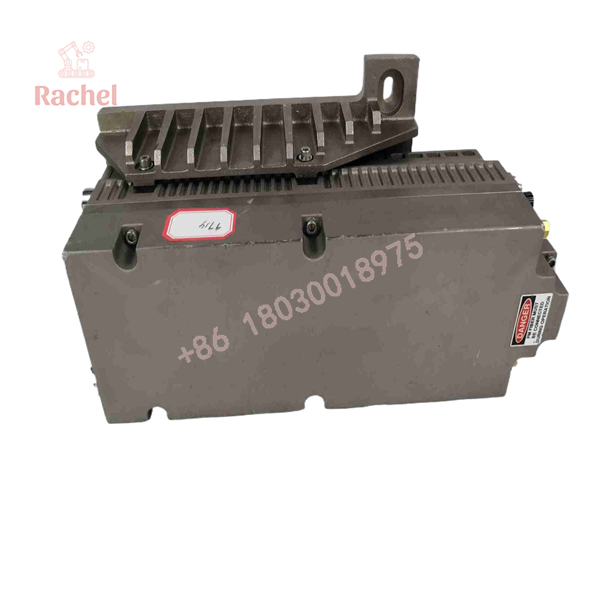

ZMI 7714
Field Application & The “Trench” Experience
Picture a precision motion stage used for semiconductor or optical-component positioning. The machine’s position feedback comes from a ZMI interferometer, and the 7714 is the optical source feeding several measurement axes.
When the laser head begins showing unstable measurement behavior, replacing only the measurement card does not necessarily solve the problem. An engineer has to check the laser source, cooling loop, optical alignment, beam routing, and measurement electronics as one system.
A particularly important clue is that ZYGO specifically positions the 7714 for use with higher-axis-count measurement configurations. The company’s documentation states that the 7714 can work with ZMI 240X and 4X04-series measurement boards, while its higher optical power allows more axes to be measured from one laser unit.
Specific applications include:
- Semiconductor wafer-stage metrology — nanometer-scale position feedback for precision motion stages.
- Precision machine-tool calibration — linear displacement, straightness, and positioning-error measurement.
- Optical-component manufacturing — precision positioning and dimensional verification.
- Multi-axis motion-stage characterization — interferometric feedback where one stabilized laser source serves multiple measurement paths.
A published experimental system provides a useful real-world reference: researchers used a ZYGO 7714 laser head together with ZMI 4004 and 2400 interferometer cards in an interferometric tracking system.
QA & Testing
Testing a ZMI 7714 is fundamentally different from testing a conventional industrial electronic module.
1. Physical inspection
- Verify the ZMI 7714 identification and revision.
- Inspect the optical interface and housing.
- Check for contamination or damage around optical surfaces.
- Examine cooling connections for evidence of leakage or corrosion.
2. Laser-output verification
The laser should be evaluated using suitable optical metrology equipment rather than a simple visual “laser-on” check. Verify optical output, beam characteristics, and frequency behavior against the applicable ZYGO specification.
3. Cooling-system test
Because the 7714 is water-cooled, verify coolant circulation and temperature stability before extended operation. A laser that initially produces light can still be unsuitable for precision metrology if thermal stabilization is abnormal.
4. Interferometer integration
Where possible, test the laser with the intended ZMI measurement electronics. ZYGO specifically lists the 7714 as compatible with its 240X and 4X04 measurement boards.
5. Final documentation
For new-surplus or refurbished inventory, record the exact model/revision, optical test results, cooling test, physical condition, and any service performed.
Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying a generic 632.8 nm He-Ne laser.
Wavelength alone does not make a replacement equivalent. The 7714 is a stabilized dual-frequency source with a defined frequency relationship and optical-isolation architecture. A conventional He-Ne tube cannot simply be substituted into the ZMI system.
⚠️ Trap #2 — Ignoring the water loop.
The 7714 is specifically water-cooled for improved frequency stability. ZYGO identifies water cooling as a distinguishing characteristic of the 7714/7724 class.
PRO TIP: When troubleshooting measurement drift, don’t immediately blame the interferometer card. Verify laser thermal stability and coolant conditions first.
⚠️ Trap #3 — Mixing laser and measurement-board specifications.
The achievable displacement resolution belongs to the complete interferometer system, not simply the laser head. ZYGO’s measurement-electronics documentation lists different system resolution and velocity figures depending on the measurement board and compatible laser.
⚠️ Trap #4 — Forgetting optical back-reflections.
The 7714’s optical isolation is there for a reason. Changes to interferometer geometry, mirrors, or optical components can affect reflected light returning toward the laser. ZYGO specifically identifies optical isolation as a feature of the 7714.
Dynamic FAQ
What is the ZYGO 7714?
The ZMI 7714 is a water-cooled, dual-frequency He-Ne laser head used as the optical source in ZYGO ZMI displacement-measurement interferometer systems.
What wavelength does the ZMI 7714 use?
The 7714 operates at the He-Ne wavelength of approximately 632.8 nm. Published ZMI-series information identifies it as a dual-frequency laser source.
What is the 7714 frequency split?
The nominal frequency separation is 20 MHz. Independent technical literature also reports a 20 MHz ± 1600 Hz frequency relationship for the ZYGO 7714 configuration discussed in the study.
Is the ZMI 7714 water-cooled?
Yes. ZYGO explicitly states that the 7714 and 7724 are water-cooled to provide greater frequency stability.
Which ZMI electronics are compatible with the 7714?
ZYGO lists the ZMI 240X and 4X04 series measurement boards as compatible with the 7714.
Is the ZMI 7714 still available?
ZYGO’s current website continues to list the ZMI 7714 Laser Head, including a product page and specification documentation. The ZYGO online store currently lists the product with an indicated standard lead time, although actual availability should be confirmed at the time of purchase.
How should New Surplus or Refurbished ZMI 7714 stock be verified?
For a precision-metrology application, request the actual unit’s identification label, revision information, optical test results, and cooling-system test record. A visual power-on test is not sufficient evidence that a used 7714 meets its frequency-stability requirements.
