ABB 07KT98B Advant Controller 31 PLC Basic Unit

Description

Product Introduction

The ABB 07KT98B is a high-performance AC31 programmable logic controller serving as the main CPU of the Advant Controller 31 automation platform. It integrates the processor, power supply, digital I/O, analog I/O, communication interfaces, and memory into a single DIN rail-mounted controller for machine and process automation.

Compared with earlier AC31 controllers, the 07KT98B offers larger program memory, integrated analog I/O, dual serial communication ports, a high-speed hardware counter, and support for network expansion through the CS31 system bus. Since the AC31 family has entered its lifecycle phase-out stage, verify hardware revisions and communication interfaces before purchasing replacement units.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s something every engineer maintaining legacy ABB systems eventually encounters.

A production line has been running for nearly twenty years. The PLC suddenly reports battery alarms, intermittent communication failures, or refuses to load the application after a power outage. Management asks whether the controller can simply be replaced.

Sometimes it can.

Sometimes the replacement controller has a different communication option, different firmware, or a different network interface, turning what looked like a one-hour maintenance job into an all-day commissioning exercise.

Typical Applications

Water Treatment — Pump station automation — Controls pumps, valves, and process instrumentation using integrated analog and digital I/O.

Power Generation — Auxiliary equipment control — Executes sequence logic while communicating with supervisory systems through Modbus.

Manufacturing — Packaging and assembly machines — Provides deterministic machine control with local I/O expansion through the CS31 bus.

Building Automation — HVAC systems — Integrates temperature sensors, dampers, and variable-speed drives into a centralized PLC.

Material Handling — Conveyor systems — Coordinates motors, sensors, and safety interlocks across distributed equipment.

Field Case Study

A municipal water treatment plant experienced repeated watchdog faults on a twenty-year-old AC31 controller. The original PLC had been operating continuously since commissioning.

The maintenance team installed a replacement 07KT98B, restored the application from backup, verified the CS31 remote I/O addresses, confirmed Modbus communication with the SCADA system, and replaced the backup battery before energizing the controller. The plant returned to automatic operation during the scheduled maintenance window, avoiding an emergency shutdown.

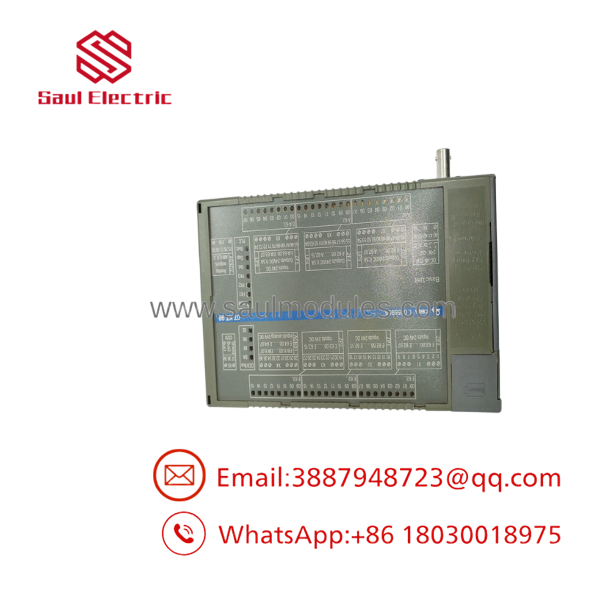

07KT98B

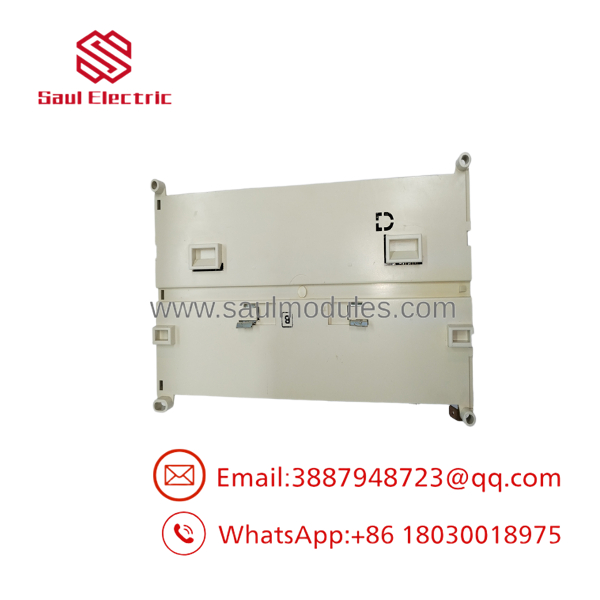

07KT98B

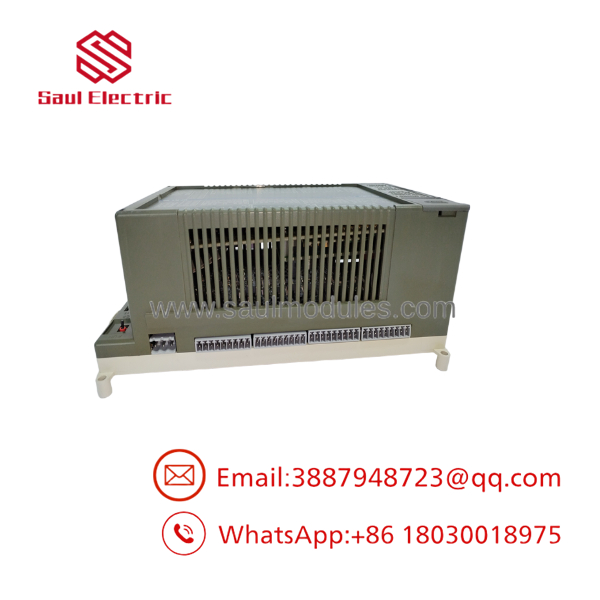

07KT98B

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB AC31 control systems whenever practical.

• Inbound Inspection
  • Verify ABB product labels and serial numbers.
  • Inspect housing, connectors, and removable terminal blocks.
  • Check for corrosion, cracked housings, or unauthorized repairs.
• Live Rig Testing
  • Power the controller using a regulated 24 VDC supply.
  • Verify normal CPU startup.
  • Test RUN/STOP functions.
  • Confirm communication through both serial ports.
• Electrical Parameter Checks
  • Test digital inputs and outputs.
  • Verify analog input and output operation.
  • Confirm CS31 bus communication.
  • Check high-speed counter functionality.
• Firmware Verification
  • Record firmware revision.
  • Verify memory integrity.
  • Confirm compatibility with the customer’s application.
• Final QC & Packaging
  • Complete functional inspection.
  • Install anti-static protection.
  • Secure removable connectors.
  • Package using shock-resistant materials.

The Veteran’s Tech Trap Guide

⚠️ Back up the application before removing the controller.

If the existing PLC still communicates, save the entire application, hardware configuration, and communication parameters. Finding the original programming file years later is rarely easy.

⚠️ Replace the backup battery during planned maintenance.

Battery warnings are often ignored until memory retention becomes unreliable after an extended power outage.

❗ Verify the communication interface.

Some 07KT98 variants support different networking options such as ARCNET, DeviceNet, Ethernet, or PROFIBUS. Two controllers may look identical but require different system configurations.

⚠️ Check every CS31 remote station before startup.

One incorrectly addressed remote I/O module can generate communication faults throughout the control network.

Frequently Asked Questions (FAQ)

Q1. What is the ABB 07KT98B?

It is the CPU and integrated I/O controller of the ABB Advant Controller 31 () PLC family, combining processor, communications, and local I/O in a single unit.

Q2. Is the 07KT98B still manufactured?

No. ABB identifies the Advant Controller 31 family as Phase-Out, so replacement units are typically sourced from surplus inventory or refurbished industrial spare parts suppliers.

Q3. Can I replace the controller without downloading the program?

Generally, no.

A replacement controller requires the correct application program, hardware configuration, communication settings, and I/O parameters before it can operate the machine.

Q4. Does it support Modbus communication?

Yes. The integrated RS-232 interfaces can be configured for Modbus Master, Modbus Slave, or programmable serial communication depending on the application.

Q5. Is the controller hot-swappable?

No.

Always isolate the 24 VDC supply before removing or installing the PLC. Disconnecting the controller while energized can interrupt field devices and corrupt the running application.

Q6. Why are surplus units less expensive than buying directly from the OEM?

Most available units come from plant modernization projects, unused maintenance inventory, or professionally refurbished stock. They remain suitable for maintaining legacy systems after OEM production has ended.

Q7. What should be verified before ordering?

Confirm the following:

• Controller Model: 07KT98B
• Complete ABB ordering number (for example, GJR5253100R3160)
• Communication interface option (Ethernet, ARCNET, PROFIBUS, DeviceNet, etc.)
• Firmware revision
• Installed application backup
• network configuration
• remote I/O configuration

Finally, compare the controller’s complete ordering number with the installed unit before ordering. Within the family, identical front panels do not always indicate identical hardware or communication capabilities.
