Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | DCF804-0050 |
| ABB Type Designation | DCF804-0050 |
| Product ID | 3ADT209026R0002 |
| Product Type | External single-phase field exciter |
| Excitation Control | Fully controlled 4-Q operation |
| Field Current Rating | 50 A DC |
| Input Voltage | 400 V AC nominal |
| Input Frequency | 50/60 Hz |
| Power Stage | Four anti-parallel thyristor power modules |
| Control Method | Microcontroller-controlled firing and field current regulation |
| Mounting Type | Panel mount |
| Protection Rating | IP20 |
| Operating Temperature | −20 °C to +60 °C |
| Net Weight | Approx. 9.5 kg |
Product Introduction

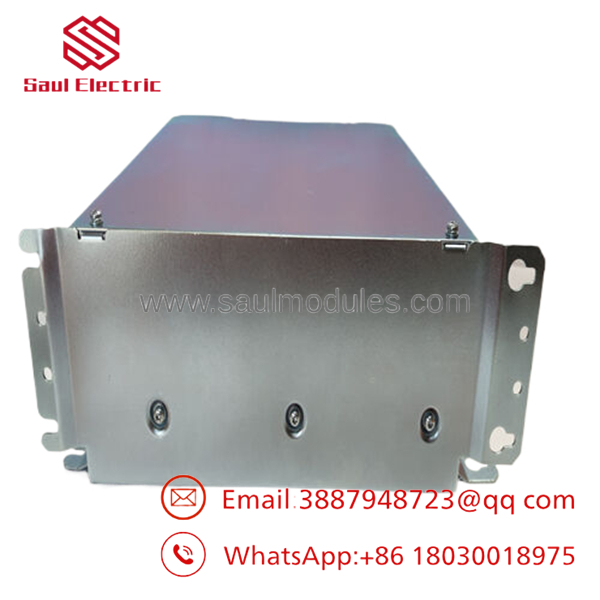

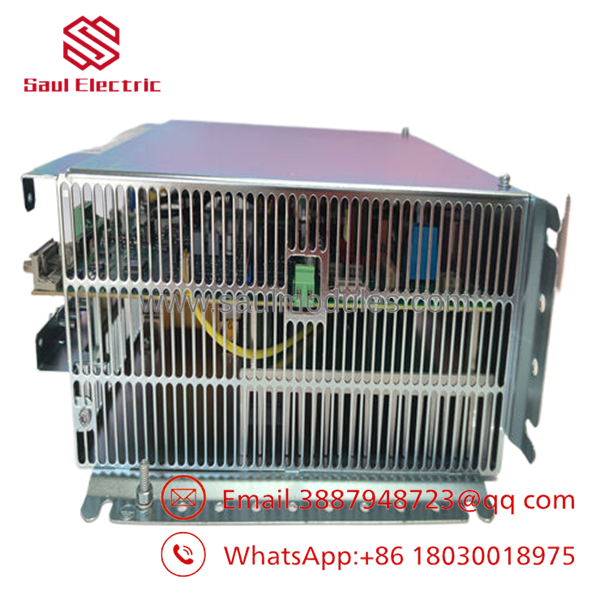

The ABB DCF804-0050 (3ADT209026R0002) is an external single-phase field exciter designed for DC drive excitation applications. It provides fully controlled 4-quadrant field current regulation using thyristor power modules and is commonly integrated with ABB DC drive systems such as DCS880 configurations.
This unit is selected for applications requiring controlled motor field excitation, including industrial DC motor systems and retrofit projects where original ABB field supply hardware must be replaced. Verify voltage, current rating, and system compatibility against the OEM documentation before installation.
- DCF804-0050
- DCF804-0050
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No field current output | Input power loss or blown protection device | ✅ High | Measure AC input voltage at supply terminals with multimeter | Confirm 400 V AC supply before replacing DCF804-0050 |
| Motor field not building voltage | Thyristor bridge fault or firing control issue | ✅ High | Check field output voltage and diagnostic status from drive system | Review drive alarms and test excitation circuit |
| Field current unstable | Incorrect parameters or feedback issue | ✅ High | Compare field current command vs actual feedback values | Verify drive configuration before replacing hardware |
| Communication/control fault | Control wiring or interface issue | ⚠️ Medium | Check control cable connections and terminal wiring | Confirm wiring matches original installation |
| Unit trips after startup | Overcurrent or incorrect field load | ⚠️ Medium | Measure field resistance and compare with motor specification | Check motor field circuit before installing replacement |
| Drive shows field converter error | DCF804 internal fault possible | ✅ High | Review fault history and inspect LEDs/status indicators | Provide diagnostic logs before replacement |
❗ Many replacement issues come from external wiring, field winding faults, or incorrect parameters rather than the module itself. Before replacing the unit, record drive parameters and take photos of terminal wiring. Contact technical support with photos and diagnostic logs if the fault remains unclear.
Frequently Asked Questions (FAQ)
A: It can replace the same ABB configuration when electrical ratings, control interface, and application requirements match. Always verify the exact ABB drive configuration before installation.
A: The uses a fully controlled 4-quadrant field converter design. The DCF803 series uses a different excitation control arrangement. Swapping them without checking the system design can cause commissioning problems.
Q: Can I power up the replacement unit immediately after installation?
A: Do not assume plug-and-run replacement. Check field wiring, input voltage, grounding, and parameter settings first. A wiring mistake on a DC excitation circuit can damage power components.
A: The module handles field excitation hardware control, but system parameters may be stored in the connected ABB drive controller. Save the existing configuration before removing the old unit.
Q: Why is this ABB part cheaper than buying from the factory?
A: Industrial spare units are often available through surplus channels, discontinued inventory, or automation stock suppliers. Confirm whether the item is New Original, New Surplus, or Refurbished before purchase.
Q: How should this module be tested before shipment?
A: Recommended inspection includes serial number verification, visual inspection, insulation resistance testing, control checks, and functional verification on a compatible ABB drive test setup where available.
A: The common mistakes are incorrect field wiring, missing grounding checks, and replacing the unit without documenting the original configuration. Take terminal photos before removal. It prevents avoidable commissioning delays.
