ABB 086388-001 LSP Linear Stepper Motion Control Module

Description

Product Introduction & Engineering Value

Precision positioning failures rarely appear as complete shutdowns. More often, engineers see gradual drift, inconsistent travel distances, or repeated calibration alarms. The ABB 086388-001 LSP Linear Stepper assembly provides controlled incremental motion for equipment requiring accurate mechanical positioning.

Designed as an OEM replacement component, this module supports maintenance teams working with ABB automation systems where exact hardware compatibility matters. Keeping verified spare motion assemblies available can reduce troubleshooting time and avoid extended equipment downtime.

Technical Specifications

Field Application & The “Trench” Experience

A factory maintenance team operating an automated inspection station began noticing inconsistent positioning during repetitive adjustment cycles. The machine would complete normal startup procedures, but the final positioning accuracy slowly degraded after several hours of operation.

Technicians checked mechanical guides, lubrication conditions, and motion controller parameters. The mechanical system showed no abnormal wear, so attention moved toward the linear stepper assembly. After replacing the aging ABB 086388-001 LSP module and verifying movement calibration, the equipment returned to stable positioning performance.

Typical application scenarios include:

• Precision inspection fixture positioning
• Automated calibration and measurement equipment
• Industrial assembly mechanisms requiring repeatable linear travel
• Legacy ABB machine motion subsystem maintenance

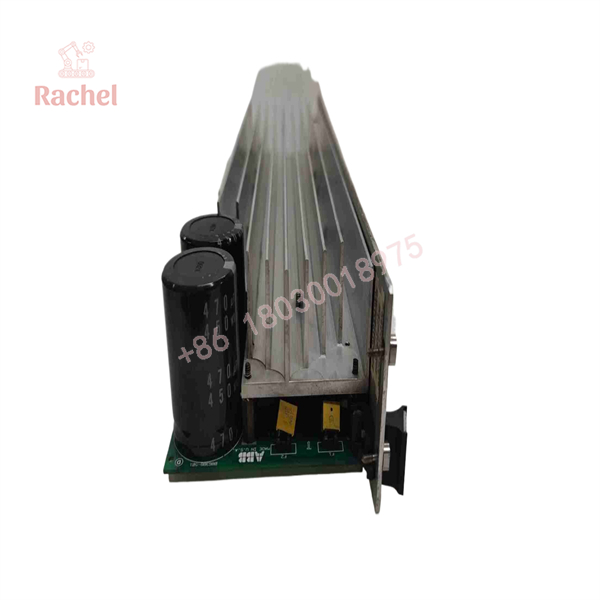

086388-001

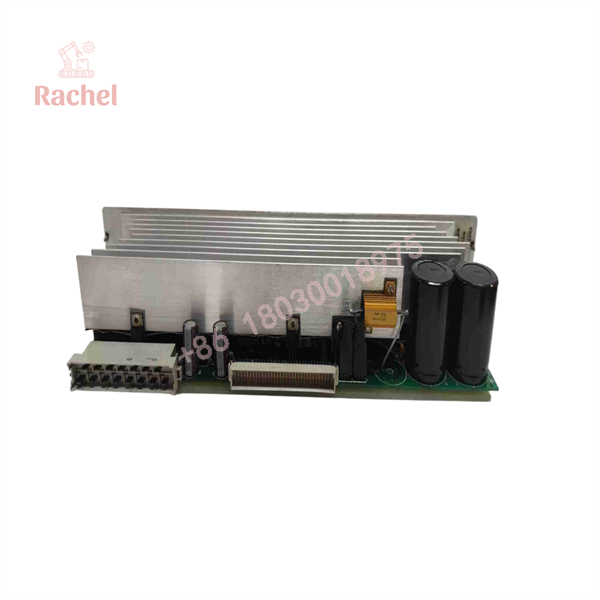

086388-001

Transparency SOP: QA & Testing

A linear stepper assembly requires both electrical and motion-related verification.

Testing workflow:

1. Physical inspection
   • Confirm ABB part marking
   • Inspect connectors and PCB condition
   • Check mechanical mounting points
2. Electrical verification
   • Verify circuit continuity
   • Check drive-related components
   • Inspect signal interfaces
3. Motion evaluation
   • Confirm step response
   • Verify movement direction
   • Check positioning repeatability where test equipment is available

Before installation, the replacement unit should be compared against the removed assembly, including revision markings and connector layout.

The Veteran’s Tech Trap Guide

⚠️ Do not assume a similar-looking stepper assembly is interchangeable.

ABB equipment often uses application-specific assemblies. Connector layout and mechanical dimensions may look identical while internal control characteristics differ.

⚠️ Calibration values can become the hidden failure point.

After replacement, the machine may require axis calibration or position reference procedures before returning to production.

⚠️ Avoid mechanical shock during handling.

Linear motion components contain precision mechanical structures. Impact damage may not be visible but can affect repeatability.

PRO TIP: Record the original travel range, error codes, and calibration values before replacement. This information helps verify whether the issue is hardware-related or system-related.

Dynamic FAQ

Q1. What is ABB 086388-001 used for?

ABB 086388-001 is an LSP Linear Stepper PWA assembly designed for precision linear motion applications within ABB equipment.

Q2. Is the 086388-001 a complete motor assembly?

The part is identified as a PWA LSP Linear Stepper component. The exact supplied configuration depends on the original ABB equipment installation.

Q3. Can this part directly replace an installed ABB module?

Direct replacement depends on equipment model, revision level, firmware requirements, and mechanical compatibility. Confirm the complete ABB part number before installation.

Q4. Is ABB 086388-001 available as new surplus?

Availability depends on supplier inventory. Units may be offered as new surplus, tested used, or refurbished industrial spare parts.

Q5. What should be checked after replacing the linear stepper module?

Verify wiring, motion direction, travel limits, calibration parameters, and system positioning accuracy before returning the machine to production.

Q6. What warranty is normally provided for ABB 086388-001?

Warranty terms depend on the supplier and the condition classification of the unit. New surplus and refurbished components usually have different warranty coverage, which should be confirmed before purchase.
