Product Introduction & Engineering Value
Unexplained field overcurrent trips on older ABB DC converters almost always trace back to failing field exciter boards. Thermal cycling causes solder bridge cracking on the power supply traces of the original field card, starving the motor field and triggering sudden overspeed faults under heavy loads.
The ABB SDCS-FEX-2A (3ADT311500R0001) resolves this failure mode directly. Mounted directly within the drive frame, it regulates single-phase AC line voltage into precise DC field excitation for DCS drive cabinets without requiring bulky external excitation units.
Technical Specifications
- Manufacturer Part Number: 3ADT311500R0001 (Type: SDCS-FEX-2A)
- AC Input Voltage: 110 VAC (-15%) to 500 VAC (+10%), single-phase
- Operating Frequency: 45 Hz to 65 Hz (matches converter supply)
- DC Output Current Range: 0.3 A to 16 A continuous (scaled via onboard current limits)
- Power Dissipation: \le 40 W at rated field current
- Isolation Rating: 600 VAC galvanic isolation
- Terminal Wiring Capacity: Cross-sectional wire area up to 4 mm^2 on Terminal X1
- Ambient Operating Temp: -20°C to +70°C
- Physical Footprint: 48 mm \times 102 mm \times 110 mm; approx. 0.22 kg
Field Application & The “Trench” Experience
During a planned turn-around at a Midwest rubber compounding plant, a 600 HP Banbury mixer drive failed to hold speed stability under load. Diagnostics showed field current collapsing from 12 A down to 1.8 A under thermal load. The original field board had swollen capacitors leaking electrolyte onto the current sensing traces. Swapping in a replacement SDCS-FEX-2A restored stable field current control within 45 minutes, allowing the mill to resume full-batch production before the rubber stock cooled in the hoppers.
Niche Industrial Applications:
- Continuous Tube Mill Flying Cut-Off: Maintains tight motor field regulation under rapid acceleration and deceleration cycles.
- Paper Machine Sectional Wire Drives: Provides stable excitation to prevent speed drift between adjacent dryer sections.
- Blast Furnace Skip Hoist Motors: Delivers reliable DC motor torque holding during critical high-angle material transport.
Transparency SOP: QA & Testing
- Visual and Structural Audit: Microscopic inspection of high-current trace paths, terminal screw blocks, and solder joints to detect thermal fatigue or micro-fissures.
- Component ESR Testing: Capacitance and Equivalent Series Resistance (ESR) checks on all onboard electrolytic filtering units.
- Bench Test Under Load: Installed on an ABB DCS drive test fixture, powered at 480 VAC, and loaded to 15 A DC field output for 4 continuous hours.
- Current Measurement Accuracy Check: Verification that feedback current signal U_{out} = 4 V \times \frac{I_{act}}{I_{lim}} matches actual current clamp readings within \pm 1.5\%.
- ESD Packaging: Sealed in anti-static shielding bags with desiccant before dispatch.

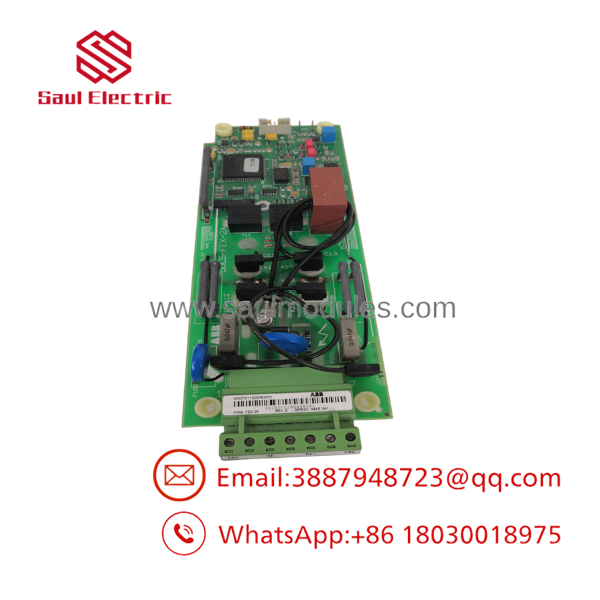

- 3ADT311500R0001 SDCS-FEX-2A

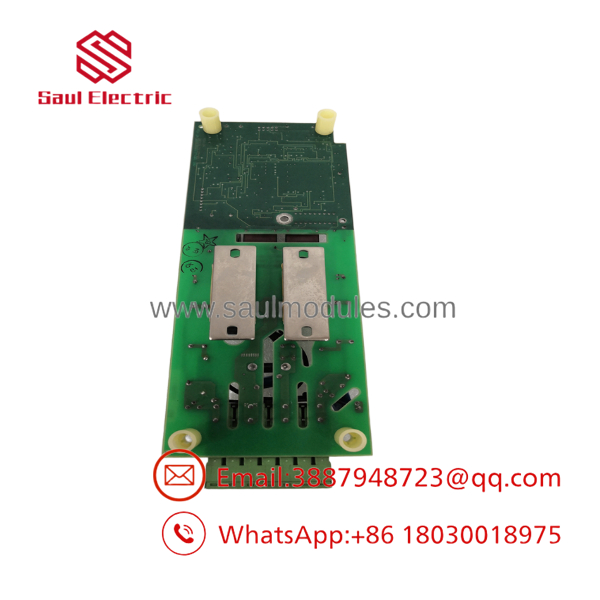

- 3ADT311500R0001 SDCS-FEX-2A
The Veteran’s Tech Trap Guide
⚠️ TRAP 1: Forgetting Current Limit Resistor/Jumper Configuration
The SDCS-FEX-2A uses hardware scaling for maximum field current (I_{lim} settings like 3A, 5A, 7A, up to 15A/16A). If you swap this board without matching the jumper links to your motor’s rated field current (I_f), the drive control card (SDCS-CON) will misread actual field current, leading to field weakening faults or burned field windings.
⚠️ TRAP 2: AC Line Fusing Mismatch
Never tie the AC input terminals of the directly to main busbars without semiconductor fuses. Fast-acting fuses rated specifically for branch excitation protection are required; standard breaker trips are too slow to protect the board’s internal diodes during supply surges.
PRO TIP: When installing, double-check cable screen grounding at Terminal X1. High-frequency noise from nearby armature SCR firing can induce ripple on the field current feedback signal if the shield is grounded at both ends improperly.
Dynamic FAQ
Q: Is the 3ADT311500R0001 drop-in compatible with older DCS500 and DCS600 drives?
A: Yes. The board was designed across multiple generations of ABB DC drives, serving as a direct replacement for older SDCS-FEX-1 or early-revision FEX cards, provided jumper scaling is matched.
Q: Does this card require parameter programming through the drive keypad after installation?
A: The board itself has no microcode or EEPROM. However, you must ensure the field current scaling parameters in the drive firmware (e.g., parameter 103.01 in DCS800) match the physical hardware jumper settings set on the board.
Q: How do you verify if the onboard current feedback signal is functioning properly?
A: Measure the voltage across the I_{ACT} test points. The board outputs a scaled 0 to 4 VDC signal representing actual field current relative to the selected I_{lim} ceiling.
Q: What condition is your stock, and what warranty covers “New Surplus” units?
A: We supply both Factory Sealed New Surplus and fully bench-tested refurbished units. Every module comes backed by a comprehensive 1-year replacement warranty.
