Description
Key Technical Specifications
| Parameter | Value |
| Manufacturer | ABB |
| Part Number | SAFT181INF / SDCS-INF-1 |
| Component Type | Main Circuit Interface and Pulse Transformer Board |
| Application Compatibility | ABB DCS 400 and DCS 500 DC Drives |
| Channels | 6-pulse thyristor bridge firing control |
| Isolation Voltage | Up to 600 V AC operational circuits |
| Input Logic Signal | Low-voltage CMOS/TTL gate commands from control board |
| Output Drive Capability | High-intensity gate pulse currents for SCR triggering |
| Cooling Requirements | Natural convection within drive enclosure |
| Ambient Operating Temp | 0 to +55 °C |
Product Introduction & Supply Chain Strategy
The ABB SAFT181INF is a dedicated interface and pulse transformer board utilized primarily within legacy DCS series DC industrial drives. It serves as the critical hardware bridge between low-voltage digital control logic and high-power thyristor firing circuits, providing electrical isolation and precise gate pulse shaping. In heavy industries like metals, paper, and mining, this card ensures stable torque and speed regulation for large DC motors by precisely switching the power bridge.
From a procurement perspective, maintaining this component as a New Surplus item is essential for minimizing your Total Cost of Ownership (TCO). Because this series has reached the End of Life (EOL) phase, direct OEM replacement lead times are highly unpredictable. Relying on refurbished alternatives introduces serious risks of component fatigue, specifically in the pulse transformers and isolation barriers. Securing functional, zero-hour buffer stock ensures continuous plant reliability and shields your operation from catastrophic revenue losses during sudden hardware failures.

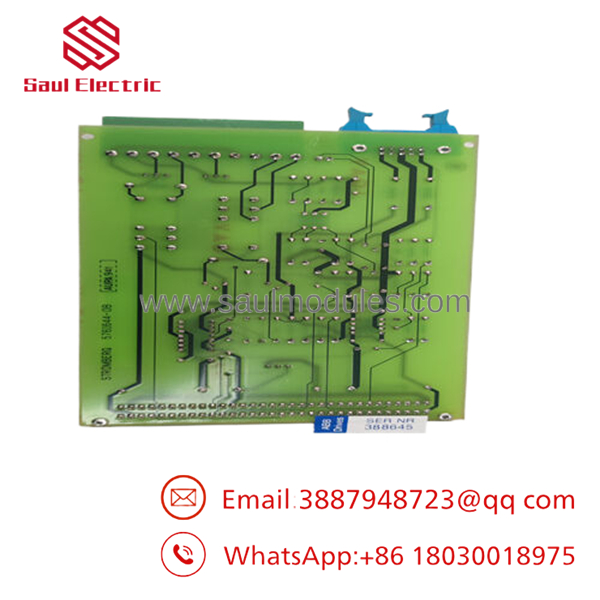

- SAFT181INF

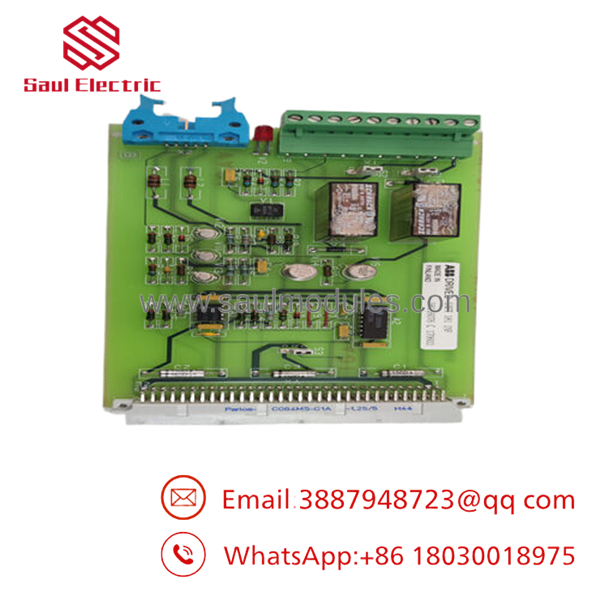

- SAFT181INF
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Execute full lock-out/tag-out (LOTO) procedures on the incoming AC feeder breaker and the auxiliary control power supplies. Verify zero voltage on all busbars using a calibrated digital multimeter.
- Put on a grounded ESD wrist strap and connect it to the unpainted chassis frame.
- Photograph the existing cable routing, terminal block connections, and any jumper blocks located on the failing card to ensure absolute fidelity during reconstruction.
Stage 2: Removal
- Carefully unclip the ribbon cables and external wire harnesses from the board connectors, applying pressure only to the connector bodies rather than pulling on the wires.
- Loosen the physical retaining screws securing the board to the drive housing.
- Extract the card straight toward you, ensuring you do not scrape the back of the card against the internal sheet metal or adjacent components.
Stage 3: Installation (Clone & Seat)
- Verify that all onboard hardware jumpers on the new surplus SAFT181INF match the configuration observed on the removed unit.
- Align the board with the factory mounting standoffs and gently slide it into place.
- Tighten the retaining screws to ensure proper ground continuity through the mounting points, and reattach all ribbon cables until they click firmly into position.
Stage 4: Power-On & Testing
- Reapply auxiliary control power while keeping the main 3-phase power isolated.
- Check the auxiliary 24 V and 5 V rails for any localized voltage drops or excessive heat buildup.
- Monitor the primary drive control panel for any interface or communication errors; once clear, clear LOTO restrictions on the main line and execute a slow-speed motor test rotation.
Firmware/Software Versions & Upgrade Notes
The SAFT181INF operates primarily as a hardware-level execution board rather than an intelligent microprocessor-based module. Consequently, it does not host independent software or flash firmware. However, its gate-firing pulse characteristics are tuned to align with specific revisions of the primary control boards (such as the SDCS-CON cards).
When replacing this card, check the revision index stamped on your drive’s firmware EPROMs. Substituting a revised board layout into an extremely old drive configuration can occasionally surface minor gate timing discrepancies if the primary controller is operating on software older than version 2.4. It is critical to perform a comprehensive drive auto-tuning routine immediately following a hardware swap to allow the control firmware to recalibrate its firing angle parameters to the new physical pulse characteristics.
Frequently Asked Questions (FAQ)
Is this board brand new, and why is the price different from factory pricing?
Yes, this is a genuine New Surplus unit. It has never been installed in a live production environment, contains zero hours of operation, and remains in its original packaging (opened solely for standard inbound quality control inspection). The pricing reflects our team’s investment in sourcing and verifying scarce, obsolete industrial components globally. While it costs slightly more than used or repaired alternatives, it avoids the astronomical markup of OEM special-order pricing while providing zero-hour operational reliability.
What are the specific risks of using a refurbished board instead of new surplus?
Refurbished pulse transformer cards pose high operational risks because pulse transformers and capacitors undergo thermal aging and dielectric breakdown under continuous high-power loads. Simple cosmetic cleanings or component switch-outs cannot fix micro-fractures in the transformer windings or insulation degradation. A breakdown in this section can let high-voltage AC feedback leak straight into your delicate DCS control racks, causing catastrophic system failures and tens of thousands of dollars in emergency repairs.
Does this interface card require any programming before it is ready for operational service?
No. The functions as a hardware interface and pulse distribution card, meaning it does not contain a programmable microprocessor. You do not need to download logic code or back up software parameters. Your only requirement is to verify that any hardware jumpers match the original board configuration before restoring power.
Can this board be hot-swapped while the DC drive is powered or running?
Absolutely not. Attempting to pull or insert the while control power or main line power is active will cause immediate electrical tracking, arc damage to the connector pins, and fatal damage to the primary drive control boards. Always verify complete isolation of all power sources before servicing the hardware.
What type of warranty protection do you provide with this item?
We back this New Surplus card with a comprehensive 1-year warranty from the date of shipment. This coverage matches standard OEM warranties and far exceeds the typical 30-day warranty offered on risky third-party refurbished items.
