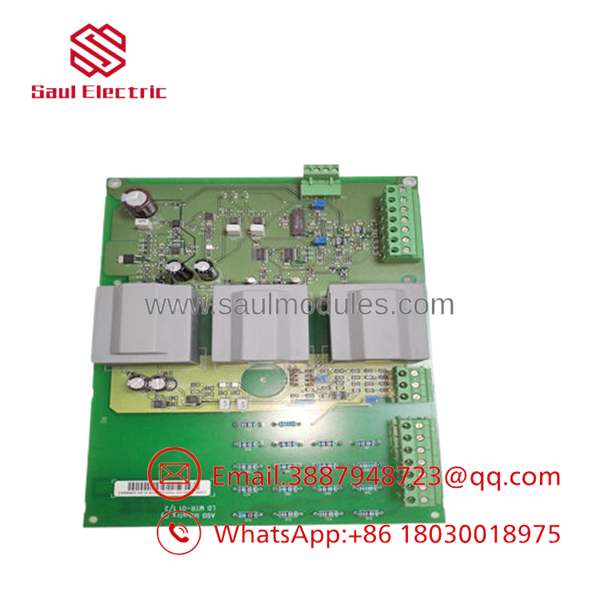

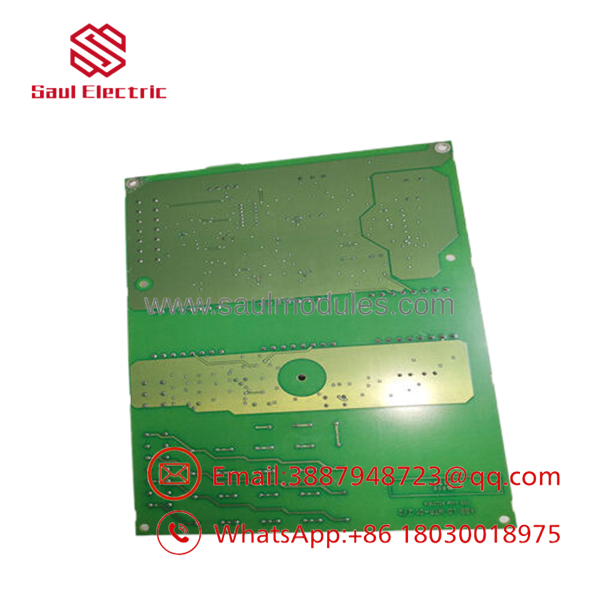

ABB 3BHB007445P0001 IGCT Power Unit

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB 3BHB007445P0001 is a core power module for the ACS6000 medium-voltage multidrive system and Unitrol excitation platform. Depending on the specific system integration, this component functions as a power phase module handling DC-to-AC inversion via IGBT technology, a measurement transducer conditioning signals for drive control, or an excitation control board managing thyristor firing and rectifier supervision. It is deployed in high-power applications such as mine hoists, large compressors, marine propulsion, and plant-critical pumps and fans.

Procuring this module as New Surplus is a calculated TCO decision. Refurbished power modules carry substantial risk: degraded IGCT junctions, compromised gate drive performance, capacitor aging, and latent thermal damage that no cosmetic cleanup reveals. A field failure in an ACS6000 module triggers an immediate drive shutdown on a multi-megawatt motor. The production loss from a single unplanned outage can exceed the module’s value by multiple orders of magnitude. This unit offers OEM-origin traceability, zero operational hours, full warranty, and verified signal integrity — eliminating the uncertainty of used or repaired components.

3BHB007445P0001

3BHB007445P0001

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

• Lock out and tag out the drive. Disconnect medium voltage input. Verify DC bus capacitors are fully discharged per ABB safety procedure.
• Wear appropriate PPE for MV work. Gather ESD wrist strap, documentation for fiber optic routing, and a camera for cable position records.
• Critical: This module supports hot-swap replacement in redundant configurations . In non-redundant systems, full shutdown is required.

Stage 2: Removal

• Identify and label fiber optic connections before disconnecting. Note any external wiring to terminal blocks (if applicable).
• Disengage the module retaining mechanism and withdraw the unit from the chassis slot using the extraction handles — do not force or rock.
• Place the removed unit on an ESD-safe surface.

Stage 3: Installation

• Slide the new module into the guide rails and insert fully until the retaining mechanism engages.
• Reconnect fiber optic cables to the exact ports from which they were removed. Reconnect any field wiring per your documentation.

Stage 4: Power-On & Testing

• Re-energize control power (24 V DC). Observe LED status: PWR/RDY should illuminate; ERR or FAULT should remain off.
• If the system supports hot-swap, wait for automatic recognition by the main controller.
• Verify communication handshake via the drive HMI or controller interface. Cycle loads to confirm proper power conversion operation.

Firmware/Software Versions & Upgrade Notes

This module has dedicated onboard firmware that governs the firing sequence, protection thresholds, and communication protocol . It is not user-configurable.

Version compatibility note: The 3BHB007445P0001 is a hardware-specific replacement. Earlier POS.A6031 versions are generally compatible with this module in terms of electrical interface and slot definition, but firmware revision must match the existing control system engineering files . Provide your current firmware version to ensure proper matching.

Critical warning: Hot-swapping is supported only in systems configured for online replacement. In non-redundant systems, inserting or removing a powered module will trigger a fault and may damage the backplane. Always verify the system configuration before attempting online replacement.

Frequently Asked Questions (FAQ)

Q: Why is this New Surplus cheaper than ABB list price but more expensive than refurbished units?
A: The price reflects sourcing verified, OEM-origin new units from global inventory. You avoid OEM full retail margin and the hidden failure risk of refurbished stock — compromised IGCTs, aged capacitors, and undocumented repairs that cause intermittent trips and drive faults.

Q: Is this module still active or is it EOL?
A: The 3BHB007445P0001 remains active in support for the extensive ACS6000 and Unitrol installed base.ABB has transitioned focus to newer platforms, but this module remains the approved spare for existing systems. Securing a new surplus unit now protects against future lead time increases.

Q: Can I hot-swap this module while the drive is running?
A: Yes, in redundant or configured-for-hot-swap systems. The module can be removed and replaced while the system remains online, minimizing downtime . Hot-swap is not supported in all configurations — confirm with your drive documentation.

Q: What does the ERR/FAULT LED indicate?
A: A lit ERR or FAULT LED may indicate: 24 V DC supply issues, firmware mismatch, backplane communication failure, or internal self-test fault Try a system reset. If the fault persists, check supply voltage and verify firmware version. Contact support for diagnosis.

Q: Does replacement require reloading drive parameters?
A: No. Drive parameters reside in the main controller memory. The module has no user-configurable storage. Reinstallation restores full functionality without parameter reload.

Q: What is the warranty period and coverage?
A: The module carries a standard 1-year warranty against manufacturing defects. Coverage applies to the module hardware — not to field wiring, installation damage, or external surges. All units are QC-tested before shipment to verify communication handshake and signal integrity.
