ABB 3BHB013088R0001 IGCT Module for ACS6000 Drives

Description

Product Introduction

The ABB 3BHB013088R0001, designated 5SHY3545L0010, is an Integrated Gate-Commutated Thyristor (IGCT) module used in ABB medium-voltage drive systems, including selected ACS5000 and ACS6000 platforms. It serves as one of the primary power-switching devices within the converter, handling extremely high voltage and current during motor control.

Unlike standard IGBT modules found in low-voltage drives, an IGCT is designed for megawatt-class applications where switching losses, surge capability, and thermal performance are critical. ABB later introduced 3BHE023784R0001 (5SHY3545L0014) as the official replacement, which is electrically compatible with the original module.

Key Technical Specifications

Verify the exact drive type code and spare parts list before ordering.

Application Scenarios & The “Trench” Experience

There are few failures more expensive than losing a medium-voltage drive during production.

A paper machine stops. A mine conveyor goes silent. A compressor feeding an entire process unit drops offline. In many cases, the fault isn’t the control electronics—it’s a failed power semiconductor that has reached the end of its service life after years of thermal cycling.

Typical Applications

Mining – Large conveyor drives – Handles megawatt-class motor switching where continuous operation is mandatory.

Power Generation – Boiler feed pumps – Provides high-current switching for critical auxiliary systems.

Metals Processing – Rolling mills – Supports high-torque motor control with repeated load changes.

Oil & Gas – Compressor drives – Required for medium-voltage VFD systems operating around the clock.

Pulp & Paper – Main process motors – Maintains reliable power conversion under continuous production loads.

Field Replacement Example

During a scheduled outage at a mining facility, an ACS6000 drive repeatedly reported power-stage faults. Inspection found one IGCT module with thermal damage after years of heavy-duty service.

Replacing only the affected 3BHB013088R0001, followed by insulation testing, gate-drive verification, and cooling system inspection, restored the converter without replacing the entire inverter stack. The maintenance window stayed on schedule, avoiding several additional days of production loss.

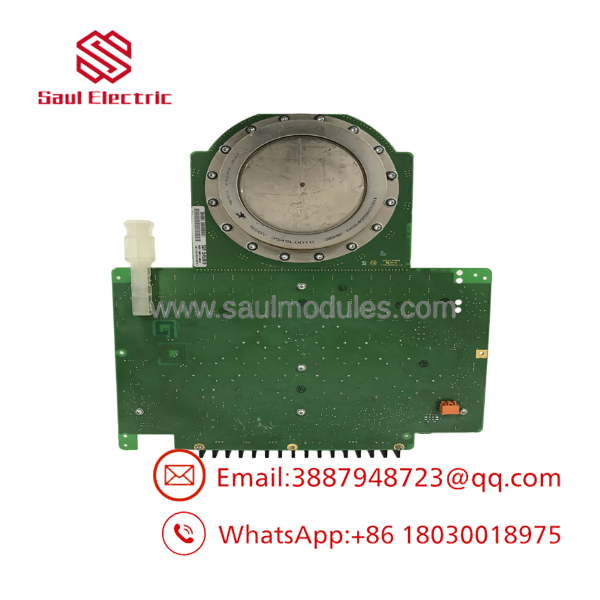

3BHB013088R0001

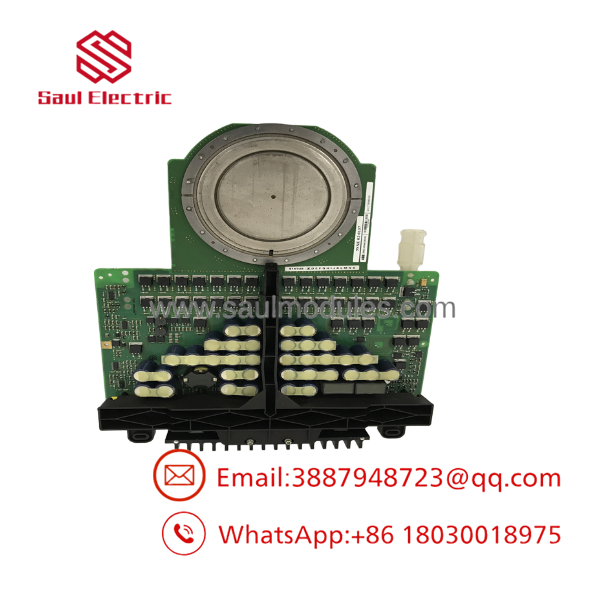

3BHB013088R0001

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB medium-voltage drive platforms whenever practical.

• Inbound Inspection
  • Verify ABB identification labels and date codes.
  • Inspect ceramic housing, terminals, and mounting surfaces.
  • Check for mechanical cracks or evidence of previous installation.
• Live Rig Testing
  • Verify module identification.
  • Confirm compatibility with gate-drive assemblies where applicable.
  • Inspect optical interface (replacement versions).
• Electrical Parameter Checks
  • Isolation resistance testing.
  • Junction integrity verification.
  • Terminal continuity inspection.
  • Visual examination for thermal stress.
• Firmware & Compatibility Verification
  • Record associated drive hardware revision.
  • Confirm correct replacement part number.
  • Document compatibility with customer equipment.
• Final QC & Anti-static Packaging
  • Final visual inspection.
  • Moisture-protected packaging.
  • Anti-static protection.
  • Shock-resistant shipping materials.

The Veteran’s Tech Trap Guide

⚠️ Don’t replace only the semiconductor without finding the cause.

IGCT modules rarely fail by themselves. Check cooling fans, heat sinks, DC bus capacitors, snubber circuits, and gate-drive boards before installing the replacement.

⚠️ Torque matters.

These modules mount directly to precision-machined cooling surfaces. Uneven tightening changes thermal contact and shortens service life. Follow ABB’s specified torque sequence.

❗ Inspect the cooling system.

One clogged cooling channel or reduced water flow can destroy an expensive IGCT long before the control system reports an alarm.

⚠️ Use the approved replacement.

ABB identifies 3BHE023784R0001 (5SHY3545L0014) as the replacement for 3BHB013088R0001. Although the newer module has slight physical differences, including an added fiber-optic status output, ABB states it is fully compatible for the intended drive applications.

Frequently Asked Questions (FAQ)

Q1. Is the ABB 3BHB013088R0001 still manufactured?

No. It has largely been superseded by ABB 3BHE023784R0001 (5SHY3545L0014), although surplus inventory of the original module is still available through industrial spare parts suppliers.

Q2. Can I replace it with 3BHE023784R0001?

Yes. ABB documentation identifies 3BHE023784R0001 as the official replacement and states it can be used without functional constraints in compatible applications.

Q3. Is this module hot-swappable?

Absolutely not.

This is a high-energy power semiconductor installed inside a medium-voltage converter. The equipment must be completely de-energized, isolated, and discharged before any service work begins.

Q4. Does replacing the IGCT require recalibration?

Generally, no software recalibration is required. However, ABB recommends verifying gate-drive operation, cooling performance, insulation resistance, and converter diagnostics before returning the drive to service.

Q5. Why is this module more expensive than a typical IGBT?

An IGCT is designed for medium-voltage converters operating at megawatt power levels. Its semiconductor structure, current capacity, packaging, and manufacturing process are considerably more demanding than those of conventional low-voltage IGBT modules.

Q6. What warranty is normally offered?

Most professional industrial surplus suppliers provide a 12-month warranty covering functional defects under normal operating conditions.

Q7. How can I verify that this is the correct replacement?

Confirm the following before ordering:

• ABB part number
• ABB type designation (5SHY3545L0010)
• Drive model (ACS5000/ACS6000 or applicable platform)
• Hardware revision
• Cooling assembly configuration
• OEM spare parts list

Finally, compare the complete drive serial number with the ABB spare parts documentation before installation. That extra verification can prevent an expensive ordering mistake.
