ABB 3BHE009017R0102 XVC724BE102 VLSCD Board

Description

Product Introduction

The ABB 3BHE009017R0102, designated XVC724BE102 (XV C724 BE102), is a Voltage Level Short Circuit Detection (VLSCD) board used in ABB medium-voltage drive systems. The board continuously monitors converter voltage levels and provides fast fault detection to protect expensive power semiconductors and associated converter assemblies.

To be honest, this is not a general-purpose control PCB. It performs a dedicated protection function inside the converter. If this board reports incorrect fault information—or fails completely—the drive may refuse to start or trip immediately after energization. Verify the exact hardware designation and spare parts manual before replacement.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s a situation many medium-voltage drive engineers recognize.

The converter finishes its pre-charge sequence normally. Cooling systems are healthy. Gate-drive diagnostics report no abnormalities. Then, milliseconds after enabling the power stage, the drive trips on a converter protection alarm. Hours are spent checking IGCTs, gate-driver boards, and busbars before someone discovers the VLSCD board is producing an invalid detection signal.

The board itself is relatively small.

The downtime it can create is not.

Typical Applications

Mining — Conveyor drive converters — Detects internal converter short-circuit conditions before semiconductor damage spreads.

Power Generation — Induced draft fan drives — Protects high-energy converter stages during transient faults.

Metals Processing — Rolling mill drives — Provides rapid fault detection during repeated acceleration and regenerative braking.

Oil & Gas — Compressor drives — Monitors converter voltage levels in continuous-duty applications.

Cement Industry — Kiln and mill drives — Supports converter protection where long production interruptions are extremely expensive.

Field Case Study

A cement plant experienced repeated converter trips on an ABB ACS2000 drive after replacing an IGCT assembly. Every semiconductor test passed, yet the converter refused to enter normal operation.

The maintenance team eventually isolated the fault to the 3BHE009017R0102 VLSCD board. After installing a verified replacement, confirming connector seating, and completing protection circuit checks, the converter commissioned successfully. What initially looked like a major power-stage failure turned out to be a protection board fault that prevented normal startup.

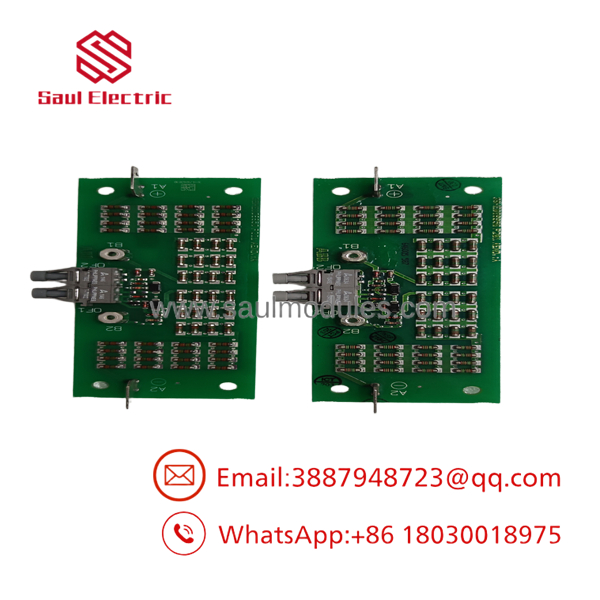

3BHE009017R0102 XVC724BE102

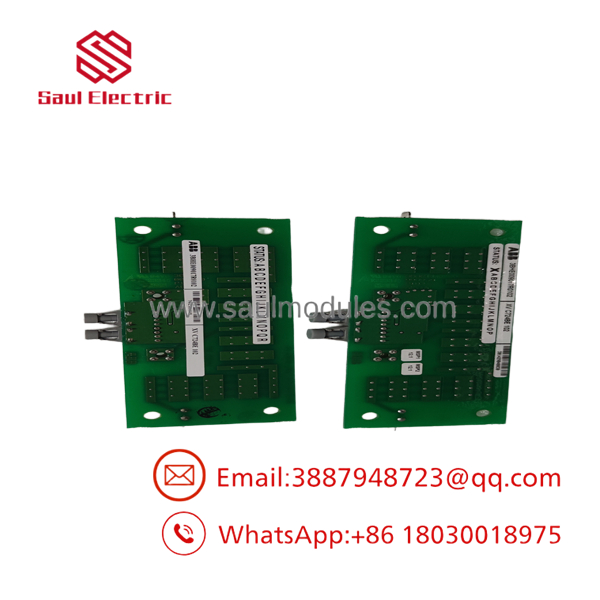

3BHE009017R0102 XVC724BE102

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB medium-voltage drive platforms whenever practical.

• Inbound Inspection
  • Verify ABB product labels and serial identification.
  • Inspect conformal coating and PCB surfaces.
  • Check connectors for bent pins, oxidation, or mechanical damage.
• Live Rig Testing
  • Install the board in a compatible ABB test platform.
  • Verify startup diagnostics.
  • Confirm normal communication with the protection system.
• Electrical Parameter Checks
  • PCB continuity inspection.
  • Connector integrity verification.
  • Isolation testing where applicable.
  • Visual inspection for overheated components.
• Firmware & Identification Verification
  • Record hardware designation.
  • Verify spare part number against ABB documentation.
  • Confirm board revision before shipment.
• Final QC & Anti-static Packaging
  • Final inspection.
  • Anti-static moisture-barrier packaging.
  • Shock-resistant export packing.
  • Serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Don’t replace this board just because the converter reports a protection fault.

In our field experience, defective gate-driver boards, failed IGCTs, or damaged clamp circuits can generate the same alarm.

⚠️ Inspect every connector carefully.

Medium-voltage converters generate vibration over many years. A partially seated ribbon cable can create intermittent protection faults that are extremely difficult to reproduce.

❗ Never mix board revisions without checking compatibility.

Boards with nearly identical part numbers may belong to different hardware revisions. Always compare the complete ABB spare part number before installation.

⚠️ Check the surrounding power stage.

If the original VLSCD board failed because of an actual converter short circuit, installing a new board without repairing the underlying fault usually results in another immediate failure.

Frequently Asked Questions (FAQ)

Q1. What does the ABB 3BHE009017R0102 actually do?

It is a Voltage Level Short Circuit Detection (VLSCD) board that monitors converter voltage conditions and supports the protection system inside ABB medium-voltage drives.

Q2. Which ABB systems use this board?

ABB documentation lists the board as a spare part used in ACS2000 medium-voltage drive phase modules. Always verify the complete drive type code and spare parts list before ordering.

Q3. Can this board be hot-swapped?

No.

The converter must be fully de-energized, isolated, and discharged before replacing any internal protection board.

Q4. Does replacing this board require parameter changes?

Generally, no. Since it is a dedicated protection PCB rather than the main control processor, parameter restoration is typically unnecessary. However, a complete converter functional test should always be performed after installation.

Q5. Why does the drive still trip after replacing the board?

The VLSCD board may only be reporting another fault. Check the IGCT modules, clamp network, gate-drive electronics, DC bus, and associated wiring before assuming the replacement board is defective.

Q6. What warranty is normally available?

Most professional industrial surplus suppliers provide a 12-month warranty against functional defects, subject to the supplier’s published warranty terms.

Q7. How can I confirm this is the correct spare part?

Verify all of the following before ordering:

• ABB Part Number: 3BHE009017R0102
• ABB Type Designation: XVC724BE102 (XV C724 BE102)
• Drive Platform: ABB ACS2000
• Hardware Revision
• Cabinet Configuration
• Official ABB Spare Parts Manual

Finally, compare the installed board with the converter’s OEM spare parts documentation. In medium-voltage equipment, matching the exact part number is far less expensive than troubleshooting an incompatible replacement.
