Description
Product Introduction & Engineering Value
When an ABB IRC5 robot drops out on a 38401 “Drive Unit Error” in the middle of a welding cycle, your entire production cell freezes. The ABB 3HAC025338-006 (often cataloged as DSQC617 or Main Drive Unit D6 3W 3V) forms the heart of the IRC5 drive system. It handles power conversion and real-time current loop control for both primary positioning axes and wrist articulation motors.
Swapping in a genuine 3HAC025338-006 drive unit restores exact current loop parameters without requiring time-consuming motor tuning or resolver recalibrations. Its factory-integrated brake control circuits and DC-bus energy balance networks protect motor windings against regenerative voltage spikes during heavy dynamic deceleration passes.
Technical Specifications
- ABB Part Identifier: 3HAC025338-006 (Exchange Part ID: E3HAC025338-006)
- Designation Code: DSQC617 / Main Drive Unit D6 3W 3V
- Target Controller: ABB IRC5 Robot Controller Platform
- Axis Drive Configuration: Multi-axis drive handling high-power main axes and secondary wrist axes
- Power Stage Semiconductor: High-frequency IGBT power inverter bridge
- Feedback Compatibility: Resolvers and Serial Measurement Board (SMB) interfaces
- Internal DC-Bus Input Voltage: Nominal 262–340 V DC (supplied by IRC5 Rectifier Unit)
- Cooling Interface: Forced air cooling via internal IRC5 cabinet fan array
- Net Unit Weight: 11.10 kg (24.47 lbs)
- Country of Origin: Ireland (IE)
Field Application & The “Trench” Experience
The Field Story
An automotive body-in-white plant experienced intermittent axis 2 overcurrent faults on an IRB 6640 robot during high-speed spot welding moves. Initial troubleshooting pointed toward the motor cable, but insulation checks came back clean. Thermal imaging of the IRC5 controller cabinet revealed an internal short-circuiting IGBT channel on the 3HAC025338-006 main drive unit caused by continuous cyclic thermal loading. Installing a fresh 3HAC025338-006 drive module cleared the current bias error instantly, allowing the cell to achieve full line rate on the very next cycle.
Critical Niche Applications
- Automotive Robotic Spot & Arc Welding: Heavy payload wrist and main-axis manipulation under continuous high-duty cycles.
- High-Speed Material Handling & Palletizing: Rapid acceleration profiles where regenerative braking energy stresses drive power transistors.
- Foundry & Machining Tend Applications: Operating inside enclosed cabinets subjected to high ambient thermal fluctuations.

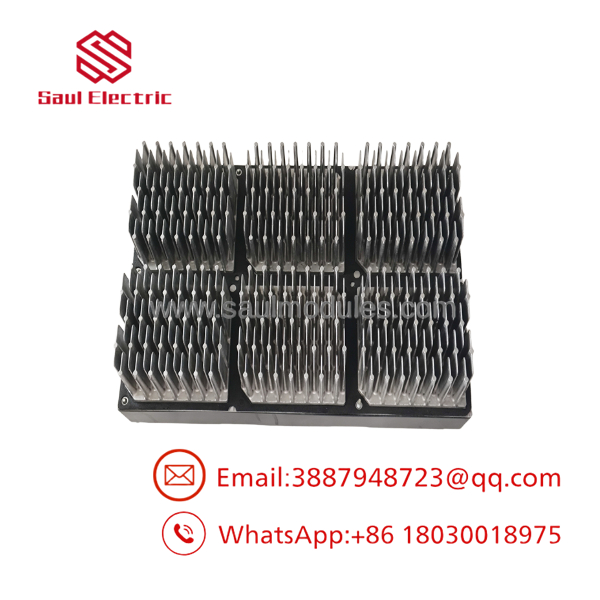

- 3HAC025338-006

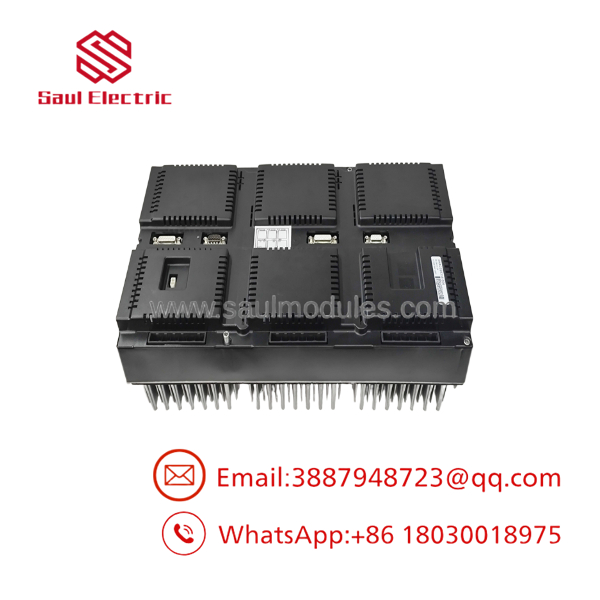

- 3HAC025338-006
Transparency SOP: QA & Testing
Every replacement 3HAC025338-006 main servo drive unit passes through an exhaustive multi-point bench validation before entering our ready-to-ship inventory:
- IGBT Bridge & Diode Inspection: Static meter checks across all internal inverter channels to verify zero junction degradation, gate leaks, or thermal stress fractures.
- Capacitance & Power Rail Stress Test: DC bus capacitor array ESR testing to verify energy storage integrity under full voltage load.
- Full-Load Robotic Test Stand Loop: Mounting the drive inside an active testing rig, driving loaded robot axes through continuous 100% duty cycle speed profiles.
- Brake Relay & Safety Circuit Check: Verifying proper 24V mechanical brake release signal timing and thermal feedback monitoring functions.
The Veteran’s Tech Trap Guide
- ⚠️ DANGER: High-Voltage DC Bus Discharge Delay! Never pull the 3HAC025338-006 drive unit immediately after dropping main power. The DC bus capacitors store lethally high voltages. Wait at least 5 minutes after turning off the main switch, and measure DC bus test points to ensure potential has dropped below 50V DC before disconnecting power leads.
- PRO TIP: Check the Rectifier Unit First. If the drive unit threw a “DC Bus Undervoltage” fault, verify the incoming supply from the DSQC rectifier block before condemning the drive. A soft-charge contactor failure on the rectifier often mimics a drive module defect.
- PRO TIP: Mind the Backplane Signal Connectors. When sliding the 11.1 kg module back into the cabinet rack, align the rear guidance pins carefully. Forcing the drive into place can bend delicate signal header pins on the backplane interface board.
Dynamic FAQ
Q: Is the 3HAC025338-006 interchangeable with the older DSQC617 drive versions?
A: Yes. The 3HAC025338-006 is the official ABB part designation for the DSQC617 Main Drive Unit D6 3W 3V, making it a direct drop-in replacement across compatible controller variants.
Q: What does the “D6 3W 3V” designation mean?
A: This code defines the internal drive topology: a Drive 6-axis hardware setup utilizing 3 “Wide” power channels (high current for main axes 1-3) and 3 “Variant” power channels (for wrist axes 4-6).
Q: Do I need to reload robot system software (RobotWare) after replacing this drive unit?
A: No. The drive unit functions as hardware execution power electronics. The main computer card retains all system parameters and motion paths, meaning the drive will initialize automatically once communication is established.
Q: Are these units supplied with warranty protection?
A: Yes. Whether supplied as New Surplus, Certified Exchange, or Refurbished, all 3HAC025338-006 units include a comprehensive 12-month operational warranty.
