ABB 3HAC13389-2 DSQC 611 Spare Board

Description

Product Introduction

The ABB 3HAC13389-2, designated DSQC 611, is a contactor interface board used in ABB IRC5 robot controllers. It supervises and controls the main contactor circuit, ensuring that motor power is applied and removed according to the controller’s operating logic and safety requirements.

To be honest, this board rarely attracts attention until a robot refuses to enable its drives. Although physically compact, the DSQC 611 performs a safety-related function between the IRC5 controller and the robot power circuit. Before replacement, verify the controller version, spare part number, and system configuration to avoid compatibility issues.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s a familiar midnight maintenance call.

An IRC5 controller boots normally. The FlexPendant communicates correctly. No obvious system faults appear. Then the controller reports “Motors On Failed” or refuses to energize the robot drives. Operators suspect servo amplifiers, but the actual problem is the contactor control circuit.

That’s where the DSQC 611 enters the troubleshooting process.

Typical Applications

Automotive Manufacturing — Spot welding robots — Controls the main power contactor before servo drive activation.

Material Handling — Pick-and-place robots — Ensures safe motor power sequencing during automatic operation.

Machine Tending — CNC loading robots — Monitors contactor status and prevents unsafe startup conditions.

Packaging Lines — High-speed robotic cells — Coordinates emergency stop recovery and drive enable logic.

General Robotics — IRC5-controlled systems — Provides reliable contactor supervision within the robot controller.

Field Case Study

An automotive supplier experienced repeated startup failures after replacing a damaged main contactor. Electrical measurements confirmed the new contactor was functional, yet the robot remained in a “Motors Off” condition.

The maintenance team traced the problem to a failed ABB 3HAC13389-2 DSQC 611. After installing a verified replacement, checking wiring continuity, and clearing controller faults, the IRC5 completed its startup sequence and the production cell returned to operation before the next shift.

3HAC13389-2

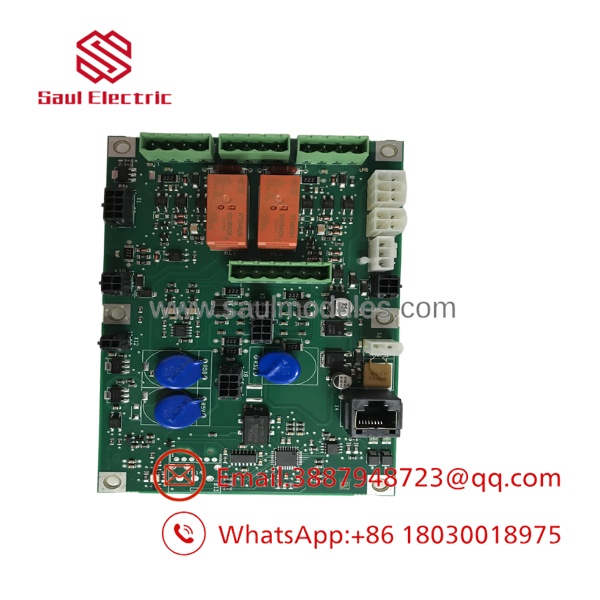

3HAC13389-2

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB controller platforms whenever practical.

• Inbound Inspection
  • Verify ABB labels and PCB identification.
  • Inspect solder joints and connector pins.
  • Check for overheating, corrosion, or unauthorized repairs.
• Live Rig Testing
  • Install in an test controller.
  • Verify controller boot sequence.
  • Confirm contactor activation logic.
  • Check controller diagnostics.
• Electrical Parameter Checks
  • PCB continuity testing.
  • Connector integrity verification.
  • Power rail inspection.
  • Signal path validation.
• Hardware Verification
  • Record board revision.
  • Verify DSQC 611 identification.
  • Confirm compatibility with the requested configuration.
• Final QC & Packaging
  • Functional inspection.
  • Anti-static packaging.
  • Shock-resistant protective materials.
  • Serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Don’t replace the board before checking the contactor.

In our field experience, worn contactor coils, damaged auxiliary contacts, or loose wiring often generate the same symptoms as a failed DSQC 611.

⚠️ Verify every safety circuit first.

An open emergency-stop loop or safety relay fault can prevent motor enable even when the DSQC 611 is operating correctly.

❗ Inspect connector pins carefully.

Repeated maintenance inside the cabinet sometimes bends connector pins or leaves ribbon cables partially seated. That can create intermittent startup failures that are difficult to diagnose.

⚠️ Check the replacement part number.

Although 3HAC13389-2 replaces 3HAC020849-001, always verify the spare parts list for your specific controller revision before installation.

Frequently Asked Questions (FAQ)

Q1. What is the function of ABB 3HAC13389-2?

It is the DSQC 611 contactor unit, responsible for controlling and monitoring the main contactor circuit inside an ABB robot controller.

Q2. Which ABB robot controller uses this board?

It is designed for ABB panel-mounted controllers. Always verify the controller configuration and spare parts documentation before ordering.

Q3. Can this board be replaced while the controller is energized?

No.

Disconnect mains power, wait for the DC bus to discharge, and follow ABB lockout/tagout procedures before servicing the controller.

Q4. Is programming required after replacement?

Normally, no application programming changes are required because the DSQC 611 is a hardware interface board. However, complete functional testing, safety validation, and controller diagnostics should be performed before returning the robot to production.

Q5. Why won’t my robot enable the motors after replacing this board?

The fault may originate elsewhere. Check the main contactor, emergency-stop circuit, safety board, drive system, controller event log, and field wiring before concluding that the replacement board is defective.

Q6. What warranty is typically available?

Most professional industrial surplus suppliers offer a 12-month warranty for new surplus or professionally refurbished units.

Q7. What should be verified before ordering?

Confirm the following:

• ABB Part Number: 3HAC13389-2
• Board Designation: DSQC 611
• Robot Controller:
• Controller Hardware Revision
• Replacement Reference: 3HAC020849-001
• Controller Spare Parts Manual

Finally, compare the installed board with the controller’s spare parts list and hardware revision. In ABB robotic systems, matching the exact spare part number is the safest way to avoid commissioning delays.
