Product Introduction & Engineering Value
When an intermediate frequency phase leg in a medium-voltage converter suffers a semiconductor failure, the resulting overcurrent can knock out an entire industrial plant’s drive lineup. The ABB 5SHX2645L0002 (order code 3HB012961R0001 / 3BHB012961R0001) is a high-power Reverse-Conducting IGCT (RC-IGCT) designed for the demanding switching duties of ABB ACS6000 series drives. By co-packaging a GCT switching wafer, anti-parallel diode, and low-inductance perimeter gate drive board, it delivers hard-switching turn-off performance without relying on bulky, high-loss snubber networks.
Inserting an exact-spec 5SHX2645L0002 module ensures total electrical symmetry across the power stack assembly. Its factory-matched gate ring PCB eliminates gate delay skews, guaranteeing synchronized commutation and optimal thermal distribution across multi-megawatt drive bridges during rapid dynamic load transients.
Technical Specifications
- ABB Type Code: 5SHX2645L0002
- ABB Part Identifier: 3HB012961R0001 / 3BHB012961R0001
- Semiconductor Topology: Reverse-Conducting Integrated Gate-Commutated Thyristor (RC-IGCT)
- Peak Repetitive Off-State Voltage (V_{DRM}): 4500 V
- Max Controllable Turn-Off Current (I_{TGQM}): ~2645 A
- Gate Control Link: Dual fiber-optic receiver/transmitter interface for low-inductance optical triggering
- Gate Unit Auxiliary Supply: Direct DC link feed via perimeter connector ring
- Mechanical Design: Hermetically sealed press-pack wafer disc with perimeter gate board
- Cooling Method: Double-sided press-pack cooling interface (Oil / Deionized Water / Air)
- Operating Junction Temperature (T_j): −40°C to +125°C
- Physical Dimensions: ~292 mm x 352 mm x 65 mm (Package outer envelope)
- Unit Weight: ~3.4 kg (7.5 lbs)
Field Application & The “Trench” Experience
The Field Story
A major chemical refinery experienced an unexpected trip on its 12MW main synthesis gas compressor driven by an ABB ACS6000 converter. Diagnostic logs flagged an optical gate feedback fault on Phase B of the inverter bridge. Inspection showed that an aging 5SHX2645L0002 module had developed gate-driver power degradation due to thermal stress on the perimeter PCB capacitors. The maintenance crew swapped out the faulty puck, thoroughly polished the liquid-cooling heat sinks, applied fresh thermal foil, and torqued the stack frame to factory spec. The drive was successfully re-energized and hit 100% throughput on the first try, avoiding an extended multi-day catalytic process shutdown.
Critical Niche Applications
- ACS6000 Medium-Voltage Drive Inverters: Main power switching element in high-capacity PEBB (Power Electronic Building Block) modules.
- Static Synchronous Compensators (STATCOM): Grid integration and reactive power compensation systems requiring high-voltage, fast-switching capabilities.
- Mine Hoist & Dragline Drives: Heavy cyclic reversing drives needing low conduction loss under severe low-speed high-torque loading.

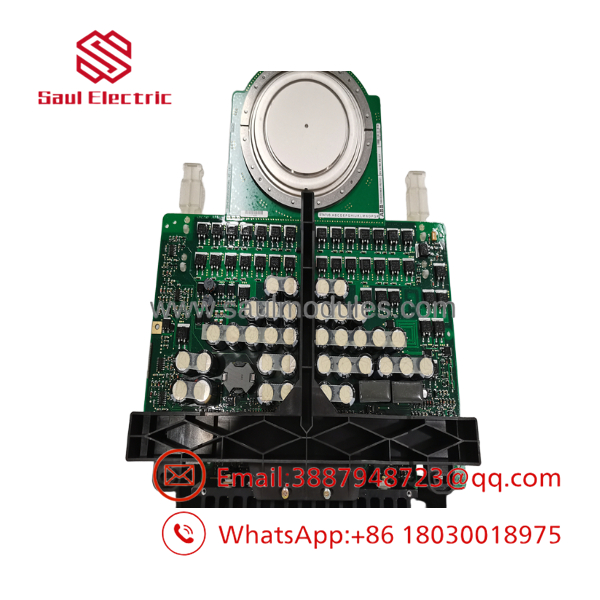

- 5SHX2645L0002 3HB012961R0001

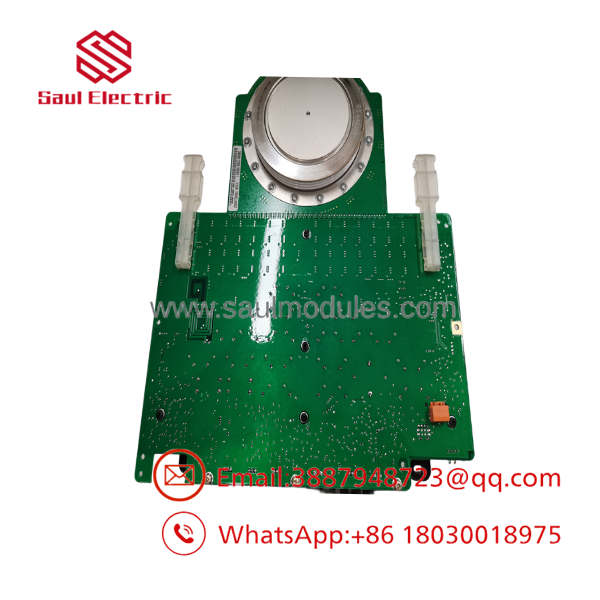

- 5SHX2645L0002 3HB012961R0001
Transparency SOP: QA & Testing
- Press-Pack Mechanical & Surface Integrity Audit: Microscopic inspection of the copper contact poles to verify zero surface oxidation, scratches, or copper pitting that could impede thermal and electrical contact.
- Gate Unit Board Parametric Diagnostics: Testing the onboard gate driver board’s energy storage array, optoelectronic transceivers, and power regulators for exact voltage tolerances.
- Optical Switching Pulse Verification: Supplying auxiliary DC power to the gate ring and firing test light pulses to confirm precise, delay-free gate turn-on and turn-off response.
- Static High-Voltage Blocking & Leakage Testing: Testing off-state voltage holding capability under high voltage to measure leakage currents against factory limits.
The Veteran’s Tech Trap Guide
- ⚠️ DANGER: Precise Hydraulic/Mechanical Clamping Force is Critical! Press-pack IGCTs like the 5SHX2645L0002 rely on exact mechanical clamping pressure (kN) to ensure wafer-to-pole electrical contact and uniform heat transfer. Never guess tightening torque by hand. Under-clamping causes localized thermal hot spots that will destroy the silicon wafer within seconds of operation; over-clamping cracks the internal ceramic housing.
- PRO TIP: Handle the Fiber-Optic Ports with Care. The optical transceivers on the perimeter gate ring are sensitive to dust and mechanical strain. Always leave protective dust caps on until the optical cables are ready to snap in. Never bend fiber lines past their minimum bend radius during installation.
- PRO TIP: Ensure Complete Flatness of Heat Sink Surfaces. Before seating the new 3HB012961R0001 module into the stack frame, clean the adjacent liquid-cooled heat sink surfaces thoroughly with isopropyl alcohol. Even microscopic debris will create localized high-resistance thermal traps.
Dynamic FAQ
Q: Is the 3HB012961R0001 part code interchangeable with 3BHB012961R0001 and 3BHB012961R0002?
A: Yes. These codes represent part number evolutions and revision updates for the exact same physical IGCT device family (type 5SHX2645L0002) used across ABB ACS6000 converter platforms.
Q: What is the main advantage of an RC-IGCT (Reverse-Conducting IGCT) over a standard GCT?
A: A Reverse-Conducting IGCT integrates both the GCT switching structure and an anti-parallel freewheeling diode onto the same silicon wafer substrate. This reduces total component count inside the power module stack, cuts weight, and reduces overall parasitic inductance.
Q: Does the 5SHX2645L0002 module require an external gate drive board?
A: No. The module features a built-in, factory-calibrated perimeter gate driver ring attached directly to the press-pack housing. You only connect auxiliary power and fiber-optic control lines directly to the module.
Q: What warranty is supplied with these replacement modules?
A: Every unit—whether New Surplus or factory reconditioned/tested—is backed by a standard 12-month operational warranty.
