ABB 5SHY3545L0014 IGCT Power Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

ABB 5SHY3545L0014 is a high-power IGCT module used in ABB power conversion equipment. Public listings tie it to ABB converter platforms and describe it as a press-pack semiconductor device for demanding high-voltage, high-current applications.

From a spare-parts standpoint, this is not a casual shelf item. Keep it under a buffer-stock policy, because a failure here can stop a drive train or converter line immediately, and lead time variability makes emergency procurement expensive. New Surplus protects TCO better than buying questionable condition stock.

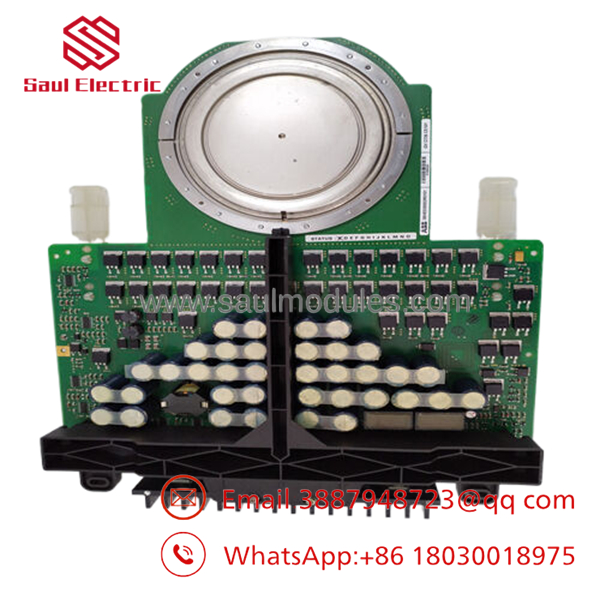

5SHY3545L0014

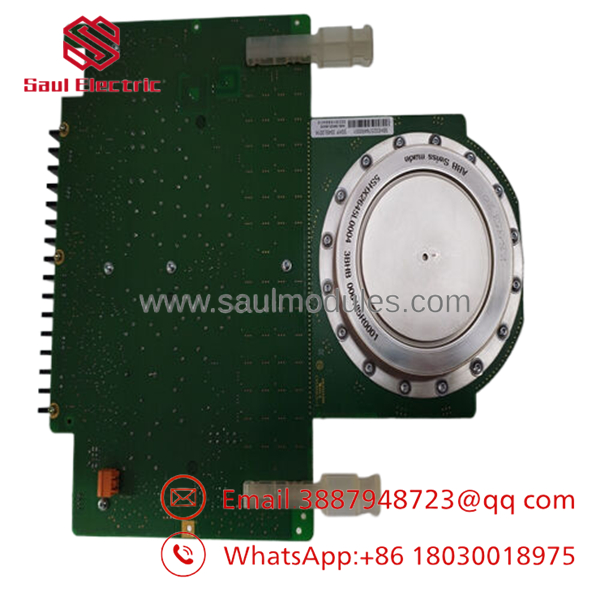

5SHY3545L0014

Installation & Configuration Guide

Stage 1: Pre-Installation

1. Apply lock-out/tag-out and confirm all energy sources are isolated.
2. Use an ESD strap, clean gloves, and approved lifting support.
3. Record the existing module orientation, clamping hardware, and cooling connections.
4. Photograph all labels, fiber links, and any control wiring before removal.

Stage 2: Removal

1. Allow the converter to fully discharge and verify zero voltage.
2. Remove cooling and mechanical retainers in the correct sequence.
3. Release the press-pack assembly carefully to avoid uneven stress.
4. Inspect the heatsink, clamping surfaces, and interface pads for wear or contamination.

Stage 3: Installation

1. Verify the replacement is the exact 5SHY3545L0014 / 3BHE023784R0001 cross-reference.
2. Clean and inspect all thermal and contact surfaces.
3. Install the module with correct clamp force and aligned orientation.
4. Reconnect cooling and control links exactly as documented.

Stage 4: Power-On & Testing

1. Pressure-test the cooling circuit before energizing.
2. Check for shorts and insulation issues on the power path.
3. Start the converter at reduced load and watch alarms and temperature rise.
4. Confirm gate-drive response, fault clearing, and normal power transfer.

Firmware/Software Versions & Upgrade Notes

This part is a power semiconductor module, so the critical compatibility point is not firmware inside the device itself but the gate-drive, converter control, and protection settings around it.
Do not change control firmware at the same time as the module swap unless the converter documentation calls for it, because mismatched drive logic can trip faults or prevent startup.
If the site uses a known-good firmware baseline, keep it fixed during the hardware change and validate all protection thresholds after replacement.

Frequently Asked Questions (FAQ)

Is this really new? Market listings describe it as new or original inventory, which is the right condition for a critical power spare.

Why is it cheaper than OEM new but higher than a low-trust offer? New Surplus preserves genuine OEM condition while avoiding full factory list pricing, so it usually lands between those two extremes.

Is this part obsolete or EOL? It appears mainly in spare-part channels rather than active ABB product marketing, so treat it as lifecycle-sensitive and plan last-time-buy coverage.

Can I hot-swap it? No. This is a high-energy power module, so isolate power, confirm discharge, and follow the converter’s mechanical replacement procedure.

Does it have programming to retain? The module itself does not carry user programming in the way a controller does, but the surrounding gate-drive and protection settings still need to be documented.

What warranty should I expect? Public listings commonly show a 12-month or 1-year warranty, but supplier terms vary.

How should I stock it? For a critical converter platform, keep 1 unit on site as insurance and align vendor consolidation with cross-site sharing when multiple assets use the same module.
