ABB 6644424A1 Voltage Bus Monitor Assembly

Description

Product Introduction & Engineering Value

When an aging DCS cabinet experiences subtle voltage drops on its internal logic rails, unexplainable module resets and corrupted IO readings usually follow. The ABB 6644424A1 voltage bus monitor assembly directly tracks the supply lines on MPSIII power backplanes, asserting a hard trip output long before drooping power damages sensitive processing cards.

Built for long-term deployment in Bailey Infi 90 and Net 90 cabinets, this compact monitor connects directly across the system’s main DC bus bars. It provides immediate fault detection without adding significant thermal load or current draw to the rack.

Technical Specifications

• Module Type: DC Bus Bar Monitoring Assembly
• Target Power System: ABB / Bailey Modular Power System III (MPSIII)
• Monitored Rails: +5 VDC, +15 VDC, -15 VDC, and MCOM ground reference
• Fault Signal Output: Active Low True “Power Fail 1” (PF1) trip signal
• Quiescent Current Draw: Less than 50 mA under normal operating conditions
• Operating Temperature: 0°C to +70°C (32°F to +158°F)
• Form Factor: Compact slot/bus-mount enclosure (5.0 in \times 2.0 in \times 2.0 in)
• Unit Weight: Approximately 0.2 kg (0.44 lbs)
• Harmonized Tariff Code: 8536904000

Field Application & The “Trench” Experience

The Trench Story: A boiler control system running on a legacy Net 90 rack began throwing sporadic communication faults across multiple multi-function processor (MFP) modules during hot summer afternoons. Diagnostics initially pointed to failing memory on the CPUs. However, placing an oscilloscope on the backplane revealed that the +5 VDC logic rail was dipping down to +4.3 VDC whenever the cabinet cooling fans cycled on. The original 6644424A1 monitor card had suffered component drift and failed to latch the PF1 alarm. Swapping in a fresh, bench-tested 6644424A1 unit restored immediate trip alerting, allowing maintenance to replace the failing power supply module before an unmanaged plant trip occurred.

Target Industrial Applications:

• Paper Mill Power Distribution Cabinets: Monitoring DC logic supply stability across multi-rack Infi 90 DCS installations.
• Petrochemical Boiler Safety Interlocks: Triggering controlled system shutdowns upon detection of primary DC bus brownouts.
• Utility Substation Supervisory Control: Providing hardware-level voltage trip detection for legacy Bailey control racks.

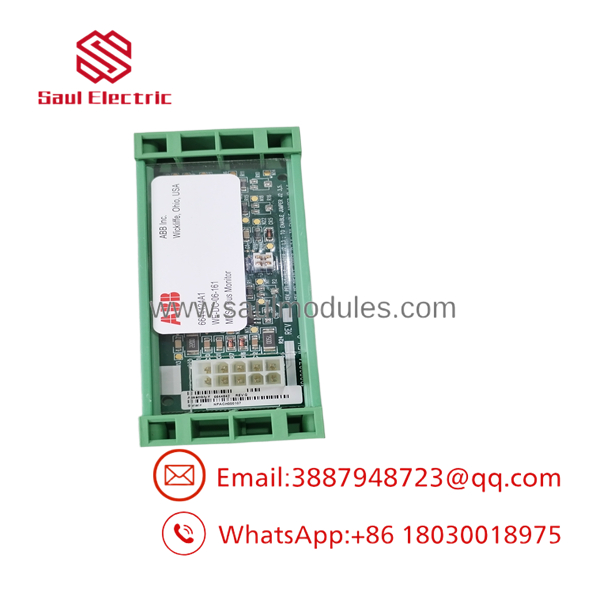

6644424A1

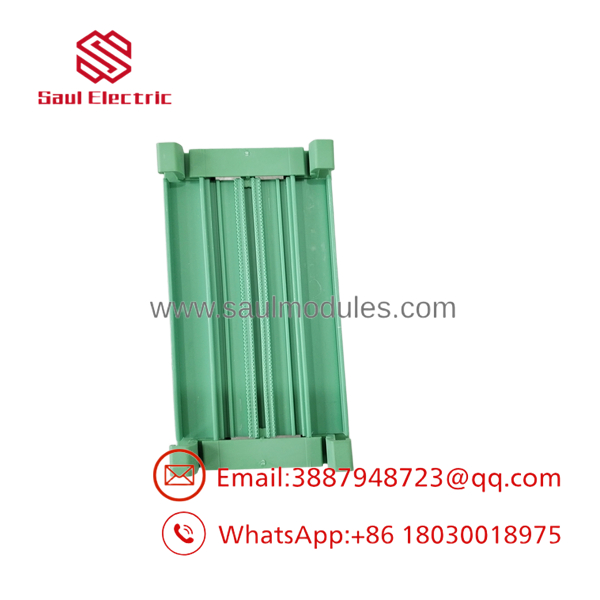

6644424A1

Transparency SOP: QA & Testing

1. Benchtop Voltage Sweep: The unit is connected to a precision DC power supply manifold supplying +5 V, +15 V, -15 V, and MCOM.
2. Trip Threshold Verification: Voltages on each rail are stepped down individually to confirm the PF1 signal reliably switches to a low true logic state within OEM specification limits.
3. Current Consumption Audit: Input current is verified with a calibrated digital multimeter to ensure draw stays well under the 50 mA limit.
4. Physical & Terminal Inspection: Backplane contact clips and terminal connections are cleaned and checked for tension loss or surface oxidation.

The Veteran’s Tech Trap Guide

• ⚠️ Do Not Ignore MCOM Grounding: The 6644424A1 relies on a solid MCOM connection to establish its voltage detection thresholds. Loose or corroded MCOM bus bar connections can cause offset reference errors, leading to false PF1 trips or failure to detect real voltage dips.
• PRO TIP: When troubleshooting phantom power fail alarms on an MPSIII cabinet, check the physical seating of the monitor on the power bus bar. Oxidation on the bus mounting pads over decades of service can create localized voltage drops that fool the monitor.
• ⚠️ Distinguish PF1 from PF2 Alarms: The 6644424A1 generates the primary PF1 signal. If your system controller reports a power fault but the 6644424A1 output measures normal, check secondary monitoring boards or fan assembly sensor loops elsewhere in the rack frame.

Dynamic FAQ

Q: Which power system chassis requires the 6644424A1 voltage bus monitor?

A: This module is designed for the ABB / Bailey Modular Power System III (MPSIII) rack enclosures commonly used with Infi 90, Net 90, and Harmony rack hardware.

Q: What happens when the 6644424A1 detects an out-of-spec voltage?

A: It asserts a “low true” PF1 (Power Fail 1) signal to the rack backplane, alerting surrounding processing and system cards to initiate an orderly shutdown or transfer to redundant power before logic corruption occurs.

Q: Does this module require software configuration or DIP switch setup?

A: No, the 6644424A1 is an entirely hardware-based voltage comparator assembly. Calibration is fixed at the factory for the standard MPSIII DC voltage rails (+5 V, +15 V, -15 V).

Q: Are these units supplied with a warranty?

A: Yes, all tested surplus and refurbished 6644424A1 assemblies carry a full 1-year functional replacement warranty.
