Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AI02J |
| Product Type | Analog Input Module |
| Series | ABB Symphony® Plus SD Series I/O |
| Input Channels | 16 independently configurable channels |
| Signal Types | 4–20 mA or 1–5 VDC |
| HART Support | HART v5.4 |
| A/D Resolution | 12–16 bit configurable |
| Update Rate | All 16 channels updated every 100 ms |
| Accuracy | ±0.1% Full Scale |
| Module Supply | 24 V DC ±10%, approximately 100 mA |
| Isolation | 1 × 16 group isolation, 1500 V |
| Operating Temperature | -40 °C to +70 °C |
Product Introduction

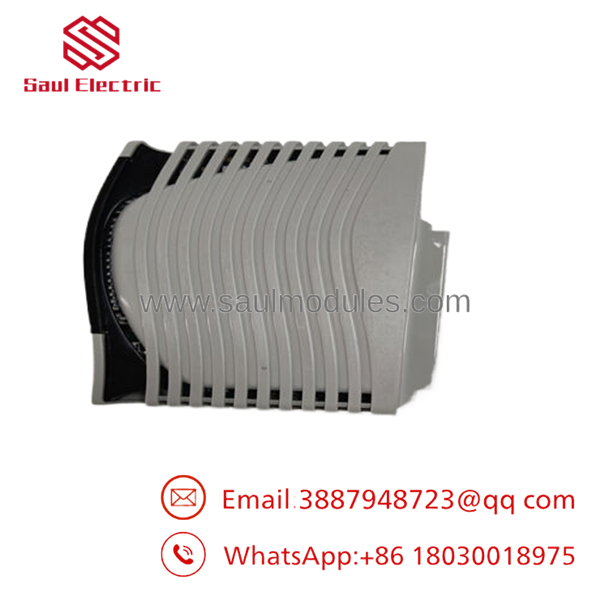

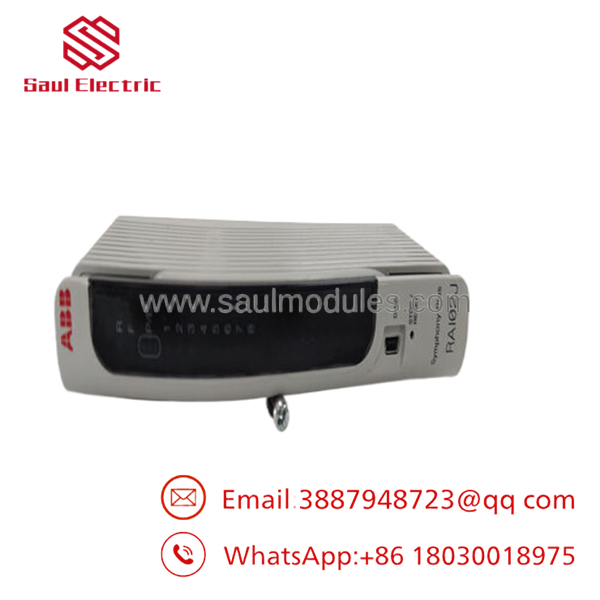

The ABB AI02J is a 16-channel analog input module designed for the ABB Ability™ Symphony® Plus SD Series distributed control system (DCS). It acquires process signals from transmitters such as pressure, temperature, flow, and level instruments, converting them into high-resolution digital data for process control.
Each channel can be configured for either 4–20 mA or 1–5 VDC input, while integrated HART support enables advanced field device diagnostics. The AI02J is widely used in power generation, oil & gas, chemical processing, and water treatment plants where dependable analog signal acquisition is essential.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| All analog inputs read zero | No field power or module power | ❌ Low | Measure 24 V DC supply to module and field devices | Verify power before replacing module |
| One channel reading unstable | Transmitter or wiring fault | ❌ Low | Inject calibrated 4–20 mA signal into channel | Check field device first |
| Multiple channels fail simultaneously | AI02J internal fault or base connector issue | ✅ High | Reseat module and inspect backplane connector | Replace module if fault persists |
| HART communication unavailable | HART configuration mismatch | ⚠️ Medium | Verify HART-enabled transmitter and channel configuration | Confirm configuration before replacing hardware |
| Constant high or low input value | Open or shorted signal loop | ❌ Low | Measure loop current with a process calibrator | Repair wiring or transmitter |
| Module diagnostic LED indicates fault | Internal electronics failure | ✅ High | Read Symphony Plus diagnostics | Replace module if diagnostics confirm hardware fault |
| Random channel noise | Ground loop or shielding issue | ❌ Low | Inspect cable shielding and grounding practices | Correct wiring before replacing module |
Service Note
In actual DCS maintenance, AI modules are usually not the primary failure point. Loose terminals, failed transmitters, incorrect scaling, or missing loop power account for most analog input problems. Before replacing the AI02J, verify the signal using a calibrated loop simulator and review controller diagnostics.
- AI02J
Frequently Asked Questions (FAQ)
1. How many analog inputs does the provide?
The supports 16 independently configurable analog input channels, each accepting either 4–20 mA or 1–5 VDC signals.
2. Does the support HART instruments?
Yes. The module supports HART v5.4 communication and can retrieve secondary variables from compatible smart transmitters, reducing the need for separate HART multiplexers.
3. Can I replace the module while the system is energized?
No. Although the rack design simplifies maintenance, removing the module with power applied can interrupt process measurements and potentially damage equipment. Always follow your site’s lockout/tagout procedure.
4. Is this module compatible with all Symphony systems?
The is designed specifically for the ABB Ability™ Symphony® Plus SD Series I/O platform. Verify controller type, I/O base, firmware revision, and application configuration before ordering.
5. Why should I document channel configuration before replacement?
I’ve seen maintenance teams replace a perfectly good analog module only to discover the engineering units, alarm limits, and scaling were never backed up. Save the controller configuration and record every channel assignment before removing the module.
6. Why are New Surplus modules more affordable than factory-direct inventory?
New Surplus modules are genuine ABB products that have never been commissioned but remained in distributor or project inventory. They provide OEM hardware while often costing less than newly manufactured stock.
7. What quality checks should a supplier perform before shipment?
A reliable supplier should complete:
- OEM label and serial number verification
- Anti-counterfeit inspection
- Visual inspection for corrosion, damaged terminals, and PCB defects
- Functional testing on a compatible Symphony Plus SD Series test rack
- Analog input verification using a calibrated 4–20 mA signal source
- HART communication verification (where applicable)
- ESD-safe packaging with QC documentation and test photos available upon request
