Description
Product Introduction
The ABB AO810V2 3BSE038415R1 is an 8-channel analog output module for the ABB S800 I/O platform used with AC 800M and compatible ABB control systems. It generates precise 0–20 mA or 4–20 mA output signals for valves, I/P converters, dampers, variable frequency drives, and other field actuators.
Compared with the earlier AO810, the AO810V2 adds improved diagnostics, continuous self-monitoring, output supervision, and Open Switch Protection (OSP). It is intended for process applications where analog signal integrity is critical. Verify controller firmware, MTU selection, and field wiring before installation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | AO810V2 |
| Product ID | 3BSE038415R1 |
| Product Series | S800 I/O |
| Output Channels | 8 |
| Output Signals | 0–20 mA, 4–20 mA |
| Resolution | 14-bit |
| Update Time | ≤2 ms |
| Rise Time | 0.35 ms (500 Ω load) |
| Maximum Load | ≤500 Ω (L1+) / 250–850 Ω (L2+) |
| Isolation | Group-wise isolated from ground |
| Maximum Cable Length | 600 m |
| Power Dissipation | 2.3 W |
| Protection | Short-circuit protected current outputs |
| Diagnostics | Open circuit, low supply voltage, module diagnostics, OSP |
| Compatible MTUs | TU810, TU812, TU814, TU830, TU833 |
| Operating Temperature | 0 to +55°C |
| Protection Rating | IP20 |
Application Scenarios & The “Trench” Experience
A refinery shutdown once traced back to what looked like a bad control valve. The valve tested perfectly. The positioner was healthy. The actual problem was one analog output channel that intermittently dropped below the commanded current. Three hours disappeared before anyone suspected the output card.
Typical Applications
- Oil & Gas — Valve position control where stable 4–20 mA signals are required for process safety.
- Power Generation — Turbine auxiliary systems controlling dampers and feedwater valves.
- Chemical Processing — Continuous dosing systems requiring high analog output accuracy.
- Water & Wastewater — Pump speed reference signals sent to VFDs through current loops.
- Pulp & Paper — Steam pressure and flow regulation within ABB 800xA architectures.
Field Replacement Example
A chemical plant experienced unstable reactor temperature because one AO channel occasionally output approximately 2 mA below the commanded value. Technicians initially replaced the field transmitter with no improvement. Loop simulation isolated the fault to the AO810V2. After installing a verified spare and downloading the existing configuration, the process stabilized immediately, avoiding an extended production interruption.

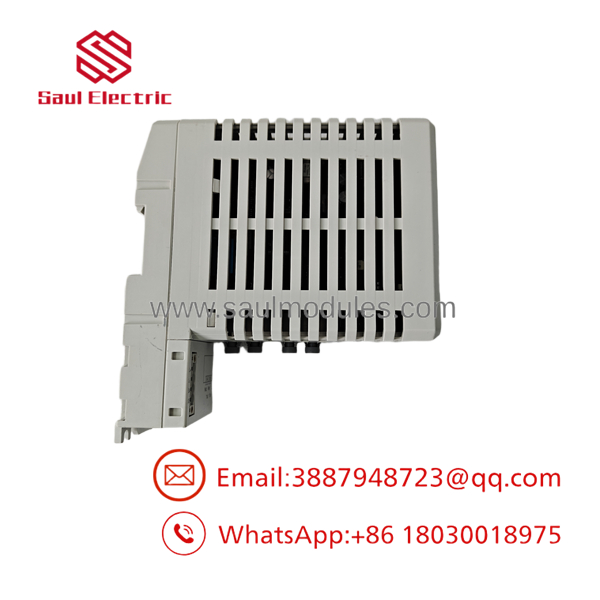

- AO810V2 3BSE038415R1

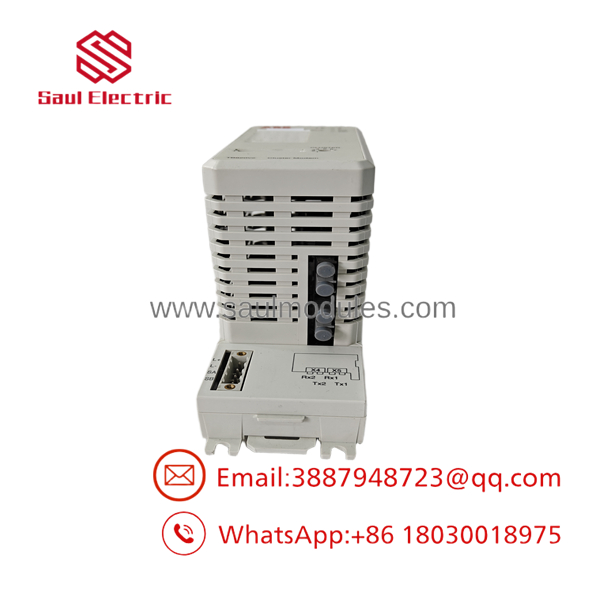

- AO810V2 3BSE038415R1
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual ABB S800 I/O racks.
- Inbound Inspection
- Verify ABB product identification.
- Inspect housing, connectors, and PCB condition.
- Check for OEM labels and counterfeit indicators.
- Live Rig Testing
- Install the module in an ABB S800 rack.
- Confirm ModuleBus communication.
- Execute power-on diagnostics.
- Verify all eight analog output channels.
- Electrical Verification
- Measure output current accuracy.
- Verify short-circuit protection.
- Confirm isolation performance.
- Test output stability using calibrated loads.
- Firmware & Hardware Verification
- Record hardware revision.
- Record firmware information where applicable.
- Verify compatibility with supported AC 800M systems.
- Final QC
- Complete visual inspection.
- Anti-static packaging.
- Shock-resistant shipping protection.
- Traceable serial number documentation.
The Veteran’s Tech Trap Guide
⚠️ Don’t assume every AO810 is identical.
supersedes the earlier AO810, but always confirm hardware compatibility and project documentation before replacement.
⚠️ Verify the MTU.
The module is designed for compatible MTUs such as TU810, TU812, TU814, TU830, or TU833. Installing the wrong termination unit can create wiring faults that look like controller failures.
❗ Check the load resistance.
One thing to watch out for is excessive loop resistance. Outputs exceeding the specified load limits may never reach the commanded current even though diagnostics report normal operation.
⚠️ Test the loop before replacing field equipment.
Inject a calibrated 4–20 mA signal directly into the actuator. Five minutes with a loop calibrator can prevent replacing an expensive valve positioner unnecessarily.
Frequently Asked Questions (FAQ)
Q1. Does the support hot swapping?
Answer: Under supported ABB S800 I/O system configurations, online replacement may be possible. Follow ABB maintenance procedures and site operating practices before removing any module.
Q2. What is the difference between AO810 and ?
Answer: is the newer hardware revision. It includes enhanced diagnostics and supersedes the original AO810 for many applications while maintaining compatibility with the S800 I/O platform. Confirm compatibility with your installed system before replacement.
Q3. Does this module support HART communication?
Answer: No. provides standard analog current outputs only and does not support HART communication.
Q4. Which termination units are compatible?
Answer: ABB specifies TU810, TU812, TU814, TU830, and TU833 as compatible MTUs for the .
Q5. Is this module genuine ABB hardware?
Answer: Yes. New surplus inventory consists of original ABB-manufactured products sourced from surplus project stock, OEM overstock, or unused maintenance inventory rather than aftermarket reproductions.
Q6. Why is surplus inventory less expensive than buying directly from ABB?
Answer: Most surplus modules originate from canceled projects, plant expansions, or excess maintenance inventory. The lower price reflects the supply channel rather than reduced hardware quality.
Q7. What warranty is typically provided?
Answer: Most industrial surplus suppliers provide a 12-month functional warranty covering manufacturing defects and verified operational performance. Warranty terms should always be confirmed with the individual supplier before purchase.
