ABB AO810V2 3BSE038415R1 8-Ch 4-20mA Output Module

Description

Product Introduction & Engineering Value

Few things frustrate control room technicians more than intermittent control valve positioner drops caused by sensitive current loops. The ABB AO810V2 addresses this headache head-on by integrating built-in open-circuit diagnostics and short-circuit protection right at the hardware tier. It maintains reliable analog command signals even across extended cable runs without requiring external loop isolators for every channel.

Designed for tight integration within ABB System 800xA and Compact Control Builder environments, this 8-channel module drops directly onto standard TU8xx Module Termination Units (MTUs). Its groupwise isolation and Output Set on Error (OSP) capability ensure that if communication to the primary controller fails, your process defaults to a safe, predetermined state rather than floating into dangerous terrain.

Technical Specifications

Field Application & The “Trench” Experience

During an unplanned midnight shutdown at a midstream natural gas fractionator, channel 4 on an aging S800 output card shorted out, locking a critical bypass control valve at 100% open. The site needed an immediate direct replacement without recompiling the AC 800M controller project or re-landing field wiring.

Our team pulled a tested AO810V2 module from hardware stock, verified the mechanical keying code (AE) matched the TU810 base, and shipped it via hot-shot courier. The field instrument technician snapped out the failed unit, slid the AO810V2 onto the active ModuleBus DIN-rail assembly, and hot-swapped it into service. Within seconds, the RUN LED turned solid green, the controller automatically restored channel configuration parameters, and the valve responded back on 4-20 mA command without interrupting adjacent loops.

Specific Field Scenarios

• Boiler Feedwater Trim Valve Control: Precise 14-bit positioner regulation in power generation facilities requiring rapid sub-millisecond loop response times.
• Variable Frequency Drive (VFD) Speed Reference: Driving remote 4-20 mA speed reference inputs on large motor drives located up to 600 meters from the control cabinet.
• Exhaust Gas Scrubber Dosage Control: Managing chemical dosing pumps in harsh marine or offshore environments utilizing the module’s G3 conformal coating.

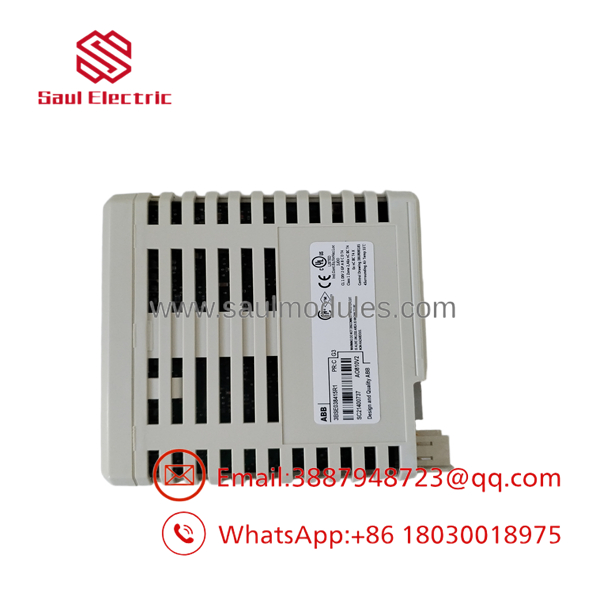

AO810V2

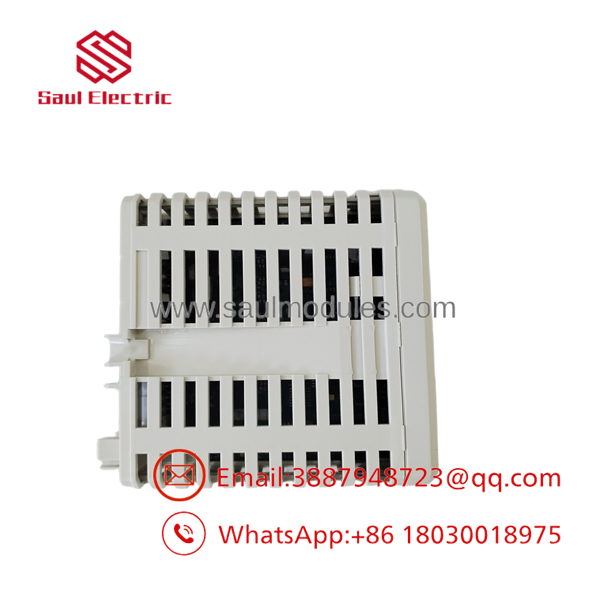

AO810V2

Transparency SOP: QA & Testing

1. Visual & Physical Inspection: Mechanics, housing latches, and terminal contacts are verified against factory tolerances. We verify the mechanical keying position (AE) is intact.
2. Backplane Power-On Diagnostic: The module is seated into an S800 test rig powered by an AC 800M controller. We monitor boot sequences, verifying proper status on the F (Fault), R (Run), W (Warning), and O (OSP) front panel LEDs.
3. 8-Channel Precision Load Sweep: Every individual channel is connected to calibrated 250 Ω and 500 Ω precision precision shunt resistors. Signals are swept across 0 mA, 4 mA, 12 mA, and 20 mA steps using a Fluke process calibrator to confirm accuracy within the 0.1% specification.
4. Open-Circuit & OSP Verification: Field wires are intentionally disconnected under load to verify that the channel open-circuit alarm registers in software. Main controller communication is then severed to confirm all 8 outputs drop to their configured OSP safety values.
5. Cleaned & Anti-Static Sealed: Once cleared, units undergo ESD-safe cleaning, anti-static bagging, and protective foam packaging.

The Veteran’s Tech Trap Guide

⚠️ TRAP 1: Dual Supply vs. Single Supply Load Limits

If you power the module using only the L1+ external terminal, your maximum allowable load impedance per loop is 500 Ω. If you have long field cable runs or high-impedance I/P converters requiring up to 850 Ω, you must connect external 24 VDC to the L2+ terminal as well. Neglecting this causes current starvation at higher mA setpoints.

PRO TIP: Open Circuit Alarms on Unused Channels

The AO810V2 generates a channel error if output current falls below setpoint on active channels driving more than 1 mA. Unused channels left enabled in Control Builder will trigger system warnings. Either disable unused channels in software or jumper unused outputs across a 250 Ω dummy resistor.

⚠️ TRAP 2: Confusing with AO815 (HART)

The does not support HART digital passthrough. If your plant relies on AMS software or handheld calibrators passing HART signals through the S800 I/O rack to field instruments, you require the AO815 module instead. Installing an will block all HART communications.

Dynamic FAQ

Q: How does the differ from the older revision AO810 module?

A: The is an updated, direct functional drop-in replacement for the original AO810. It features updated internal componentry and improved power supply monitoring while maintaining full backward compatibility with existing TU8xx MTUs and Control Builder configurations.

Q: Can I hot-swap the while the rest of the S800 rack is running?

A: Yes, the supports hot swapping on live S800 ModuleBus setups. When unlatched, the adjacent channels remain active, and upon sliding the replacement module back into place, the controller automatically re-downloads configuration data.

Q: Is this module safe for installation in classified hazardous locations?

A: Yes, the holds Class 1 Division 2, Class 1 Zone 2 (cULus), and ATEX Zone 2 certifications when installed inside an IP54-rated or better enclosure.

Q: What warranty covers your New Surplus and Refurbished units?

A: Every supplied by our warehouse comes backed by a full 1-Year Complete Replacement Warranty. If a module fails during routine operation, we replace it immediately from stock to prevent process downtime.

Q: Does the supply loop power to 2-wire transmitters?

A: No, as an analog output card, the sources or sinks current to control final elements like valve positioners, speed drives, or signal converters. It is not an analog input card and does not power 2-wire transmitters.
