Description
Product Introduction

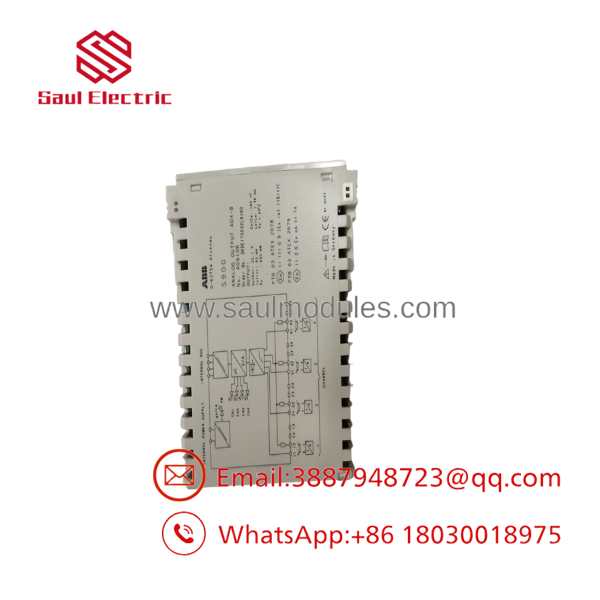

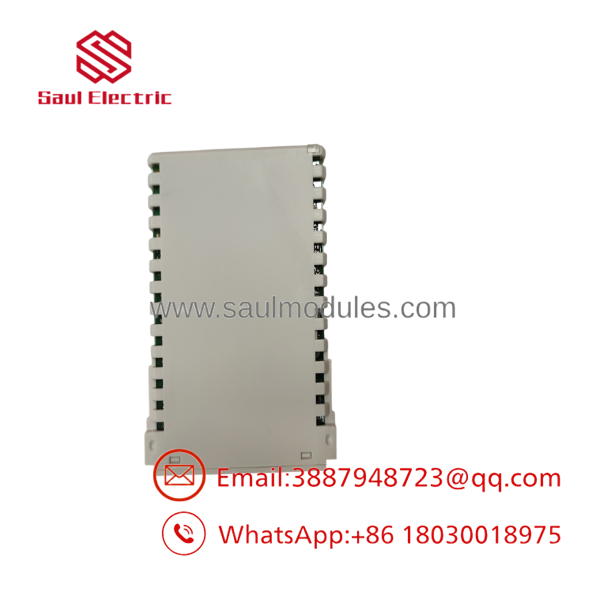

The ABB AO910 is a 4-channel analog output module designed for the S900 I/O platform. It converts digital commands from an ABB controller into precise 4–20 mA analog signals for process equipment such as valve positioners, I/P converters, and variable frequency drives. It is commonly integrated into AC 800M and other ABB process automation systems.
Unlike higher-end HART-capable output modules, the AO910 is intended for standard analog current loops where reliable signal transmission is the primary requirement. One thing to watch out for is selecting the correct module when upgrading an existing S900 installation, since AO920 and AO930 provide additional isolation or HART functionality that AO910 does not.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | AO910 |
| Product Series | S900 I/O |
| Product Type | Analog Output Module |
| Number of Outputs | 4 |
| Output Signal | 4–20 mA |
| Signal Type | Analog Current |
| Compatible Systems | ABB S900 I/O |
| Typical Controller | AC 800M |
| Primary Applications | Valve Positioners, I/P Converters, VFD Reference Signals |
| Mounting | S900 I/O Base Unit |
| Operating Environment | Industrial Process Control |
Application Scenarios & The “Trench” Experience
Picture a scheduled shutdown with only a six-hour maintenance window. Every instrument checks out except one control valve that refuses to follow the controller output. After replacing the positioner, recalibrating the loop, and checking the wiring, the actual culprit turns out to be a failed analog output channel. That’s an expensive lesson.
Typical Applications
- Oil & Gas — Process valve positioning using standard 4–20 mA control loops.
- Chemical Plants — Metering pump speed control requiring stable analog outputs.
- Power Generation — Boiler damper and feedwater valve positioning.
- Water Treatment — Variable frequency drive reference signals for pump control.
- Pulp & Paper — Continuous flow and pressure regulation within distributed control systems.
Field Replacement Example
A wastewater treatment facility experienced unstable chlorine dosing during peak demand. The PLC program and transmitter tested normally, but one AO910 channel intermittently dropped below its commanded current. Installing a verified replacement restored stable dosing within minutes, avoiding manual operation through the remainder of the shift.
- AO910
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual ABB I/O platforms whenever practical.
- Inbound Inspection
- Verify ABB identification labels.
- Inspect housing and connectors.
- Check for counterfeit indicators and physical damage.
- Live Rig Testing
- Install the module in a compatible S900 rack.
- Verify controller communication.
- Confirm all four analog outputs respond correctly.
- Electrical Parameter Checks
- Measure 4–20 mA output accuracy.
- Verify output stability under load.
- Check for abnormal channel drift.
- Firmware & Hardware Verification
- Record hardware revision.
- Verify compatibility with supported controller configurations.
- Final QC & Packaging
- Final inspection.
- Anti-static packaging.
- Shock-resistant shipping materials.
- Serial number traceability.
The Veteran’s Tech Trap Guide
⚠️ Don’t confuse with AO920 or AO930.
They may fit into the same family, but isolation and HART capabilities are different. Verify the original BOM before ordering.
⚠️ Measure the loop current.
Don’t trust software values alone. A calibrated loop meter often finds wiring faults that diagnostics won’t report.
❗ Inspect field wiring first.
Loose terminals and moisture inside junction boxes frequently imitate module failures.
⚠️ Verify controller configuration.
Replacing hardware without confirming channel scaling can leave valves operating over only part of their travel.
Frequently Asked Questions (FAQ)
Q1. Does the support HART communication?
Answer: No. The provides standard 4–20 mA analog outputs only. If HART communication is required, ABB offers dedicated HART-capable modules such as the AO930.
Q2. Can the be replaced online?
Answer: Many ABB distributed I/O systems support online module replacement under controlled conditions. Whether hot replacement is permitted depends on the controller, redundancy configuration, and plant procedures. Always follow ABB maintenance instructions.
Q3. Is the compatible with AC 800M?
Answer: Yes. The is part of the I/O family commonly used with ABB AC 800M controllers. Verify the exact system configuration before installation.
Q4. Is this genuine ABB hardware?
Answer: Yes. New surplus inventory consists of original ABB-manufactured modules sourced from excess project inventory, OEM overstock, or unused maintenance stock.
Q5. Why is surplus inventory less expensive than buying directly from ABB?
Answer: Surplus modules typically come from canceled projects or inventory reductions. The lower cost reflects the supply channel rather than inferior manufacturing quality.
Q6. What warranty is available?
Answer: Most industrial automation suppliers provide a 12-month warranty covering verified functional operation under normal industrial service conditions.
Q7. What should I verify before installing an ?
Answer: Confirm the controller configuration, output scaling, field wiring, loop load, and module compatibility. Verify exact terminal assignments and wiring diagrams using the official ABB documentation before energizing the system.
