ABB BCU-02 ACS880 Drive Controller

Description

Product Introduction

The ABB BCU-02 (3AUA0000110429) is an advanced central control unit built for high-power ABB ACS880 single-drives, multidrive systems, and inverter/converter modules. Mounted on a standard DIN rail, it links directly to power units using high-speed fiber optic cables, isolating sensitive control logic from noisy power electronics.

Engineers rely on the BCU-02 because it houses an integrated branching unit that captures microsecond-level fault logs and diagnostic data onto an onboard SDHC memory card. With three extension slots for fieldbus communication adapters (e.g., FENA-21, FPNO-21), encoder interfaces, and safety modules (FSO-xx), it handles complex drive loops without bogging down central PLC cycle times.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a production run at a metals rolling mill in Indiana, an main ACS880 inverter unit threw a unrecoverable optical link fault, halting the entire line. The field technician isolated the fault to a physically damaged optical receiver port on the primary BCU-02 controller card. By pulling the removable memory unit out of the dead BCU-02 and plugging it straight into a fresh replacement card, the team restored all drive parameters, motor models, and network addresses in under 15 minutes—zero reprogramming required.

• Steel & Metals – Rolling Mill Inverter Stand – Manages multiple parallel inverter power modules via fiber optic links for high-torque motor synchronization.
• Pulp & Paper – Paper Machine Sectional Drives – Coordinates high-speed drive-to-drive communication across complex multi-axis web tension control systems.
• Marine & Offshore – Electric Propulsion Units – Serves as the primary control brain for ACS880 liquid-cooled multidrives on DP2 vessel thruster skids.
• Mining – Heavy Overhead Conveyors – Controls regenerative brake choppers and DC/DC converter modules on long-haul ore transport rigs.

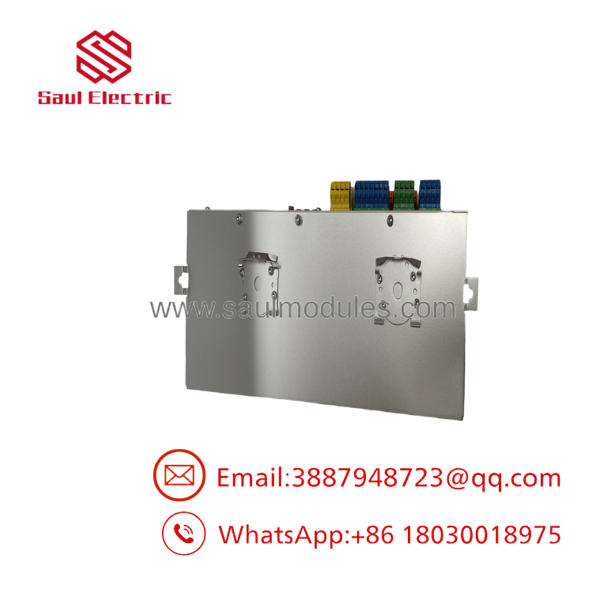

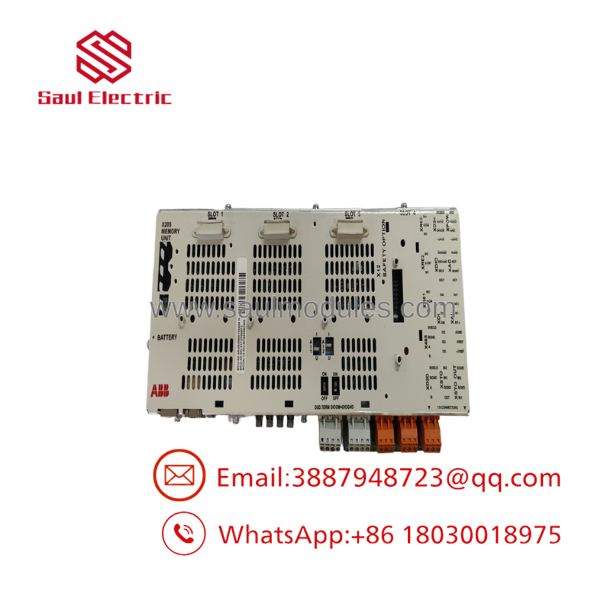

BCU-02

Transparency SOP: Quality Assurance & Testing

We test every control unit on real ACS880 demo frames before putting it into static shielding. Here is our bench validation process:

1. Visual & Fiber Port Inspection: We check all fiber optic connector jackets under magnification for scratches, dust ingress, or fractured optics, and check the DIN clip assembly.
2. 24V DC Power & Boot Verification: Apply 24V DC power to the XPOW connector to verify initialization, power-rail LED states, and internal 3.3V/5V bus regulation.
3. Fiber Optic Loop Handshake: Connect the to an active power module rack using ST/LC fiber runs. Verify that the unit establishes a clean optical handshake with zero packet dropouts or optical loss alarms.
4. I/O & Option Slot Loop Back: Drive digital inputs (DI1-DI6, DIIL) and measure all three relay contacts (RO1-RO3) under load to confirm relay armatures switch cleanly. Test option slots with a standard FEIP-21 fieldbus adapter.
5. Memory Unit & SD Card Read/Write Check: Confirm the onboard card reader formats and writes diagnostic log files onto an SDHC card without bit corruption.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Save the Memory Unit Before Swapping: The hardware itself is essentially a “dumb” execution board until you insert the ZCU memory unit. Never discard a failed with the memory card still installed inside. Pull the black memory plug out of the top slot and transfer it to the replacement unit—this carries all drive parameter sets, motor ID runs, and firmware revisions.

❗ Fragile Fiber Optic Cables: The optical transceivers on the front plate are easily damaged if you bend field fiber patches past their minimum bend radius. If you get a persistent “Line 1 Opt Link Fault,” check the plastic fiber ends for micro-cracks or dust contamination before swapping out the module. Clean optics with dedicated lint-free swabs only.

⚠️ DIIL Safety Interlock Wiring: The XDI:7 terminal (DIIL) acts as the hardwired digital interlock. If DIIL is left floating or loses its 24V signal, the will prevent the drive from enabling, throwing a start-inhibited interlock code even if your fieldbus network says “Ready to Run.”

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main difference between , BCU-12, and BCU-22?

A: The difference comes down to the number of built-in fiber optic channels. The features the base channel count for smaller multi-module setups, whereas the BCU-12 and BCU-22 provide expanded fiber-optic channel capacity for driving larger banks of parallel power modules or complex converter topologies.

Q: Do I need to program the new module using Drive Composer software after installation?

A: Not if you transfer the original ZCU memory unit from your old . The memory unit holds all parameter settings and drive firmware. If the old memory card is destroyed or corrupted, you will need Drive Composer to reload the drive configuration file (.dcparams).

Q: Can I run a on standard 120V AC panel power?

A: No. Connecting 120V AC directly to the XPOW terminals will destroy the main board power supply. The strictly requires an external 24 V DC (±10%) power source rated for at least 2.0 Amps.

Q: Does the support Safe Torque Off (STO) functions directly?

A: Yes, it includes internal STO drive control logic and terminals, and can be further expanded by installing an optional FSO-12 or FSO-21 safety functions module directly into one of its option slots.

Q: What warranty coverage do you provide for this control unit?

A: We back all new surplus and fully reconditioned (3AUA0000110429) units with a comprehensive 12-month advance replacement warranty. If the board fails in service within 365 days, we ship a replacement right away.
