ABB CI520V1 AF100 Interface Module

Description

Product Introduction & Engineering Value

Communication failures inside a legacy DCS rarely originate from the controller itself. More often, the issue lies with the fieldbus interface that links distributed equipment to the control network. The ABB CI520V1 serves as the AF100 communication interface for Advant Controller systems, enabling reliable data exchange between controllers and remote devices.

Although the Advant platform has been in service for many years, thousands of installations remain operational worldwide. For plants extending the life of existing infrastructure, the CI520V1 provides a practical replacement solution without requiring a complete control system migration.

Technical Specifications

Field Application & The “Trench” Experience

A municipal water treatment plant experienced intermittent communication loss between an AC 450 controller and several remote process stations connected through the AF100 network. Initial troubleshooting focused on the fieldbus cabling, but signal integrity tests showed the network was healthy.

Replacing the aging CI520V1 restored stable AF100 communication immediately. Because the existing application software and field wiring remained unchanged, the maintenance team completed commissioning within the scheduled outage window and avoided recalibrating field instruments.

Typical applications include:

• Distributed pump station control using Advant Controller AC 450
• Pulp digester process supervision over AF100 networks
• Boiler auxiliary system communication in legacy Advant OCS installations

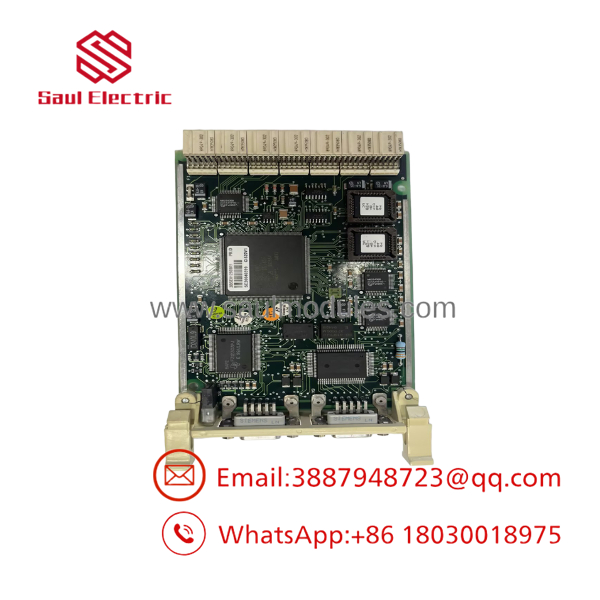

CI520V1

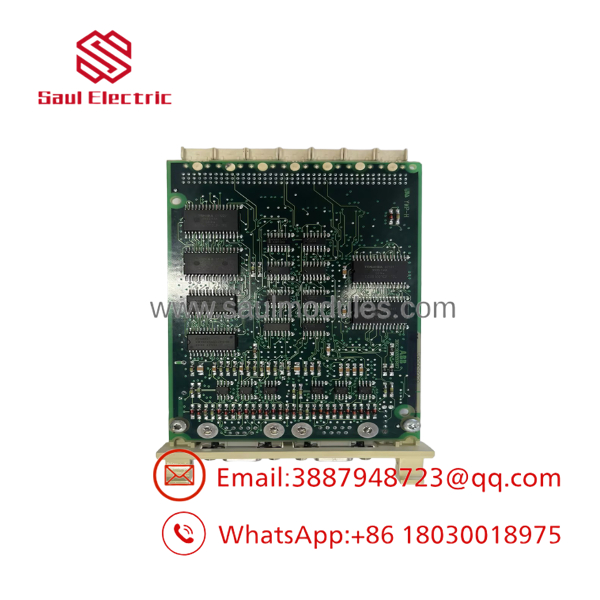

CI520V1

Transparency SOP: QA & Testing

Before shipment, every undergoes a documented verification procedure.

• ✔ Confirm ABB article number 3BSE012869R1
• ✔ Inspect PCB, edge connectors, and housing for mechanical damage
• ✔ Verify connector continuity and communication interface integrity
• ✔ Perform power-up testing using compatible Advant hardware when available
• ✔ Check status indicators and diagnostic response
• ✔ Package in anti-static protective materials with shock-resistant cushioning

For refurbished inventory, functional communication testing is completed before release.

The Veteran’s Tech Trap Guide

⚠️ Don’t assume CI522A is a drop-in replacement.

ABB specifies that CI522A/CI522 can replace the only if the correct TK803V0x cable is used and the controller software meets the required revision levels. Skipping these checks can prevent the controller from communicating with the network.

⚠️ Verify software before replacing hardware.

Older AC 410 and AC 450 systems may require software upgrades before supporting the replacement interface. Confirm controller firmware and engineering software versions before scheduling maintenance.

PRO TIP:

Record the existing bus address and communication parameters before removing the original module. Replacing hardware without documenting configuration settings can significantly extend startup time.

⚠️ Legacy doesn’t mean interchangeable.

Several Advant communication modules appear physically similar, but their network functions differ. Always verify the ABB article number instead of relying solely on the module label.

Dynamic FAQ

Q1. What is the primary function of the ?

The provides the communication interface between ABB Advant controllers and the (Advant Fieldbus 100) network, enabling data exchange with distributed field equipment.

Q2. Can the CI522A replace the ?

Yes, but only under specific conditions. ABB requires compatible controller software versions and the use of the TK803V0x cable instead of older cable types.

Q3. Is the still available as a new product?

Availability is limited. ABB recommends an exchange service for many orders because this is a legacy Advant OCS component.

Q4. Are New Surplus modules genuine ABB products?

Yes. New Surplus units are unused original ABB inventory preserved in controlled warehouse conditions. Each module is inspected for identity, physical condition, and connector integrity before shipment.

Q5. What information should I provide before ordering?

Provide the complete controller model (AC 410 or AC 450), software revision, article number (3BSE012869R1), and, if applicable, the existing communication cable type. This helps confirm compatibility before shipment.

Q6. Is warranty coverage available?

Yes. Both New Surplus and professionally refurbished modules are supplied with warranty coverage. Warranty terms vary according to inventory condition and are specified with the quotation.
