Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | CI522A |
| Part Number | 3BSE018283R1 |
| Product Type | AF100 Communication Interface Module |
| Series | ABB Advant Master / S800 I/O |
| Communication Protocol | AF100 |
| Primary Function | Interface between S800 I/O and AF100 network |
| Redundancy Support | Yes |
| Power Supply | 24 V DC |
| Product Dimensions | 265 × 120 × 27 mm |
| Net Weight | Approximately 0.2 kg |
| Installation | Modular rack-mounted |
| Typical Application | Process automation and distributed control systems |
Product Introduction

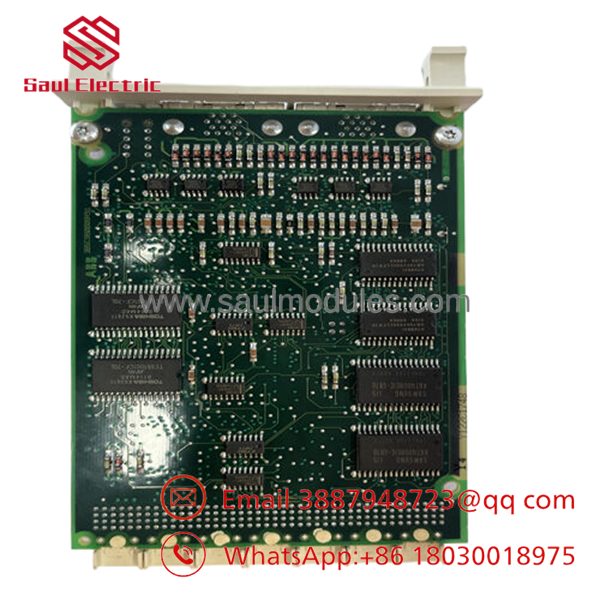

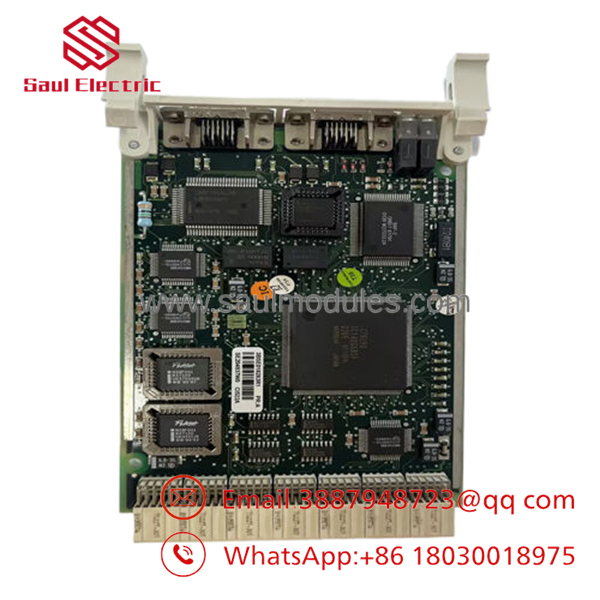

The ABB CI522A (3BSE018283R1) is an AF100 communication interface module designed for ABB Advant Master and S800 I/O systems. It provides reliable communication between distributed I/O stations and the AF100 control network while supporting redundant communication architectures for improved system availability.
The module is widely used in power generation, chemical processing, pulp and paper, and other continuous-process industries where dependable controller-to-I/O communication is essential. It is commonly selected as a direct OEM replacement to maintain compatibility with existing Advant Master installations.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Communication with S800 I/O lost | AF100 network fault | ❌ Low | Verify network status and cabling | Inspect network before replacing module |
| Module LEDs remain off | Missing 24 V DC supply | ❌ Low | Measure supply voltage at module terminals | Verify power source and rack supply |
| Controller reports CI522A communication fault | Internal interface failure | ✅ High | Review controller diagnostics and module LEDs | Replace module if diagnostics confirm failure |
| Intermittent communication | Loose connector or backplane issue | ⚠️ Medium | Reseat module and inspect connector pins | Clean and reinstall before replacement |
| Redundant channel not switching | Configuration or secondary link fault | ⚠️ Medium | Test primary and redundant communication paths | Verify redundancy settings |
| Multiple remote I/O stations offline | cable or controller issue | ❌ Low | Check other communication modules | Diagnose network before replacing CI522A |
| Module becomes unusually hot | Internal hardware fault | ✅ High | Measure supply current and inspect for damage | Replace module immediately |
Service Note
Communication modules are often replaced unnecessarily. In many plants, damaged cabling, incorrect redundancy configuration, loose backplane connectors, or failed power supplies cause the same symptoms. Before replacing the CI522A, export the controller diagnostics and inspect every communication connector. A five-minute inspection often prevents several hours of unnecessary downtime.
- CI522A 3BSE018283R1
- 3BSE018283R1
Frequently Asked Questions (FAQ)
1. What is the primary function of the ?
The serves as an , connecting ABB S800 I/O stations to the communication network while supporting redundant communication for high system availability.
2. Can I replace any CI522 module with a ?
Not necessarily. Always match the complete part number 3BSE018283R1 and verify your system revision. Similar model numbers may have different hardware or firmware compatibility.
3. Is the hot-swappable?
No. Remove system power before replacing the module. Pulling communication modules under power can interrupt the entire control network and may damage the backplane.
4. Does this module support redundant communication?
Yes. One of the primary functions of the is supporting redundant communication between the network and S800 I/O, helping maintain controller availability during communication path failures.
5. Why should I record the communication settings before replacement?
I’ve seen maintenance crews replace the hardware only to discover the network configuration wasn’t documented. The new module worked perfectly, but the system stayed offline because node configuration and redundancy parameters weren’t restored. Save the controller configuration before removing the module.
6. Why are New Surplus modules less expensive than factory-direct inventory?
New Surplus modules are genuine ABB products that were never commissioned but remained in distributor or project inventory. They provide OEM hardware while often reducing procurement costs for legacy control systems.
7. What quality checks should a supplier perform before shipment?
A qualified supplier should complete:
- OEM serial number and label verification
- Anti-counterfeit inspection
- Visual inspection for damaged connectors, corrosion, or PCB defects
- Communication testing on a compatible ABB Advant Master or I/O platform
- Power-on verification and redundant communication testing
- ESD-safe packaging with QC documentation and test photos available upon request
