ABB CI840A Redundant FCI PROFIBUS Module

Description

Product Introduction

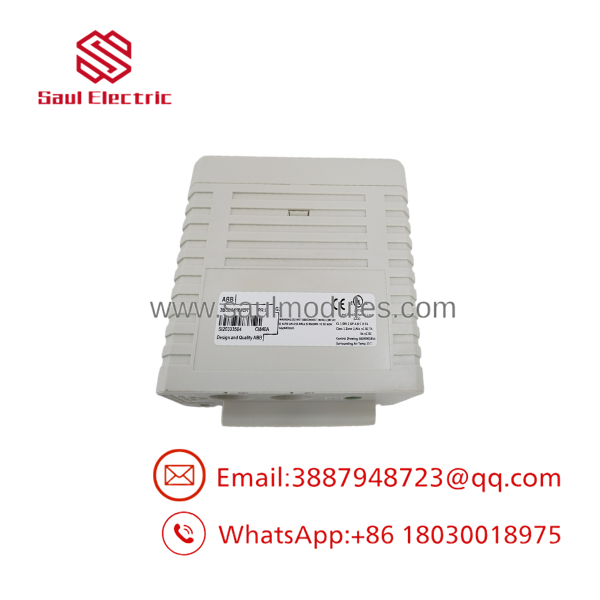

The ABB CI840A (3BSE041882R1) is a high-availability Fieldbus Communication Interface (FCI) module engineered specifically for redundant PROFIBUS DP-V1 configurations within ABB S800 I/O systems. Mounted on dual-channel terminal bases like the TU840 or TU841, it operates in active/standby pairs to bridge remote S800 I/O drops directly to AC 800M controllers or third-party PROFIBUS DP masters.

Process engineers specify the CI840A for critical, zero-downtime applications where losing a communication module would trip an entire plant segment. It executes local optical ModuleBus management autonomously, streams real-time field data, and supports seamless, bumpless failover—allowing a faulted primary FCI card to pass control to its redundant partner in milliseconds without disturbing field outputs.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

An offshore oil platform in the Gulf of Mexico had a primary PROFIBUS interface card short out on an emergency shutdown (ESD) valve remote drop during high-sea operations. Thanks to the dual-CI840A architecture on the TU840 baseplate, the backup CI840A took over the ModuleBus master role instantly. The system registered zero packet loss, and the platform maintained full production while the instrument tech pulled the faulted card and clicked a new CI840A into the active slot—all online and live.

• Offshore Oil & Gas – Emergency Shutdown Systems (ESD) – Guarantees uninterrupted communication between central safety logic controllers and remote gas detector/valve banks.
• Petrochemical Refining – Continuous Process Units – Eliminates single-point communication failures across critical hydrocracker and distillation column I/O drops.
• Power Generation – Burner Management Systems – Manages high-density safety-critical digital and analog S800 I/O channels over redundant PROFIBUS backbones.

Transparency SOP: Quality Assurance & Testing

We test every module on an active redundant S800 testing rack before approving it for static wrap:

1. Inbound Pin & Latch Inspection: We verify backplane multi-pin connector alignment, check latch retention force, and validate original ABB serial tags under magnification.
2. Power Rail & Logic Startup: Apply 24 V DC to the test baseplate to confirm internal DC-DC regulation, boot sequencing, and LED diagnostic self-tests (RUN, FAULT, PRIM).
3. Bumpless Redundancy Failover Check: Install a pair of modules on a TU840 baseplate connected to an active PROFIBUS DP master. Intentionally sever power to the primary module to confirm the secondary unit assumes master status in under 10 ms without dropping I/O state memory.
4. 12 Mbps Data Stream Validation: Drive cyclic I/O traffic across a fully populated ModuleBus string at 12 Mbps to confirm zero frame dropouts or parity errors.
5. ESD Clearance & Moisture Barrier Packing: Contacts are cleaned with electrical solvent, sealed in thick static-shielding bags, and packed with fresh moisture-absorbing desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ The “A” Revision Compatibility Warning: While the is functionally similar to the older CI840, do not mix a CI840 and a as a redundant pair on the same TU840 baseplate. Firmware handshakes and internal ASIC timing differences between revision letters can prevent the secondary card from taking over smoothly during a failover event. Always match your redundant pairs!

❗ Firmware Matching Across Pairs: Ensure both modules on a redundant baseplate run identical firmware revisions. If the primary and secondary cards carry mismatched firmware, the host controller may reject the backup unit, leaving you with zero redundancy protection despite having two cards installed.

⚠️ ModuleBus Termination Still Applies: Just like single FCI drops, if your redundant S800 cluster uses extension cables (TK801) to span multiple DIN rails, you must install a TB807 ModuleBus terminator on the last open socket. Un-terminated local buses cause signal bounce that can trip both redundant cards simultaneously.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary difference between the CI801 and the ?

A: The CI801 is a single-channel (non-redundant) PROFIBUS DP-V1 interface card designed for standard TU810/TU830 baseplates. The is built specifically with hardware voting and sync logic to operate in active/standby redundant pairs on /TU841 baseplates.

Q: Can I hot-swap a failed card while the plant is operating?

A: Yes! As long as the secondary on the redundant baseplate is healthy and showing a steady “PRIM” (Primary) LED status, you can unseat and replace the faulted backup card live without disrupting I/O processing.

Q: Can a single be used in a non-redundant configuration?

A: Yes. A single will function as a standalone FCI if seated on a non-redundant baseplate like the TU810V1, though its primary engineering purpose is to deliver dual-channel redundancy on baseplates.

Q: Does the require manual IP or node addressing?

A: Hardware address settings are typically read from the baseplate rotary switches or assigned automatically via system software configuration in System 800xA / Control Builder M during startup.

Q: What warranty coverage do you provide on this module?

A: We back all new surplus and fully reconditioned (3BSE041882R1) modules with a comprehensive 12-month advance replacement warranty. If a card fails or loses sync within 365 days, we ship a replacement immediately.
