ABB CI854 PROFIBUS DP-V1 Communication Interface Module

Description

Product Introduction & Engineering Value

I’ve seen many troubleshooting sessions where engineers blamed the controller for communication failures that actually originated at the PROFIBUS interface. The ABB CI854 is one of those components that quietly keeps an entire field network operating, yet receives attention only when a production line suddenly loses contact with remote devices.

Designed for ABB AC 800M and System 800xA, the CI854 provides deterministic PROFIBUS DP-V1 communication with distributed I/O, variable frequency drives, intelligent motor starters, and process instrumentation. It remains a common spare part in facilities maintaining large installed bases of ABB automation equipment.

Technical Specifications

Field Application & The “Trench” Experience

A refinery modernization project involved replacing several legacy remote I/O stations with PROFIBUS DP equipment while keeping the existing AC 800M controllers online. Communication initially appeared unstable, with intermittent loss of several remote stations.

Engineers first suspected the field devices, but diagnostics eventually traced the problem to an aging communication interface that could no longer maintain reliable bus timing under full network load. After installing a replacement CI854, network diagnostics stabilized immediately and every remote node returned to service without modifying the control strategy.

Typical installations include:

• Catalytic cracking unit remote I/O networks
• Cement kiln drive control over PROFIBUS DP
• Water treatment motor control centers (MCCs)
• Pharmaceutical process skids with distributed instrumentation

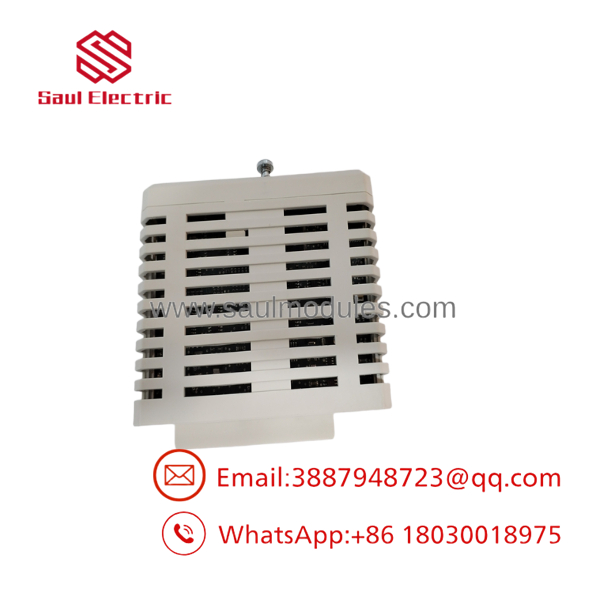

CI854

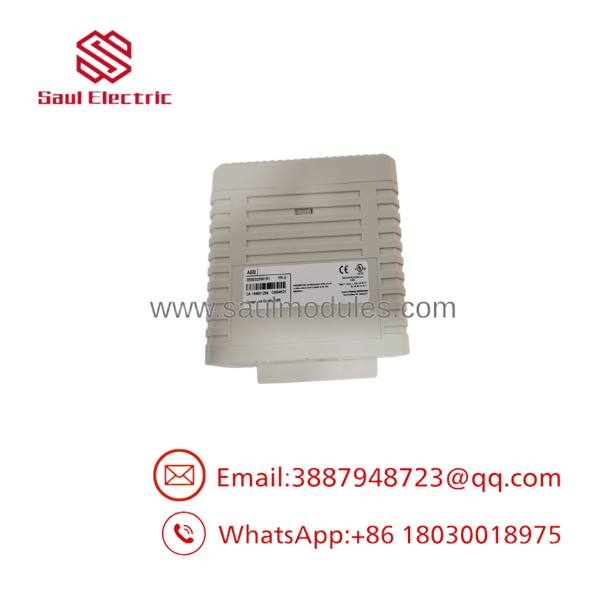

CI854

Transparency SOP: QA & Testing

Every communication interface is processed through a documented inspection procedure before shipment.

• Visual inspection for PCB contamination, damaged connectors, and enclosure defects
• Verification of ABB part number and hardware revision
• PROFIBUS communication diagnostics using compatible AC 800M test equipment
• Backplane connector continuity inspection
• Functional power-up verification
• Anti-static packaging with protective cushioning before shipment

Refurbished modules complete additional communication and stability testing before being approved for delivery.

The Veteran’s Tech Trap Guide

⚠️ isn’t the same as CI854B.

Many quotations simply state “,” but hardware revisions differ. The CI854B adds line redundancy and master redundancy support. Verify the exact revision before ordering replacement hardware.

⚠️ Don’t replace the module before checking the PROFIBUS network.

More than half of reported communication faults originate from:

• Missing termination resistors
• Duplicate PROFIBUS addresses
• Damaged cable shielding
• Loose D-Sub connectors

Replacing hardware won’t resolve these installation issues.

PRO TIP:

Always save the Control Builder hardware configuration before replacing the communication interface. Restoring the correct PROFIBUS configuration afterward is considerably easier than rebuilding the network manually.

⚠️ Verify the baseplate.

The communication interface requires the TP854 baseplate. Ordering only the interface without confirming the baseplate condition is a common procurement oversight.

Dynamic FAQ

Q1. What is the primary purpose of the ABB ?

The enables PROFIBUS DP-V1 communication between ABB AC 800M controllers and distributed field devices such as remote I/O, drives, and intelligent instruments.

Q2. Does the support redundant PROFIBUS networks?

The CI854B supports both line redundancy and master redundancy, making it suitable for high-availability System 800xA applications.

Q3. Which controller families are compatible?

The module is designed for ABB AC 800M controllers within System 800xA architectures using PROFIBUS DP communication. Compatibility should always be confirmed against the controller hardware revision and software release.

Q4. Are New Surplus modules genuine ABB products?

Yes. New Surplus inventory consists of unused original ABB hardware maintained in controlled storage. Each unit is inspected for identification, connector condition, and overall physical integrity before shipment.

Q5. Is the TP854 baseplate included?

Complete kit versions generally include the TP854 baseplate, while individual replacement modules may not. Always confirm the package contents before placing an order.

Q6. Is warranty available?

Yes. Both New Surplus and professionally refurbished communication interfaces are available with warranty coverage. Warranty duration depends on the supplied condition and is specified in the quotation.
