Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | CMA121 |
| Part Number | 3DDE300401 |
| Product Type | DC Power Supply Module |
| Series | ABB Synpol D |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Output Voltage | 24 VDC |
| Output Current | Up to 12.5 A |
| Output Regulation | ±1% (typical) |
| Protection Functions | Overload, Overvoltage, Short Circuit |
| Ripple & Noise | <100 mVp-p |
| Weight | Approximately 0.6 kg |
| Country of Origin | Sweden / Germany (depending on production batch) |
Product Introduction

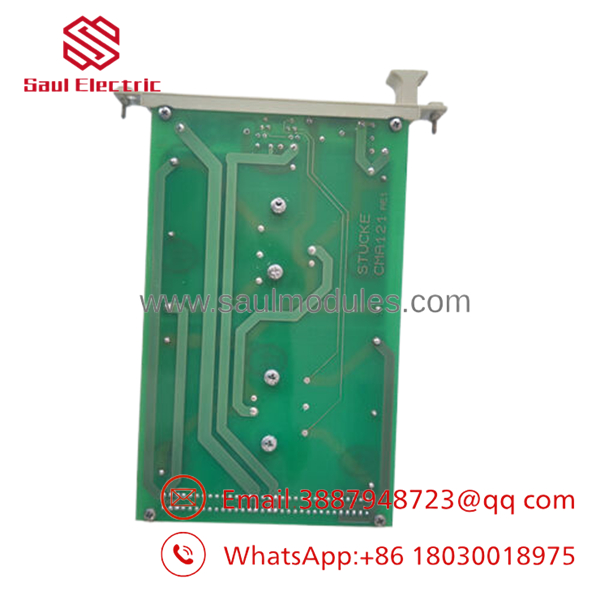

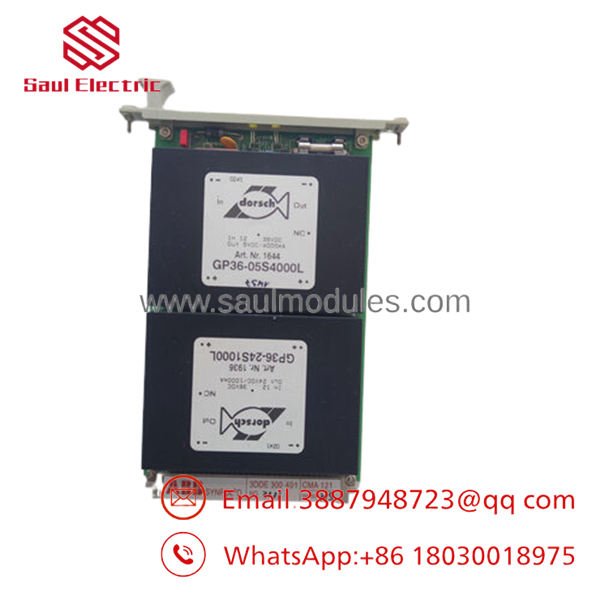

The ABB CMA121 (3DDE300401) is a DC power supply module developed for ABB Synpol D industrial automation and power control systems. It converts AC input power into a regulated 24 VDC supply for controllers, interface boards, and other system electronics requiring stable operating voltage.
Designed for continuous industrial operation, the CMA121 incorporates overload and short-circuit protection to help maintain reliable system power. It is commonly installed in power generation, utility substations, and process automation systems where dependable DC power is essential for control equipment.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Entire control system loses power | AC input missing | ❌ Low | Measure input voltage at module terminals | Verify upstream breaker and wiring |
| 24 VDC output missing | Internal power supply failure | ✅ High | Measure output with a calibrated multimeter | Replace module if input voltage is normal |
| Output voltage unstable | Overloaded power supply | ⚠️ Medium | Measure output while system is under load | Reduce load and verify total current demand |
| Module overheats | Ventilation blocked or overload | ⚠️ Medium | Inspect cooling clearance and output current | Remove overload before replacing module |
| Repeated shutdown and recovery | Short circuit on 24 VDC bus | ❌ Low | Disconnect field loads individually | Locate downstream fault first |
| Protection indicator active | Internal protection triggered | ✅ High | Check for output short circuit and overload | Replace module if protection remains active after load removal |
| Controller resets randomly | Voltage drop under load | ⚠️ Medium | Monitor 24 VDC during peak demand | Verify power capacity and cable connections |
Service Note
Power supply modules are often replaced when the actual problem is a downstream short circuit or overloaded 24 VDC distribution. Before ordering a new CMA121, isolate the field loads and verify that the module maintains its rated output with no external load connected. That simple test can eliminate unnecessary replacement costs.
- CMA121
- CMA121
Frequently Asked Questions (FAQ)
1. What is the function of the ABB ?
The supplies regulated 24 VDC power for ABB Synpol D control systems and associated electronic modules, providing stable operating voltage for industrial automation equipment.
2. Can I replace the power supply while the cabinet is energized?
No. Always isolate the incoming AC supply before removing or installing the module. Replacing a power supply under load can damage connected electronics and create an electrical safety hazard.
3. Why does the module repeatedly shut down?
The most common cause is a short circuit or excessive load on the 24 VDC output. Disconnect the field circuits one at a time and verify whether the power supply returns to normal operation before assuming the module has failed.
4. Is the compatible with every ABB control system?
No. It is primarily intended for ABB Synpol D applications. Always verify the complete part number 3DDE300401, electrical ratings, and system compatibility before purchasing.
5. What’s the most common installation mistake?
The biggest mistake is calculating only the normal operating current and ignoring startup current. I’ve seen power supplies replaced unnecessarily when the real issue was several loads energizing simultaneously and exceeding the available output current. Leave at least a 20% capacity margin when sizing the DC supply.
6. Why are New Surplus modules more affordable?
New Surplus modules are genuine ABB products that were never commissioned but remained in project or distributor inventory. They provide OEM hardware at a lower cost than newly manufactured replacement stock.
7. What quality checks should a supplier perform before shipment?
A reliable supplier should complete:
- OEM serial number and label verification
- Anti-counterfeit inspection
- Visual inspection for damaged terminals, corrosion, or repaired PCB traces
- Full-load functional testing with regulated 24 VDC output verification
- Output voltage, ripple, and protection function testing
- ESD-safe packaging with QC documentation and test photos available upon request
