ABB CMA132 Generator Relay Terminal Board Advant DCS Series

Description

Product Introduction & Engineering Value

When troubleshooting complex turbine-generator control schemes, signal degradation across aging terminal interfaces can trigger false trip sequences or communication dropouts. The ABB CMA132 (Synpol D) generator relay terminal board establishes clean, reliable routing between field protection relays and the core Advant DCS control architecture.

Engineered with robust industrial-grade housing and secure multi-pin terminal blocks, this assembly eliminates loose connection risks in high-vibration power generation environments. Plant operators rely on its stable signal conditioning to maintain strict synchronization and protection oversight across synchronous generators without introducing loop latency.

Technical Specifications

• Product Number / Identifier: 3DDE300412 (CMA132 Synpol D)
• System Family: ABB Advant DCS / 800xA Power and Protection Platforms
• Primary Function: Relay signal routing, power distribution, and terminal interconnection for generator protection
• Construction: High-density PCB assembly with fire-retardant housing and industrial screw terminals
• Diagnostic Features: Integrated status monitoring points and clear terminal labeling scheme
• Mounting Style: Standard industrial panel/rack-mount board configuration
• Operating Environment: Designed for heavy-duty electrical utility and power generation control rooms

Field Application & The “Trench” Experience

During a routine startup at a combined-cycle power station, a synchronous generator protection loop threw intermittent fault flags traced back to corrosion and cracked solder joints on an aging terminal board. Replacing the entire wiring harness would have required a multi-day outage. The instrumentation crew swapped in a verified surplus ABB CMA132 terminal board, re-terminated the relay leads, and restored clean signal continuity to the protection scheme before the grid synchronization window closed.

Specific Niche Application Scenarios:

• Synchronous Generator Protection Panels: Interfacing high-voltage breaker trip relays with central DCS logic.
• Hydroelectric Turbine Governor Nodes: Managing reliable signal distribution across isolated plant control cabinets.
• Co-generation Plant Switchgear Racks: Condensing multi-channel relay inputs to prevent common-mode noise faults.

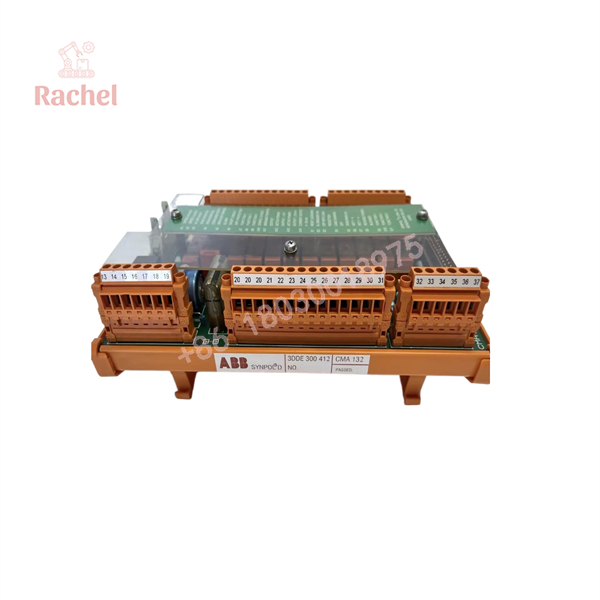

CMA132

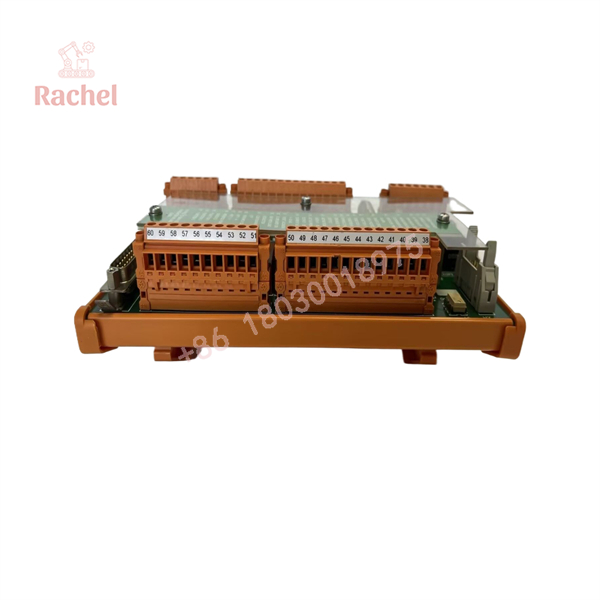

CMA132

Transparency SOP: QA & Testing

1. Visual PCB Audit: Inspect all surface traces, solder joints, and mounted terminal blocks under optical magnification for micro-fractures or oxidation.
2. Cold Continuity Check: Measure resistance across power rails and terminal connections using a calibrated digital multimeter to verify isolation barriers.
3. Relay Interface Simulation: Test mechanical relay contact closures and signal path integrity on a dedicated test bed mimicking plant-level voltages.
4. Diagnostic Circuit Verification: Audit onboard diagnostic LED arrays and monitoring lines for proper operational feedback.
5. Thermal Chamber Burn-In: Subject the board to 24 hours of active operation inside an environmental chamber to screen out infant mortality faults.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: Always tag and record individual wire numbers before unseating terminal blocks from a legacy board. While terminal layouts on the CMA132 are standardized, swapping boards in tight cabinets without wire labels can easily lead to crossed trip signals.

Warning: Never perform wiring modifications or unseat connectors while the generator protection circuit is energized. Live handling of relay terminal boards can induce transient inductive spikes, risking accidental breaker trips or damage to downstream I/O cards.

Dynamic FAQ

1. Is this ABB CMA132 unit brand new or surplus?We supply certified New Surplus and fully bench-tested refurbished units, backed by complete technical traceability records.
2. What warranty covers this terminal board?Every unit is backed by our standard 12-month replacement warranty covering structural and electrical performance.
3. Does the CMA132 require any software configuration or programming?No, the CMA132 is a passive/active hardware relay terminal board and does not store firmware or application logic.
4. Is this board compatible with both Advant and 800xA system architectures?Yes, it is designed specifically for integration within ABB Advant DCS and related generator protection frameworks.
5. What is the exact part number associated with this model?The standard catalog and manufacturing designation for this unit is 3DDE300412 (Synpol D).
