Product Introduction & Engineering Value
An HMI is often the first component operators blame when production data disappears, but many display problems originate from aging backlights, worn touchscreens, or communication issues rather than the PLC itself. The ABB CP435T is a 7-inch operator panel developed for machine-level visualization within the ABB CP400 family.
The panel combines process graphics, alarm handling, recipe management, trending, and user access control in a compact package. Although ABB has introduced newer CP600 models, the CP435T remains a common spare part for existing installations where maintaining application compatibility is more practical than redesigning the HMI project.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | CP435T |
| Article Number | 1SBP260193R1001 |
| Product Family | CP400 Series |
| Display Size | 7 inches |
| Display Type | TFT LCD, 64K colors |
| Resolution | 800 × 480 pixels |
| Touch Technology | Resistive Touchscreen |
| Supply Voltage | 24 VDC (±15%) |
| Front Protection | IP65 |
| Processor | 32-bit RISC CPU |
| User Program Memory | 8 MB |
| User Data Memory | 512 KB |
| Communication Interfaces | Serial communication, USB 2.0 |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | –10°C to +60°C |
Field Application & The “Trench” Experience
A packaging facility began experiencing intermittent operator complaints that production recipes occasionally failed to load after shift changes. The PLC continued executing normally, but operators had difficulty navigating screens because portions of the touchscreen no longer responded consistently.
Replacing the CP435T restored full touchscreen functionality without modifying the PLC application or communication configuration. Since the original HMI project was backed up beforehand, engineers downloaded the existing application to the replacement panel and resumed production within the planned maintenance window.
Typical applications include:
- High-speed packaging machine operator stations
- Food and beverage filling line visualization
- Water treatment process monitoring
- HVAC plant supervisory control
- Conveyor system diagnostics and alarm management

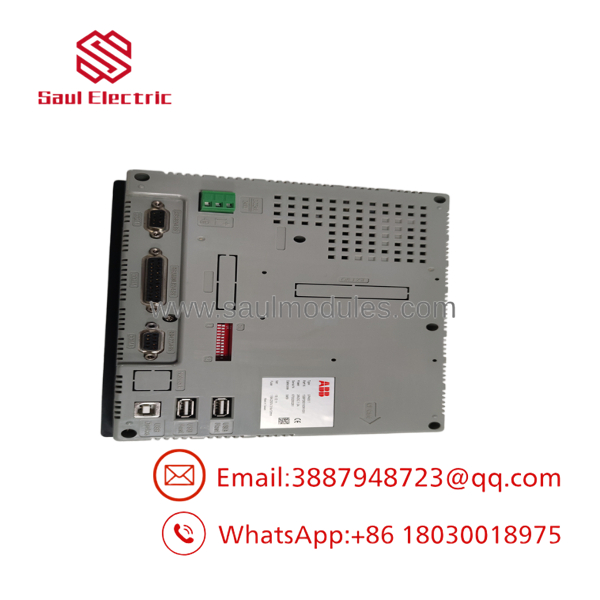

- CP435T 1SBP260193R1001

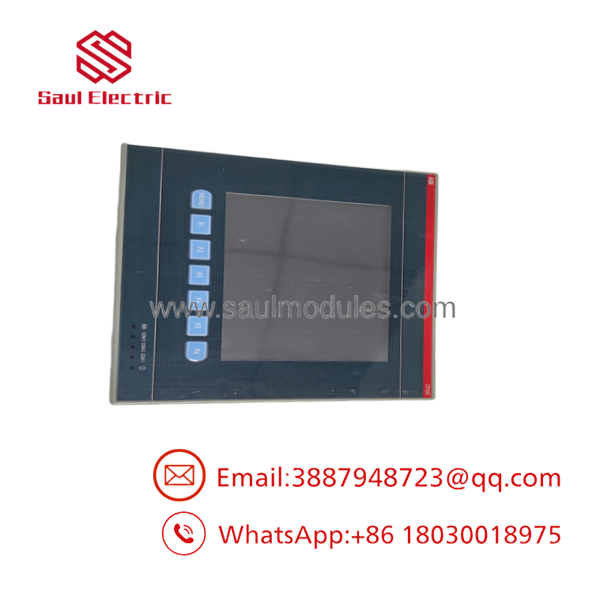

- CP435T 1SBP260193R1001
Transparency SOP: QA & Testing
Each undergoes a documented inspection procedure before shipment.
- Verify the ABB article number 1SBP260193R1001.
- Inspect the touchscreen, LCD, housing, and front membrane for physical damage.
- Perform a complete display test to identify dead pixels, brightness issues, or backlight degradation.
- Verify touchscreen calibration and response across the full display area.
- Test communication ports and perform power-on diagnostics.
- Package the panel in anti-static materials with impact-resistant protection.
Professionally refurbished units receive additional touchscreen calibration and burn-in testing before release.
The Veteran’s Tech Trap Guide
⚠️ Always back up the HMI project first.
Replacing the hardware without a current application backup can significantly extend downtime. Before removing the panel, upload the latest project from the existing unit whenever possible.
⚠️ Don’t confuse with -ETH.
The (1SBP260193R1001) does not include the integrated Ethernet interface found on the -ETH (1SBP260197R1001). Verify the required communication method before ordering.
PRO TIP:
A touchscreen that appears defective may simply require recalibration. Verify touchscreen calibration before replacing the panel, particularly if only certain screen regions fail to respond.
⚠️ Lifecycle planning matters.
ABB classifies the as a Limited lifecycle product and recommends the CP600 family as its long-term successor. Migration to the newer platform generally requires adapting the HMI application rather than copying it directly.
Dynamic FAQ
Q1. What is the primary function of the ABB ?
The is a 7-inch industrial HMI that provides process visualization, alarm management, operator input, recipe handling, and machine diagnostics for ABB automation systems.
Q2. Does the include Ethernet communication?
No. The standard (1SBP260193R1001) includes USB and serial communication interfaces. If integrated Ethernet is required, ABB offers the -ETH (1SBP260197R1001).
Q3. Is the still supported by ABB?
The is in the Limited lifecycle phase. ABB identifies the CP600 family as the successor platform for future applications. Existing HMI projects typically require conversion or modification when migrating.
Q4. Are New Surplus panels genuine ABB products?
Yes. New Surplus units are unused original ABB products stored under controlled environmental conditions. Each panel is inspected for display quality, touchscreen operation, and physical condition before shipment.
Q5. Can I install a replacement without changing the PLC program?
Yes. In most cases, replacing the HMI does not require PLC logic changes. However, the original HMI application must be downloaded to the replacement panel before commissioning.
Q6. Is warranty available?
Yes. Both New Surplus and professionally refurbished operator panels are supplied with warranty coverage. Warranty duration depends on the product condition and is confirmed with the quotation.
