Product Introduction & Engineering Value
A machine can continue running even when the HMI fails, but production usually slows dramatically because operators lose process visibility and control. The ABB CP650 was developed for applications where intuitive visualization, reliable operator input, and straightforward PLC communication are essential.

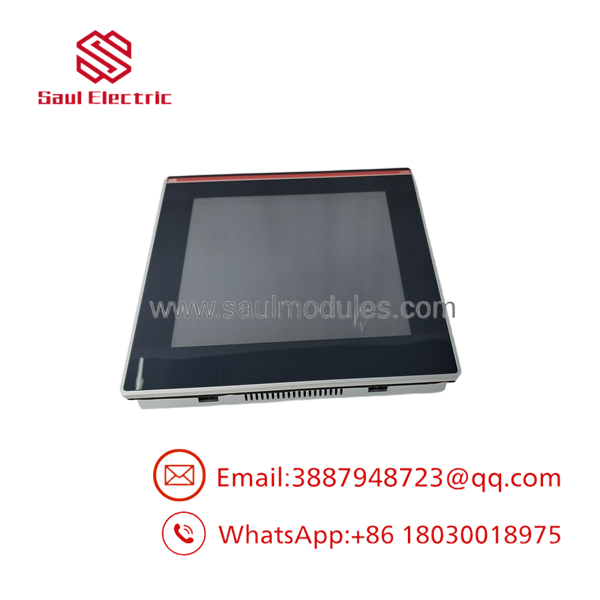

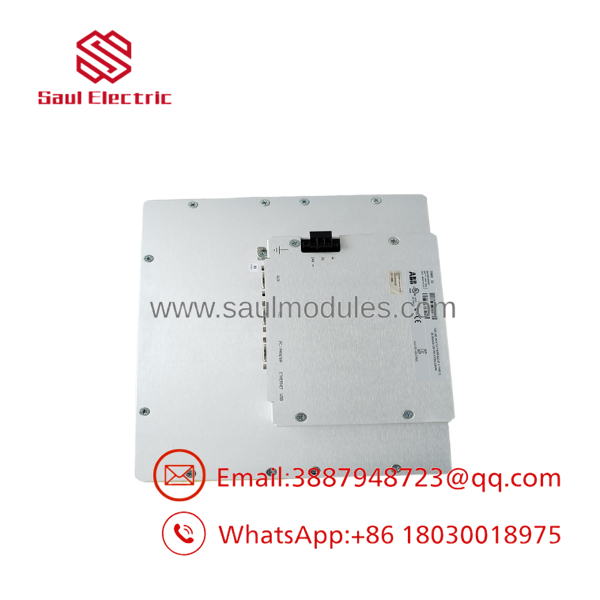

As a member of ABB’s CP600 Series, the CP650 combines a 10.4-inch TFT touchscreen with the Panel Builder 600 engineering environment, allowing engineers to create process graphics, alarm pages, historical trends, and multilingual operator interfaces for AC500 PLCs and many third-party controllers.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | CP650 |
| Article Number | 1SAP550100R0001 |
| Product Family | CP600 Series |
| Display Size | 10.4 inches |
| Resolution | 800 × 600 (SVGA) |
| Display Type | TFT Color LCD (64K colors) |
| Touchscreen | Analog resistive |
| Processor | ARM Cortex-A8, 600 MHz |
| Operating System | Microsoft Windows CE 6.0 |
| Engineering Software | ABB Panel Builder 600 |
| Front Protection | IP66 |
| Rear Protection | IP20 |
| Power Supply | 24 VDC |
| Communication | Serial, USB (Ethernet available on CP650-WEB variant) |
| Backlight Life | Approximately 50,000 hours (typical) |
| Operating Temperature | 0°C to +50°C |
Field Application & The “Trench” Experience
A beverage bottling plant experienced repeated production interruptions because operators could no longer acknowledge alarms or select production recipes from an aging HMI. The PLC continued controlling the equipment correctly, but the deteriorating touchscreen caused frequent operator input failures.
Rather than replacing the PLC or modifying the control software, the maintenance team installed a replacement ABB CP650, restored the existing Panel Builder 600 project, and returned the production line to service during the scheduled maintenance window. No PLC logic changes were required.
Typical applications include:
- High-speed packaging and palletizing systems
- Water and wastewater treatment operator stations
- Conveyor and material handling systems
- HVAC building automation
- Food processing production lines
- AC500 PLC visualization and diagnostics
Transparency SOP: QA & Testing
Before shipment, every CP650 is subjected to a documented quality verification process.
- Verify the ABB article number and hardware revision.
- Inspect the touchscreen, LCD panel, and enclosure for cosmetic or mechanical damage.
- Test display brightness, pixel integrity, and backlight performance.
- Verify touchscreen calibration across the complete display area.
- Test USB and serial communication interfaces.
- Perform continuous power-on burn-in before packaging in ESD-safe protective materials.
Refurbished units receive additional touchscreen response and display stability testing prior to release.
The Veteran’s Tech Trap Guide
⚠️ Back up the HMI application before removing the panel.
Many older installations contain project files that no longer exist elsewhere. Upload the application from the original panel whenever possible before replacement.
⚠️ Don’t confuse the with the -WEB.
The standard is engineered for Panel Builder 600 applications, while the is intended for web visualization using an AC500 web server. Although the hardware is similar, the intended software environments differ.
PRO TIP:
If portions of the touchscreen become unresponsive, perform a calibration check before replacing the hardware. Misalignment caused by long-term use can resemble touchscreen failure.
⚠️ Check the backlight before replacing the entire panel.
On older HMIs, a dim display is often the result of normal backlight aging rather than a failed processor or communication interface. Measuring display brightness can help determine whether complete replacement is necessary.
Dynamic FAQ
Q1. What is the primary function of the ABB ?
The is a 10.4-inch industrial HMI that provides machine visualization, operator control, alarm management, recipe handling, and process monitoring for industrial automation systems.
Q2. Which engineering software is used with the ?
The panel is configured using ABB Panel Builder 600, which is integrated into the ABB Automation Builder software suite.
Q3. What is the display resolution?
The features an 800 × 600 SVGA TFT color display with an analog resistive touchscreen and 64K-color capability.
Q4. Are New Surplus panels genuine ABB products?
Yes. New Surplus inventory consists of unused original ABB products stored in controlled warehouse conditions. Each panel is inspected for display quality, touchscreen functionality, and connector integrity before shipment.
Q5. Is the compatible with AC500 PLCs?
Yes. The is commonly deployed with ABB AC500 PLCs and supports integration with numerous industrial controllers through the communication drivers available in Panel Builder 600.
Q6. Is warranty available?
Yes. Both New Surplus and professionally refurbished ABB operator panels are available with warranty coverage. Warranty terms depend on the supplied condition and are specified in the sales quotation.
