Description
Product Introduction

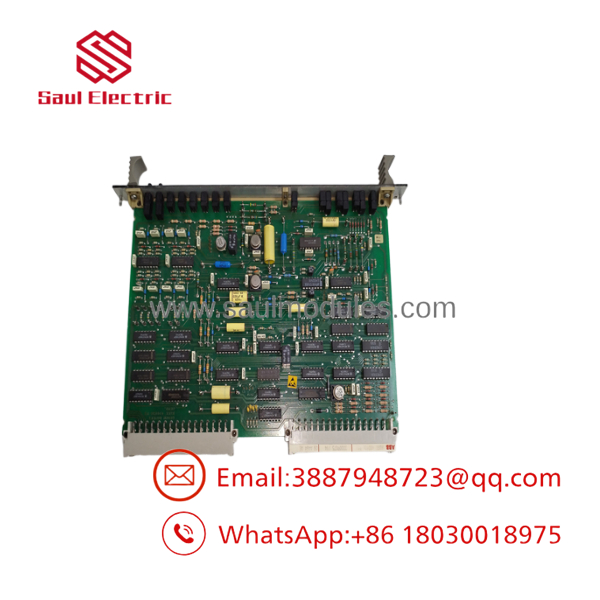

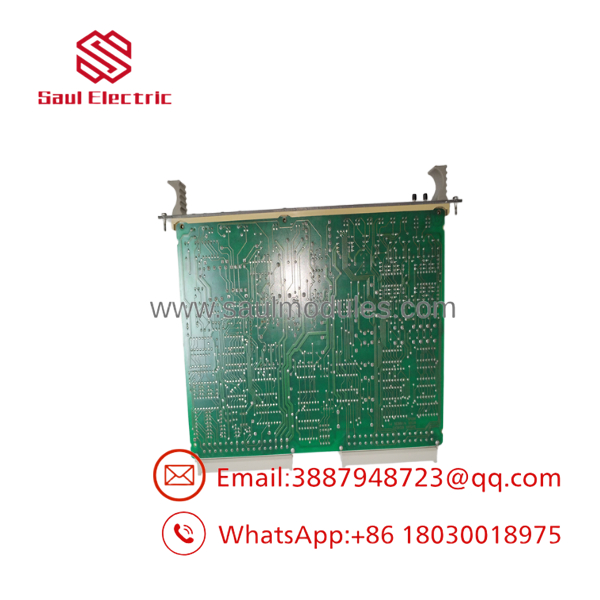

The ABB CSA464AE (HIEE400106R0001) is a specialized controller and analog interface board designed for ABB’s Procontrol P14 (and legacy BBC Procontrol OPC) distributed control system (DCS) architectures. Installed in power plant turbine control systems, the CSA464AE board processes real-time field signals, executes critical control loops, and interfaces with station-level communications.
Engineers rely on the CSA464AE for power generation and heavy industrial control drops where precise analog processing and high isolation are required. It bridges field transmitters and actuator outputs to the central Procontrol bus system, maintaining continuous monitoring and speed/load regulation for gas, steam, and hydro turbines.
Key Technical Specifications
| Parameter | Specification |
| Full Part Number | CSA464AE (Order Code: HIEE400106R0001 / HIEE400106R1) |
| Alternative Markings | CS A464 AE |
| System Architecture | ABB Procontrol P14 / Procontrol OPC |
| Product Type | Analog Processing / Interface Controller Board |
| Port Isolation | 220 V DC |
| Mounting Style | Procontrol P14 subrack Eurocard slot insertion |
| Cooling | Natural convection within subrack enclosure |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Weight | ~0.5 kg to 1.0 kg |
Application Scenarios & The “Trench” Experience
A combined-cycle power station in Germany experienced a fault alarm on a gas turbine governing rack when an analog input channel on a legacy controller board began drifting, causing erratic fuel valve positioning. The plant instrumentation team traced the signal degradation to aged componentry on the active CSA464AE card. After halting the control loop, the technician pulled the faulty card, verified jumper configurations on the replacement CSA464AE unit, and inserted it into the Procontrol P14 rack. The subrack bus re-established clean signal processing, restoring precise valve actuation and enabling the turbine to re-synchronize to the grid without an extended unit outage.
- Thermal & Gas Power Generation: Manages steam/gas turbine governing loops, valve position feedback, and speed/load control.
- Hydroelectric Facilities: Handles water inlet valve actuation monitoring and turbine speed sensing inside Procontrol P14 automation drops.
- Heavy Process Automation: Connects specialized high-voltage field instrumentation to legacy DCS backplanes with high channel isolation.
Transparency SOP: Quality Assurance & Testing
Every module undergoes strict physical and electrical screening prior to anti-static packaging:
- Visual & Component Inspection: Multi-pin backplane edge connectors, multi-layer traces, and onboard ICs are inspected under magnification for micro-cracks, thermal discoloration, or contact oxidation.
- Logic Rail & Power Test: The board is installed on a test backplane to verify internal DC-DC supply regulation and stable logic startup.
- Analog Channel & Bus Test: Simulated analog signals are passed through the input/output channels to verify signal conversion accuracy, zero channel crosstalk, and proper bus communications with host Procontrol processors.
- Isolation & Thermal Burn-In: Voltage isolation checks are performed across field-to-bus terminals to ensure signal protection thresholds are fully met.
- ESD Cleaning & Protective Packaging: Contact pins are cleaned with static-safe solvent, sealed inside thick static-shielding bags, and packed with fresh moisture-absorbing desiccant.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Procontrol P14 Card Insertion & Latching: When installing the into a live or powered Procontrol subrack, make sure to align the card guides carefully. Forcing the board at an angle can bend the gold-plated multi-pin backplane header pins, causing hard bus faults across the entire subrack.
❗ Jumper & Hardware Address Matching: Check for onboard hardware DIP switches or solder jumpers on the original card before removal. The replacement must match the exact hardware address and analog range configuration of the failed unit to function correctly on the Procontrol bus.
⚠️ ESD Sensitivity on Legacy Cards: Older DCS circuit boards like the contain sensitive CMOS components that are highly susceptible to static discharge. Technicians must wear a grounded wrist strap when handling the card and store it strictly in static-shielding packaging.
Frequently Asked Questions (FAQ for Conversion)
Q: What system is the ABB designed for?
A: The (HIEE400106R0001) is designed primarily for ABB / BBC Procontrol P14 and Procontrol OPC control systems used in power generation and turbine control.
Q: Is the still manufactured by ABB?
A: No. The Procontrol P14 series and modules are in legacy/discontinued lifecycle status. Replacements are supplied via certified New Surplus and fully reconditioned, bench-tested stock.
Q: Are HIEE400106R0001 and the same product?
A: Yes. (or CS A464 AE) is the model name, while HIEE400106R0001 (or HIEE400106R1) is the exact ABB part/order code.
Q: What warranty is provided with this module?
A: All (HIEE400106R0001) modules—whether New Surplus or Refurbished—include a full 12-month advance replacement warranty.
