Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | DI04 |
| Product Type | Digital Input Module |
| System Platform | ABB Symphony® Plus SD Series I/O |
| Digital Input Channels | 16 |
| Input Signal | 48 VDC Digital Inputs |
| Channel Isolation | Individual channel-to-channel isolation |
| Isolation Voltage | 1,500 V galvanic isolation (1 minute) |
| Module Power Supply | 24 VDC ±10% |
| Power Consumption | 66 mA typical, 85 mA maximum |
| Maximum Field Cable Length | 600 m (1,968 ft) |
| Operating Temperature | -40 °C to +70 °C |
| SOE Support | No (use DI01 for Sequence of Events applications) |
| Status Indicators | Run, Fault, and individual channel LEDs |
Product Introduction
The ABB DI04 is a 16-channel digital input module for the ABB Symphony® Plus SD Series I/O platform. It accepts 48 VDC digital signals and provides individual galvanic isolation for every input channel, improving signal integrity in electrically noisy industrial environments.
Designed for power generation, process automation, water treatment, and industrial control systems, the DI04 offers configurable debounce timing, front-panel diagnostics, and straightforward integration with Symphony Plus controllers. It is an excellent OEM replacement for maintaining existing SD Series installations.

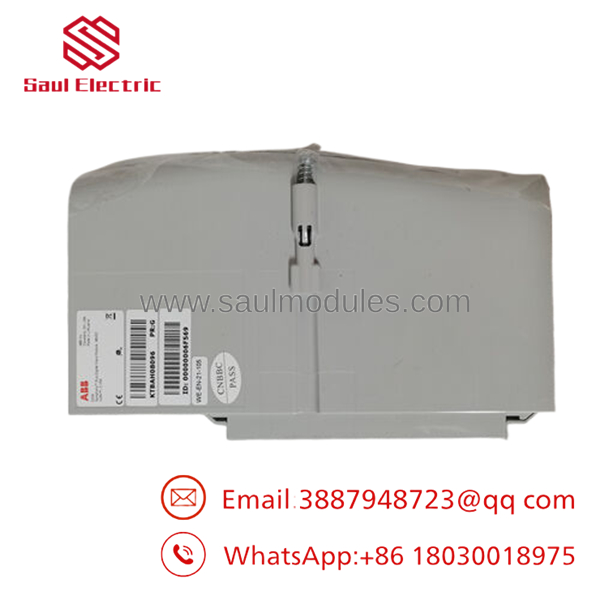

- DI04

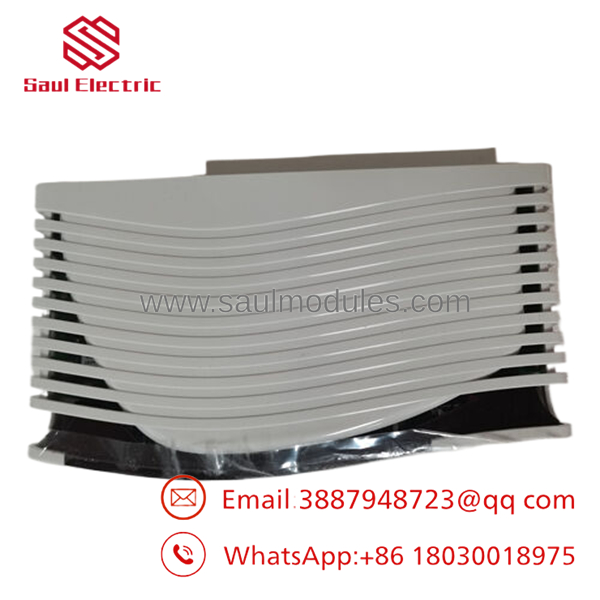

- DI04
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| All inputs inactive | 24 VDC module power missing | ✅ High | Measure module power terminals | Restore power before replacing the module |
| Single input always OFF | Open field wiring or failed sensor | ❌ Low | Measure 48 VDC at the input terminal | Inspect field device and wiring first |
| Multiple inputs unstable | Electrical noise or incorrect debounce setting | ⚠️ Medium | Review debounce configuration and cable routing | Adjust settings and improve grounding |
| Module not detected | Backplane communication problem | ✅ High | Reseat the module and inspect base connectors | Verify rack and controller communication |
| One channel permanently ON | Shorted input wiring | ⚠️ Medium | Disconnect field wiring and monitor input status | Repair field wiring if the condition clears |
| Fault LED illuminated | Internal module diagnostics | ✅ High | Review controller diagnostic messages | Replace the module if hardware failure is confirmed |
Service Note
The DI04 rarely fails in normal service. Most field issues are caused by external wiring, incorrect field voltage, or poor terminal connections.
Before replacing the module:
- Verify the 24 VDC module supply.
- Measure the 48 VDC input signal at the affected terminal.
- Inspect the terminal base for loose or oxidized connections.
- Check controller diagnostics for channel-specific faults.
- Test the input with a known-good field signal.
❗ Veteran Tip: A loose terminal on a 48 VDC input can look exactly like a failed module. Tighten and verify every field connection before ordering a replacement.
Frequently Asked Questions (FAQ)
Q1. What is the ABB used for?
The is a 16-channel digital input module for ABB Symphony Plus SD Series I/O systems. It monitors field devices such as limit switches, pushbuttons, relay contacts, and status signals operating at 48 VDC.
Q2. Does the support Sequence of Events (SOE)?
No.
The does not support SOE applications. If Sequence of Events recording is required, ABB recommends using the DI01 module instead.
Q3. Are the input channels isolated?
Yes.
Each of the 16 input channels is individually galvanically isolated, reducing ground-loop issues and improving reliability in high-noise industrial environments.
Q4. Can I hot-swap the ?
This depends on your Symphony Plus system configuration and maintenance procedures. Even if the rack supports module replacement, always follow ABB’s service guidelines and plant lockout/tagout procedures before removing or installing I/O modules.
Q5. Why do many plants purchase New Surplus modules?
Many facilities maintain spare I/O modules to minimize downtime. New Surplus modules are genuine ABB components that have never been installed but come from excess inventory, offering OEM quality with shorter lead times than special factory orders.
Q6. What should I verify before ordering?
Confirm:
- Model:
- System: ABB Symphony® Plus SD Series I/O
- Input Voltage: 48 VDC
- Number of Channels: 16
- Compatible terminal base (MTU)
- Controller and rack compatibility
Matching the installed hardware and terminal base ensures a direct replacement.
Q7. What warranty is typically available?
Most industrial automation suppliers provide a 12-month warranty on New Original or professionally inspected New Surplus modules. When sourcing legacy hardware, request functional test documentation and photos before shipment whenever possible.
