ABB DI651 3BHT300026R1 32-Channel Digital Input Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB DI651 3BHT300026R1 is a 32-channel digital input module for the ABB S600 I/O platform. It acquires 48 VDC field signals from switches, relays, limit switches, and other discrete devices while providing isolated signal processing for reliable industrial automation applications.

Purchasing this module as New Surplus provides genuine OEM hardware without the uncertainty of refurbished electronics. For facilities operating long-life ABB automation systems, maintaining buffer stock, reducing lead time variability, and implementing vendor consolidation help lower Total Cost of Ownership (TCO) while minimizing the risk of production downtime caused by obsolete spare parts.

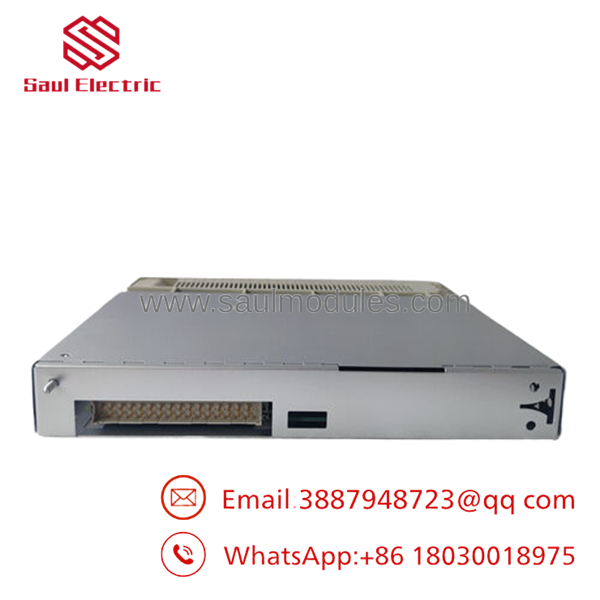

DI651

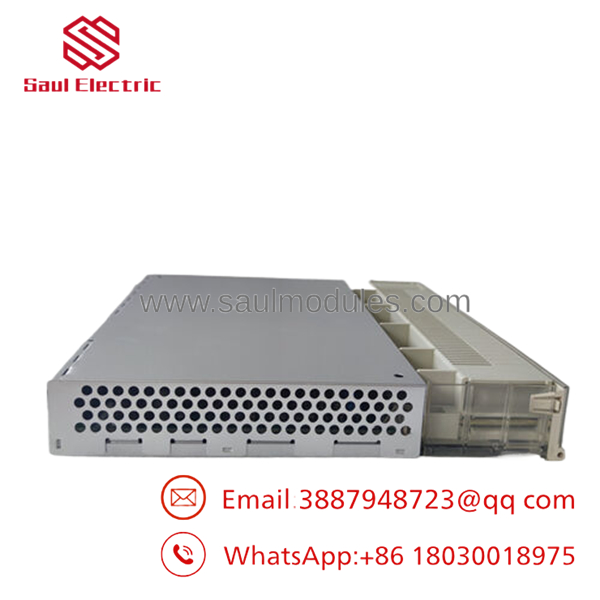

DI651

Installation & Configuration Guide

Stage 1 – Pre-Installation (Prep & Safety)

1. Perform Lock-Out/Tag-Out (LOTO).
2. Isolate all control cabinet power.
3. Wear a grounded ESD wrist strap.
4. Photograph:
   • Terminal wiring
   • Rack slot position
   • Channel assignments
5. Save controller configuration before replacement.

Stage 2 – Removal

1. Confirm all power has been removed.
2. Disconnect field wiring carefully.
3. Release the retaining mechanism.
4. Remove the module evenly to avoid damaging the backplane connector.
5. Inspect the base unit for bent pins or contamination.

Stage 3 – Installation (Clone & Seat)

1. Verify the replacement part number.
2. Install the module into the original slot.
3. Ensure the connector is fully seated.
4. Reconnect all field wiring according to the recorded documentation.
5. Confirm secure mechanical installation.

Stage 4 – Power-On & Testing

1. Restore system power.
2. Verify module startup LEDs.
3. Confirm all digital input channels respond correctly.
4. Test Sequence of Events (SOE) logging if enabled.
5. Validate communication with the controller before returning the process to production.

Firmware/Software Versions & Upgrade Notes

• Verify compatibility with the installed ABB S600 I/O controller and engineering software.
• Back up controller configuration before replacing the module.
• Maintain identical I/O addressing to avoid application changes.
• Avoid performing firmware upgrades during hardware replacement unless specifically required.
• Verify SOE and pulse-capture functionality after commissioning.
• Document firmware revisions for future maintenance and troubleshooting.

Frequently Asked Questions (FAQ)

Q1. Is this module genuinely new?

Yes. This product is supplied as New Original / New Surplus inventory. It is not used, repaired, or refurbished. Every unit undergoes quality verification before shipment.

Q2. Why is the price lower than purchasing directly from ABB?

New Surplus inventory originates from surplus OEM supply channels, project cancellations, or excess inventory. It provides genuine OEM hardware while avoiding full factory pricing and the risks associated with refurbished equipment.

Q3. Is the DI651 approaching End of Life?

The DI651 belongs to a mature ABB I/O platform that remains widely installed in process industries. Because market availability is gradually declining, maintaining 1–2 units of buffer stock and planning a last-time-buy strategy is recommended for critical systems.

Q4. Can the module be replaced while the system is energized?

Follow the installation procedures approved for your specific ABB control system. Unless the architecture explicitly supports online replacement, isolate system power before removing or installing the module to prevent communication faults or equipment damage.

Q5. Will replacing the affect my application program?

The application logic remains in the controller. However, I/O mapping, addressing, and hardware configuration should be verified after replacement to ensure normal operation.

Q6. What quality inspections are completed before shipment?

Each New Surplus module undergoes:

• OEM part number verification
• Serial number traceability
• Visual inspection
• Connector integrity inspection
• Functional verification where applicable
• ESD-safe packaging
• Final QC approval

Q7. What spare parts strategy is recommended?

For maximum plant reliability:

• Maintain as on-site buffer stock for critical production lines.
• Use vendor consolidation to simplify procurement.
• Share inventory across multiple plants where practical.
• Monitor lifecycle status and execute a last-time-buy before remaining global inventory becomes scarce, reducing lead time variability and lowering long-term Total Cost of Ownership (TCO).
