Description
Core Product Summary (Brand / Model / Key Attributes)
The ABB DSQC322 is a module belonging to the DSQC product family used in ABB industrial robot controllers. DSQC-series boards and units form part of the electronic hardware for ABB robot systems (including generations such as S4, S4C, and related platforms).
Public technical documentation specific to the exact designation DSQC322 is limited. Secondary industrial spare-parts listings identify the unit as an ABB robotics control module, but independently verified electrical ratings, I/O counts, or interface details from primary ABB sources have not been located for this order number.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model / Order number | DSQC322 |
| Product family | DSQC series |
| Application context | ABB industrial robot controllers |
No additional verified electrical, mechanical, or performance specifications are available from primary manufacturer sources for this exact part number.
Detailed Product Overview
The ABB DSQC322 is a printed-circuit-board or modular unit from the DSQC family employed in ABB robot control systems. DSQC modules perform various functions within the controller architecture, including digital or analog I/O handling, communication interfacing, memory expansion, drive control, or power distribution, depending on the specific board type and controller generation.
Because detailed public datasheets or application manuals that specifically document the DSQC322 have not been identified, all functional characteristics, connector pin-outs, supply requirements, and configuration procedures must be obtained from the original ABB documentation supplied with the host robot controller or from authorized ABB support channels.
When replacing or specifying the DSQC322, the complete order number (including any revision or article-number suffix present on the physical unit) must be matched exactly. Compatibility is determined solely by the robot controller model and software version in which the module is installed. Physical appearance alone does not guarantee functional interchangeability.
System Compatibility & Integration Requirements
No public system-level compatibility matrix or interface specification is available for the DSQC322. Integration is determined solely by the host ABB robot controller configuration. Any replacement must be performed according to the original equipment documentation and under the appropriate electrical and environmental conditions required for the installation.

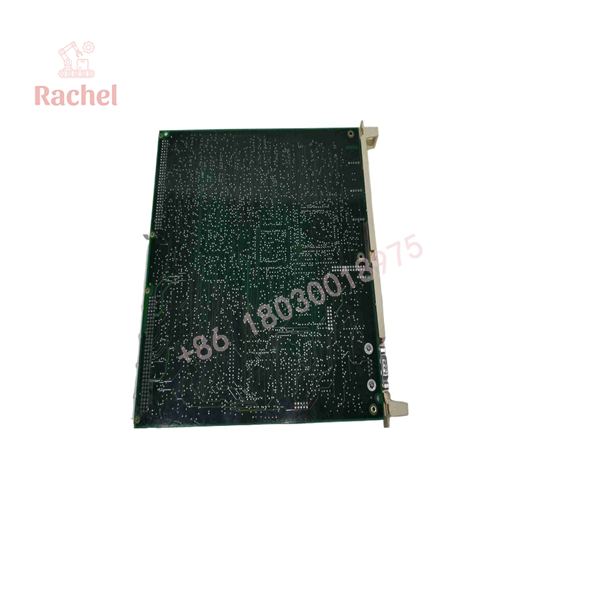

DSQC322

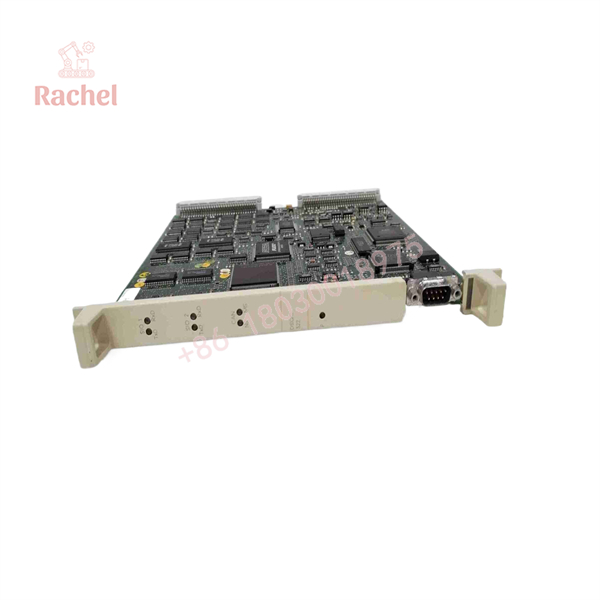

DSQC322
Engineering Selection Highlights
- Confirm the exact part number DSQC322 and any revision or article-number markings against the installed unit or the system parts list.
- Verify compatibility with the specific ABB robot controller generation (for example S4, S4C, or related platforms) before procurement.
- Obtain the applicable ABB product or service manual for the host controller before installation or troubleshooting.
- Treat the module as a system-specific spare; follow ABB-recommended handling, storage, and electrostatic-discharge precautions for electronic boards.
- Use only genuine ABB replacement parts to maintain system integrity and safety certifications.
FAQ
What is the ABB DSQC322?
It is a module from the DSQC product family used in ABB industrial robot controllers.
Is detailed technical data publicly available?
No comprehensive public datasheet or instruction manual specific to the DSQC322 has been located. All installation, configuration, and performance requirements are defined in the proprietary ABB documentation for the host robot controller.
What should be checked before ordering a replacement?
Exact part-number match (including any revision), confirmation of the controller model and software version, and verification through the equipment owner’s original documentation or authorized ABB support channel.
