ABB DSTS104 Trigger Pulse Amplifier Card

Description

Key Technical Specifications

• Product Type: Trigger pulse amplifier card.
• ABB Type Designation: DSTS104.
• Order Number: 3BSE007285R1.
• Function: Pulse triggering / signal amplification.
• Application: ABB control and drive-related systems.
• Form Factor: Board-level module.
• Availability: Limited, legacy spare.
• Condition: New surplus or refurbished tested, depending on inventory.

Product Introduction

The ABB DSTS104 is a trigger pulse amplifier card used in ABB control-system applications. It is identified by order number 3BSE007285R1 and is typically sourced as a legacy spare for installed ABB equipment.

This kind of part is usually bought to keep an existing control system running without changing the rack or control logic. The key check is exact model and revision matching before installation, because legacy ABB cards are rarely interchangeable without confirming the system family and board role first.

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Time estimate: 5-8 minutes.

1. ⚠️ Safety First: Notify operations of downtime, verify safe state, lock out/tag out power, and wait at least 5 minutes for capacitor discharge.
2. Gather tools: ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
3. Back up the system configuration, document any wiring and connector positions, and photograph the board orientation and label tags.
4. Verify the replacement part is the exact DSTS104 / 3BSE007285R1 version before opening the package.

Stage 2: Removing the Old Module

Time estimate: 5 minutes.

1. Remove the access cover or panel.
2. Label and disconnect the wiring carefully; do not force connectors.
3. Release the board from its mounting position and pull it straight out.
4. Inspect the connectors, backplane, and board area for dust, corrosion, bent pins, or heat damage.
5. ⚠️ Note: Keep the old board until the replacement is fully commissioned.

Stage 3: Installing the New Module

Time estimate: 8-10 minutes.

1. Put on the ESD strap and confirm the model and order number match the removed unit.
2. Configuration clone is critical: copy the exact wiring layout, connector orientation, and any jumpers or hardware settings from the old photos.
3. Seat the board fully and secure it in place.
4. Reconnect all wiring using the original labels and routing.
5. Check the self-list: [] settings match, [] wiring secured, [] board seated, [] fasteners locked.

Stage 4: Power-On & Testing

Time estimate: 8-12 minutes.

1. Pre-power check: use a multimeter to confirm there are no shorts and that the supply is correct.
2. Power up the rack or cabinet first, not the field devices.
3. Verify any status indicators if present.
4. Confirm the system recognizes the board and the pulse trigger function responds correctly.
5. Run a functional test on the related trigger path or control sequence.
6. ⚠️ Troubleshooting Note: If triggering does not respond, check wiring, connector seating, board compatibility, and the surrounding control logic before assuming a bad card.

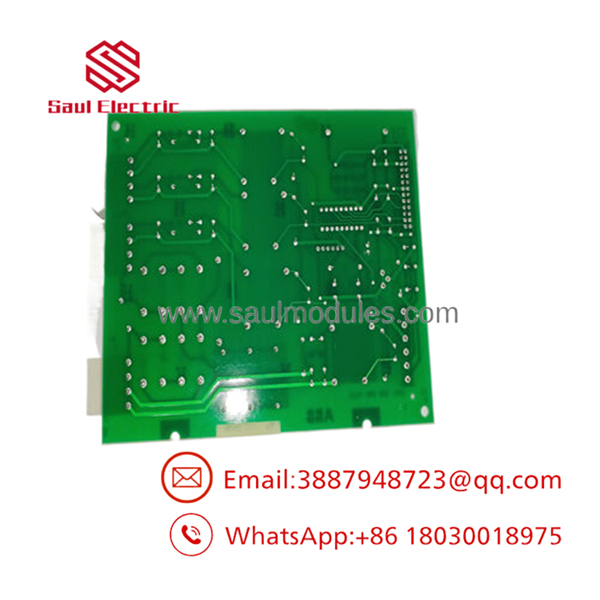

DSTS104

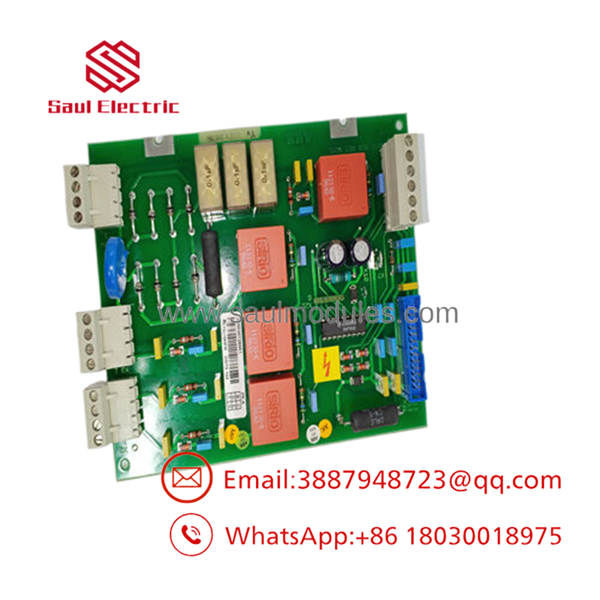

DSTS104

Frequently Asked Questions

Can this card be hot-swapped under power?
No. Treat it as a powered-down replacement unless the exact ABB documentation says otherwise. With older control cards, live removal is how you create avoidable downtime.

Is the DSTS104 obsolete?
Yes, it is a legacy ABB spare with limited stock availability. In practice, that means surplus or refurbished units are the normal buying path.

What is the direct replacement if this card is unavailable?
There is no safe generic substitute. The replacement has to match the same ABB system family, board function, and connector arrangement. Verify that before buying.

Will I lose my programming when I replace the card?
Usually no, because this is a signal or trigger card rather than the main controller. The real risk is mismatch in wiring or board role, so back up the system first.

Why is your price lower than ABB list price?
Because this part is usually sourced from surplus channels or refurbished inventory instead of fresh OEM production. That is normal for discontinued industrial hardware, but condition and warranty still matter.

What condition should I expect?
Most available stock is new surplus or refurbished tested. Ask for photos, test status, and packaging details before you commit.

What is the most common installation mistake?
Skipping the wiring photo and connector check before removal. That small mistake can turn a quick swap into a long troubleshooting session.
