ABB FI840F AC 800F Foundation Fieldbus HSE Module

Description

Product Introduction & Engineering Value

Fieldbus problems are often blamed on field instruments, but communication bottlenecks frequently originate at the network interface. A failed or unstable fieldbus module can interrupt communication with dozens of devices while the controller itself continues operating normally.

The ABB FI840F (3BDH000033R1) is a Foundation Fieldbus High-Speed Ethernet (FF/HSE) communication module developed for the ABB Freelance AC 800F controller platform. Acting as an FF/HSE Master, it provides deterministic communication between the controller and Foundation Fieldbus devices while supporting centralized engineering through Control Builder F.

Technical Specifications

Field Application & The “Trench” Experience

A refinery experienced intermittent communication losses affecting multiple Foundation Fieldbus transmitters during routine operation. Instrument technicians verified that the transmitters remained powered and healthy, yet process values periodically disappeared from the operator stations.

Network diagnostics traced the issue to an aging FI840F module whose communication errors increased under sustained network traffic. After replacing the module and restoring the existing controller configuration, all FF/HSE segments resumed stable operation without modifying the field device database or control strategy.

Typical applications include:

• Continuous reactor process control using Foundation Fieldbus instrumentation
• Tank farm level and pressure monitoring
• Boiler combustion control with distributed field transmitters
• Chemical dosing systems integrated through FF/HSE
• Pulp and paper process automation using AC 800F controllers

Transparency SOP: QA & Testing

Each FI840F module is verified through a documented inspection process before shipment.

1. Confirm the ABB part number and hardware revision.
2. Inspect the PCB, Ethernet connector, and backplane interface for mechanical damage.
3. Verify power-up status and onboard diagnostic indicators.
4. Test FF/HSE communication using a compatible AC 800F test platform whenever available.
5. Inspect connector integrity and communication stability under continuous operation.
6. Package the module in ESD-safe protective materials with industrial-grade shock protection.

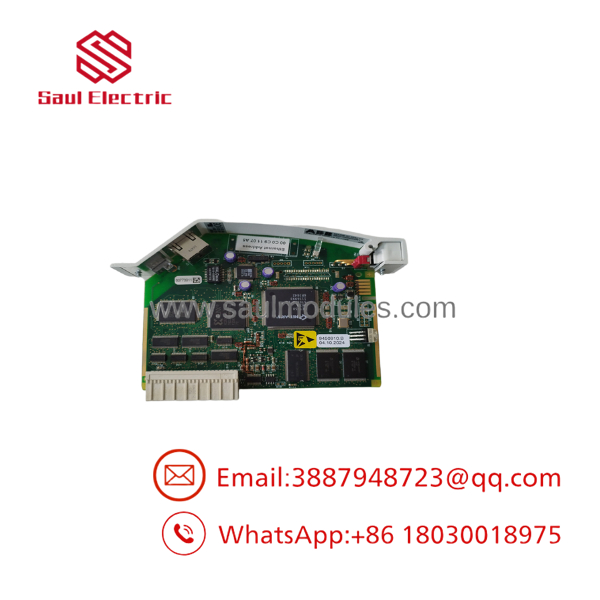

FI840F

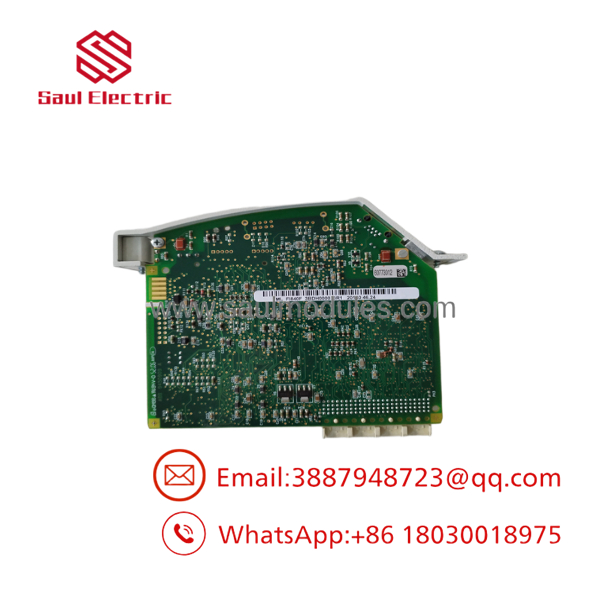

FI840F

The Veteran’s Tech Trap Guide

⚠️ Verify the controller software version before installation.

The requires Control Builder F V7.1 SP2a or later. Installing the module in an older engineering environment may prevent proper configuration or commissioning.

⚠️ Don’t assume every FF communication fault is caused by the module.

Foundation Fieldbus issues are frequently traced to:

• Segment power supply instability
• Incorrect network termination
• Excessive cable length
• Faulty field device couplers
• Duplicate device addresses

Replacing the should be one step in a structured communication diagnostic process.

PRO TIP:

Before replacing the module, save the complete AC 800F project and fieldbus configuration database. Restoring a verified configuration significantly shortens commissioning time and minimizes communication errors after startup.

⚠️ Check controller compatibility.

The is intended for AC 800F systems using PM802F or PM803F controllers. Always verify hardware compatibility against the installed controller before ordering a replacement.

Dynamic FAQ

Q1. What is the primary function of the ABB ?

The serves as a Foundation Fieldbus High-Speed Ethernet (FF/HSE) Master, connecting ABB AC 800F controllers with Foundation Fieldbus networks for deterministic communication with field devices.

Q2. Which ABB controllers support the ?

The module is designed for ABB AC 800F systems using PM802F or PM803F controller modules. A compatible version of Control Builder F is also required.

Q3. Does the communicate directly with Foundation Fieldbus devices?

Yes. As an FF/HSE Master, the enables communication between the AC 800F controller and Foundation Fieldbus devices connected through the FF/HSE network architecture.

Q4. Are New Surplus modules genuine ABB products?

Yes. New Surplus inventory consists of unused original ABB hardware stored under controlled warehouse conditions. Each module is inspected for identification, connector integrity, and basic functional operation before shipment.

Q5. Can I replace an without modifying the controller application?

In most cases, yes. If the replacement module has the correct hardware revision and the existing Control Builder F project is retained, application logic generally remains unchanged. Communication should still be verified during commissioning.

Q6. Is warranty available?

Yes. Both New Surplus and professionally refurbished ABB modules are available with warranty coverage. Warranty terms depend on the product condition and are confirmed with the quotation.
