Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | HIEE300766R0005 |
| Model Code | GDB021BE05 (Also replaces legacy HIEE300766R0004 variants) |
| System Compatibility | AC 800M, AC 800PEC, MNS 3.0 Switchgear, and High-Voltage Excitation/Rectifier controllers |
| Power Supply Input | 24 V DC (±10%) nominal control voltage |
| Relay Configuration | Multi-channel changeover contact layout (typically 4 heavy-duty channels) |
| Switching Capacity | Up to 8 A at 250 V AC (High-power handling) |
| Galvanic Isolation | Reinforced dielectric insulation up to 4 kV AC between control electronics and I/O |
| Operating Temperature | −25∘C to +70∘C |
| Product Dimensions | 120 mm (W) x 200 mm (H) x 80 mm (D) |
| Net Weight | 0.90 kg |
| Country of Origin | Sweden |
Product Introduction
The ABB GDB021BE05 (part number HIEE300766R0005) is a highly specialized, dual-purpose industrial controller module. Depending on the system topology, it is deployed either as a Gate Control Board within high-voltage power electronics (such as excitation systems and large-scale rectifiers/inverters) or as a robust Digital Relay Output Module in critical automation processes. In power conversion setups, the board precisely coordinates timing pulses to trigger power semiconductor components like IGBTs or thyristors, converting AC currents to stable DC with minimal transmission loss.
In broader Distributed Control Systems (DCS) and PLC environments, the GDB021BE05 serves as a high-integrity signal interface. Equipped with robust changeover relays rated for up to 8 A, it directly manages high-power field actuators (like contactors, solenoids, and warning sirens) without needing intermediate amplification relays. Built with a 4 kV dielectric isolation barrier, it isolates delicate microprocessors (like the AC 800M or AC 800PEC) from massive electrical surges, line noise, and grounding faults common in wind farms, water treatment centers, and heavy steel refineries.

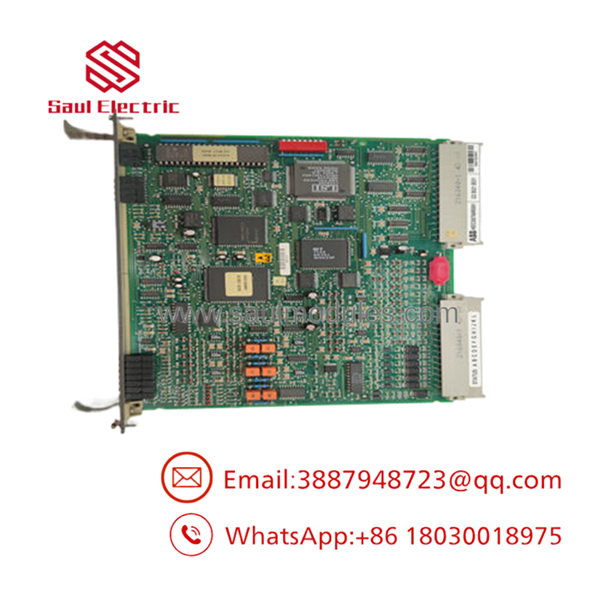

- GDB021BE05 HIEE300766R0005

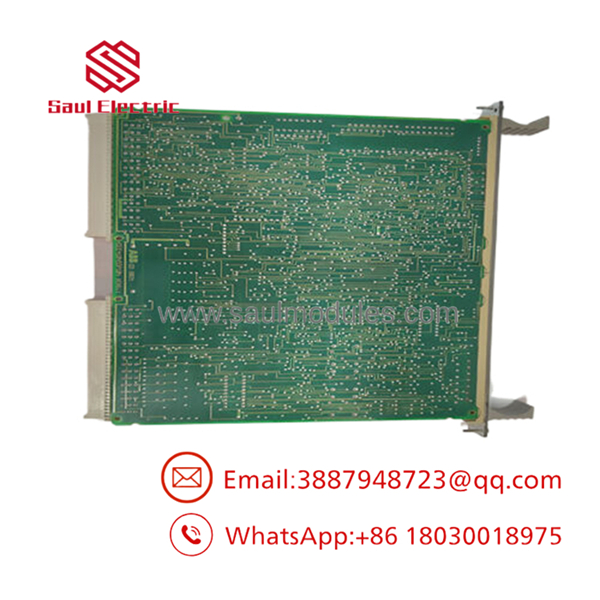

- GDB021BE05 HIEE300766R0005
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Total failure of downstream rectifiers/excitation loops | Power stage input failure or lost gating clock signals | ✅ High | Verify if the status LEDs indicate active running states. Measure the incoming 24 V DC control power across the logic bus pins. | If the logic supply is stable but the gating pulses are absent, the onboard microcircuits are damaged. Replace the GDB021BE05. |
| High-power field actuator does not switch on command | Pitted, welded, or open relay contacts on the output channels | ✅ High | Use a multimeter to check for continuity across the dry contacts when the control software forces a state change. | If the software commands the state change but the dry contacts fail to close, replace the module to avoid unreliable field states. |
| Sporadic “Module Missing” or bus fault alarms | Loose backplane connection or physical slot wear | ✅ Medium | Power down, extract the card, and inspect the gold plating on the edge connector interface for physical scoring or oxidation. | Clean contacts with an electronics-safe solvent and reseat the unit. If the bus interface fails to latch consistently, swap the module. |
| Complete cabinet power dip or tripped circuit breaker | Short circuit within the external field wiring loops | ❌ Low | Isolate the ’s output connectors and test the external solenoid/motor cables for phase-to-ground faults. | Do not condemn the gate board. Troubleshoot and repair the shorted field cables or replace the faulty external actuator coil. |
[!NOTE] Gating adjustments and timing configurations on rectifier setups require specialized high-speed oscilloscopes. Do not alter local circuit configurations without referring to your system’s excitation schematics.
Frequently Asked Questions (FAQ)
Can I use the to replace an older HIEE300766R0004 module?
Yes. The HIEE300766R0005 () is the direct, upward-compatible successor to the legacy HIEE300766R0004 hardware revision. It retains identical physical dimensions, backplane connections, terminal layouts, and electrical properties, allowing for a straightforward hot-plug or replacement without system modifications.
Does this module support hot-swapping while the controller is online?
If deployed as a digital/relay output module within an S800 or similar distributed I/O system, it typically supports hot-swapping, allowing technicians to replace faulty cards without shutting down adjacent processes. However, if used as an active gate control unit on the rectifier side of a live excitation or high-voltage drive system, pulling the board while online will instantly collapse the DC field, causing emergency safety trips. Always verify the process state before removal.
What is the purpose of the 4 kV AC isolation rating?
High-power industrial plants contain significant electrical noise, heavy motor switching spikes, and potential ground-loop voltages. The 4 kV AC isolation barrier physically separates the field-side relay terminals and gating interfaces from the low-voltage microprocessor backplane. If a field circuit suffers a lightning strike or a direct short to a high-voltage line, the isolation barrier sacrifices the ‘s ports to protect the multi-thousand-dollar master controller from being destroyed.
Are there any software or firmware configurations required when installing a new board?
The is primarily a hardware-execution and signal-conditioning unit. It does not carry field-loaded application programs or firmware. All execution parameters, switching logic, and timer parameters are pushed dynamically from the master CPU (such as the AC 800PEC or AC 800M). Once plugged in, the master controller automatically recognizes the card and configures its operating parameters.
Why purchase New Surplus stock rather than buying from factory distribution?
The belongs to a mature/legacy product class, meaning lead times through standard factory channels can stretch to several weeks or months and carry high legacy-support surcharges. Our New Surplus inventory consists of unused, pristine-condition modules in their original packaging, stored in climate-controlled environments and ready for immediate dispatch. Every module is backed by our full 1-year replacement warranty.
