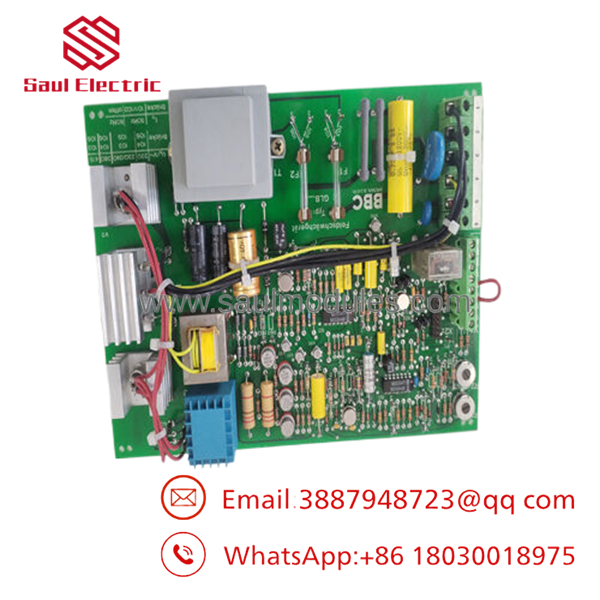

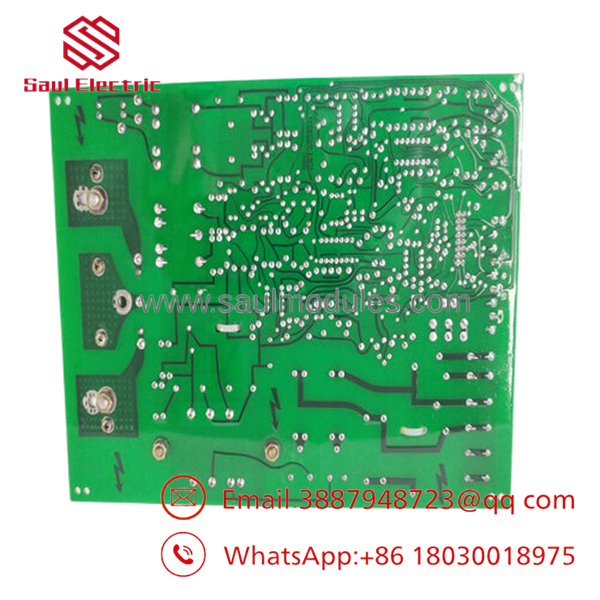

ABB GNT0104500R0002 GLB-0201 Field Weakening Module

Description

3. Key Technical Specifications

4. Product Introduction

The ABB GNT0104500R0002 is a field weakening unit (GLB-0201) designed for use with ABB DC drive systems. It allows operation of DC motors in the field-weakening region to achieve higher speeds while maintaining constant power output.

In field service on DC drive applications, this module provides the necessary control to extend the speed range beyond rated armature voltage. It is a direct replacement in compatible ABB drive configurations where field weakening is required for the application.

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (10-15 minutes) ⚠️ Safety First: Lock out and tag out all power to the drive. Verify zero voltage and discharge capacitors. Tools Required: ESD strap, screwdrivers, multimeter, documentation tools. Data Backup: Record drive parameters, especially field current settings and any custom configurations.

Stage 2: Removing the Old Module (10 minutes)

1. Open drive enclosure and locate the field weakening unit.
2. Label and disconnect associated wiring and cables.
3. Remove mounting hardware.
4. Extract the module carefully. ⚠️ Note: Photograph wiring layout before disconnection.

Stage 3: Installing the New Module (10-15 minutes)

1. Apply ESD protection. Confirm exact match to GNT0104500R0002.
2. Mount the new unit securely.
3. Reconnect wiring following the documented layout and torque specifications.
4. Verify all connections. Self-Checklist: [ ] Wiring matches original, [ ] Module secured, [ ] No loose connections.

Stage 4: Power-On & Testing (15-20 minutes) Pre-Power Check: Verify field circuit resistance and insulation. Power-On Steps:

1. Restore control power and check status.
2. Perform drive initialization.
3. Test field weakening operation at increasing speeds.
4. Monitor field current and motor performance.
5. Run application-specific load test. ⚠️ Troubleshooting Note: Incorrect field current or failure to weaken may indicate wiring errors or parameter mismatch. Recheck settings against drive manual.

GNT0104500R0002

GNT0104500R0002

6. Frequently Asked Questions (FAQ)

Can the field weakening unit be replaced with power applied? No. Full power isolation is required due to high voltages in DC drive field circuits. Improper procedures risk severe injury or equipment damage.

Is GNT0104500R0002 obsolete? This is a spare part for legacy ABB DC drive systems. New Original stock is limited. Confirm exact compatibility with your drive type code before ordering.

What drives use this field weakening unit? Primarily certain ABB/BBC DC drive families. Provide your drive model for verification to ensure proper fit and function.

Will drive parameters need adjustment after replacement? Basic replacement usually maintains existing parameters. However, verify field current settings and perform tuning if motor performance differs. Always save parameters first.

Why is your price competitive? Units are genuine new surplus with full testing. This avoids high costs and long lead times associated with rare factory production for older drive components.

How do I confirm proper operation after installation? Monitor field current reduction at speeds above base, verify stable operation, and check for alarms. Use the drive’s diagnostic tools for field circuit monitoring. Test reports and photos available upon request.
